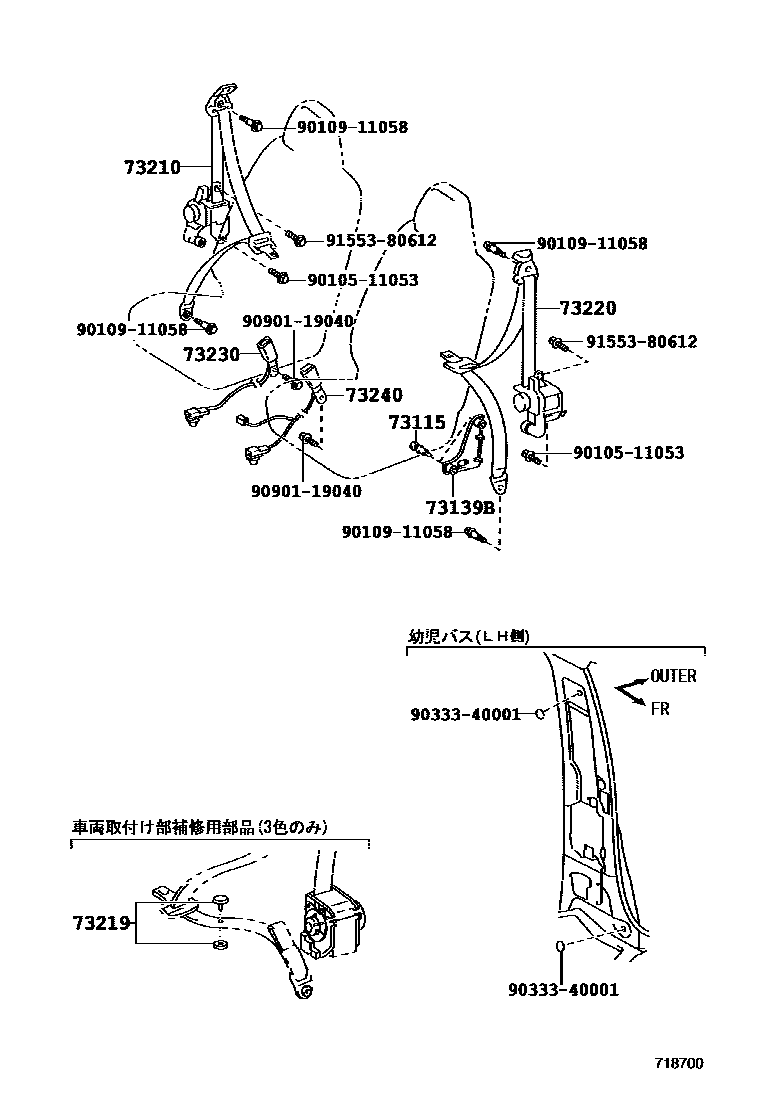

SEAT BELT

0001 1���� ������� 0002 1���� �������(������� 2����� �0003 1�� ������� 0004 1�� �������, ��(�� ���) 0005 1�� ������� 0006 1�� ��� 0007 1�� ��� 0008 1�� ��� 0009 1�� ��� 0010 1������ ������������ �� 0011 1����� ����� ��������� ���

73115CLIP, BELT COMFORT NO.1

main73115-26010-B1×2iTRH200..5F;GDH201,223..IV5201312-202107

DK.GRAY,TRIM1#

73139BCOVER, SEAT BELT ANCHOR

main73139-26030-B1×2iGDH20#..09S201801-202507

DK.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-26734-C0iKDH20#,TRH200..DX; KDH221,TRH221,226;KDH20#,211,223,TRH200,21#,223,224,228,229..02S,05S,10S,14S201312-201712

main73210-26735-C0iGDH20#,TRH200..DX; TRH221,226..CBU;GDH20#,211,22#,TRH200,211,216,223,228..02S,05S,14S201712-201801

main73210-26810-C0iGDH20#,22#,TRH200,214,219,22#..DX,GC,GL201802-202107

BLACK,TRIM1#

main73210-26840-C0iGDH20#..09S; GDH201..SRF..4D..06S;GDH206,TRH200..4D..06S..6FC; GDH221,226,TRH221,226..02S; TRH223,228;GDH22#..CBU202108-202507

main73210-26810-C1iGDH20#,211,TRH200,211,216..SGL201809-202107

main73210-26840-C1iGDH20#,211,TRH200,211,216..SGL202401-202507

73219STOPPER, TONGUE PLATE

main73219-33010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main73219-33020iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

main73219-33030iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-26694-C0iGDH223..IV5201712-202107

BLACK,TRIM1#

main73210-26694-C1iGDH20#,211,TRH200,211,216..SGL202401-202507

BLACK,TRIM13,15,16

main73210-26734-C0supersedes 73210-26693-C0iKDH20#,211,223,TRH200,211,216,223,228..02S,05S,14S; TRH214,219,221,224,226,229..02S,10S201312-201712

main73210-26735-C0supersedes 73210-26694-C0iGDH22#,TRH223,228..CBU,IV5; GDH221,226,TRH214,219,221,224,226,229..02S,10S201712-202107

main73210-26771-C0iTRH214,219,224,229202108

BLACK,TRIM1#

main73220-26573-C0iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201712-202312

BLACK,TRIM1#

main73210-26735-C1iGDH20#,211,TRH200,211,216..SGL201808-202107

main73210-26771iTRH223,228..GL;GDH223..GL..CBU202410-202507

main73210-26771-C1iGDH20#,211,TRH200,211,216..SGL202108-202401

main73220-26531-C0iGDH20#..09S; GDH206..IV5;GDH201..V1..HRF..5D;GDH201..SRF..5D..DX;GDH201..SRF..4D..06S;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH206,TRH221,226..06S;TRH200..SRF..(06S,09S)..6FC;GDH206,TRH200..5D..03S..6FC202108-202507

main73220-26562-C0supersedes 73220-26572-C0iKDH20#,221,TRH200,221,226..DX..(CBU,IV5)201312-201712

main73220-26563-C0×2supersedes 73220-26573-C0iGDH20#..09S201801-202107

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-26240-C0iKDH20#,211,22#,TRH200,21#,22#201312-201712

BLACK,TRIM1#

main73230-26241-C0iTRH200..5F;GDH201,223..IV5201712-202107

BLACK,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-26200-C0supersedes 73230-26250-C0iKDH20#,211,223,TRH200,211,216,223,228..02S,05S,14S; TRH214,219,221,224,226,229..02S,10S201312-201712

main73240-26201-C0supersedes 73230-26251-C0iGDH221,226,TRH214,219,221,224,226,229..02S,10S; TRH223,228;GDH20#,211,22#,TRH200,211,216..05S,14S201712-202507

main73240-26191-C0supersedes 73240-26181-C0iKDH20#,221,TRH200,221,226..DX..(CBU,IV5)201312-201712

main73240-26192-C0supersedes 73240-26182-C0iTRH200..5F;GDH201..IV5201712-202107

9010511053

main90105-11053

9010911058

main90109-11058

9033340001

main90333-40001

9090119040

main90901-19040

9155380612

main91553-80612

12 parts on this diagram · 11 diagrams in section
