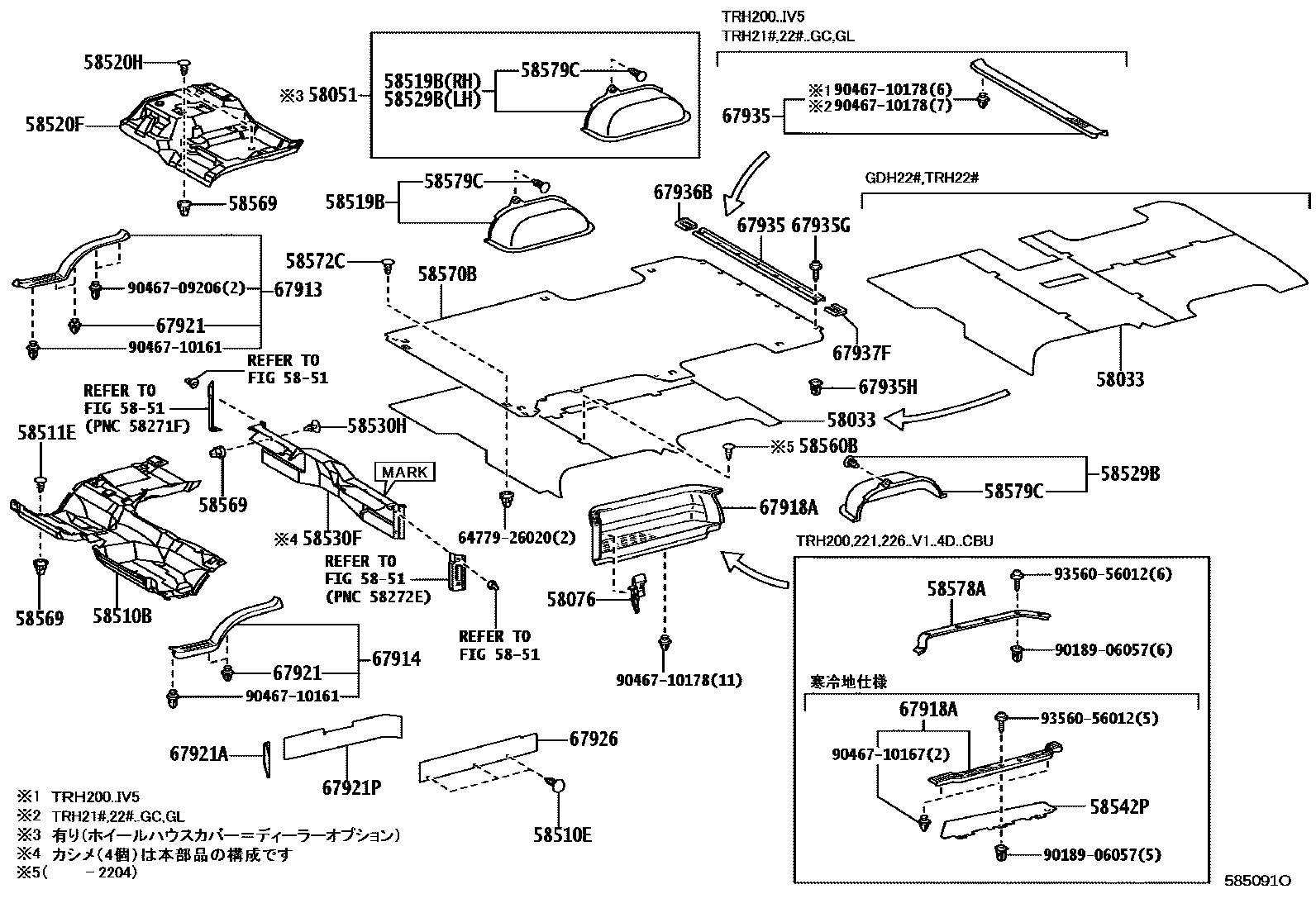

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 15��� ��� 0009 1

58033BOARD SUB-ASSY, REAR FLOOR

main58033-26230iKDH223..GL..CBU;TRH223,228..6FC..GL..CBU201312-201507

main58033-26250iTRH214,219..DX201312-202203

main58033-26260iTRH224,229..CBU201312-202203

main58033-26350iTRH214,219..4D..GL201312-202203

main58033-26570iGDH223,KDH223,TRH223,228..GL..CBU201508-202203

main58033-V3350iGDH223,TRH223,228..DX202204

main58033-V3360iTRH214,219..DX202204

main58033-V3370iTRH224,229202204

main58033-V3410iTRH214,219..4D..GL202204

main58033-V3430iGDH223,TRH223,228..GL..CBU202204

58051MAT SET, FLOOR

main58051-26260-B2iGDH201..HRF..4D..CBU;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

58076COVER SUB-ASSY, JACK BOX HOLE

main58076-26010-B1iGDH201,223..IV5201312-202107

main58076-26020-B1iGDH20#,211,KDH20#,211,TRH200,21#..5D..(GL,SGL)201312

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

58510BMAT, FRONT FLOOR, FRONT

main58510-26F40-B0iTRH221,226..02S;TRH21#,223,224,228,229..GC,GL,SGL201312-201501

DK. GREY,TRIM1#

main58510-26F50-B0iKDH211,223..GL,SGL201312-201701

DK. GREY,TRIM1#

main58510-26F60-B0iTRH200..SGL;TRH200..IV5201312-201501

DK. GREY,TRIM1#

main58510-26F70-B0iKDH20#..SGL;KDH20#..IV5201312-201701

DK. GREY,TRIM1#

main58510-26F71-B0iKDH20#..SGL;KDH20#..IV5201701-201711

DK. GREY,TRIM1#

main58510-26F80-B0iKDH20#..5F;TRH200..4FC..DX..CBU201312-201701

DK.GRAY,TRIM1#

main58510-26F90-B0iKDH20#..4FC..DX..CBU201312-201701

DK.GRAY,TRIM1#

main58510-26G10-B0iTRH214,219,221,223,226,228..DX..CBU201312-201501

DK.GRAY,TRIM1#

main58510-26G20-B0iKDH22#..DX201312-201701

DK.GRAY,TRIM1#

main58510-26J30-B0iTRH200..DX..CBU201501-201701

DK.GRAY,TRIM1#

main58510-26J40-B0iTRH200..SGL;TRH200..IV5201501-201701

DK. GREY,TRIM1#

main58510-26J50-B0iTRH214,219,221,223,226,228..DX..CBU201501-201701

DK.GRAY,TRIM1#

main58510-26J60-B0iTRH221,226..02S;TRH21#,223,224,228,229..GC,GL,SGL201501-201701

DK. GREY,TRIM1#

main58510-26J61-B0iTRH221,226..02S;TRH21#,223,224,228,229..GC,GL,SGL201701

DK. GREY,TRIM1#

main58510-26Q20-B0iKDH20#..5F201701-201711

DK.GRAY,TRIM1#

main58510-26Q30-B0iKDH20#..4FC..DX..CBU201701-201711

DK.GRAY,TRIM1#

main58510-26Q40-B0iKDH22#..DX201701-201711

DK.GRAY,TRIM1#

main58510-26Q50-B0iTRH200..5F201701-202107

DK.GRAY,TRIM1#

main58510-26Q60-B0iTRH200..SGL;TRH200..IV5201701

DK. GREY,TRIM1#

main58510-26Q70-B0iTRH214,219,221,223,226,228..DX..CBU201701

DK.GRAY,TRIM1#

main58510-26Q80-B0iKDH211,223..GL,SGL201701-201711

DK. GREY,TRIM1#

main58510-26Q90-B0iGDH20#..SP;GDH206..06S,09S;GDH206..5D..03S;GDH201..SRF..5D..DX;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S)201712

DK.GRAY,TRIM1#

main58510-26R00-B0iGDH22#..DX..CBU201712

DK.GRAY,TRIM1#

main58510-26R10-B0iGDH20#..SGL;GDH206..IV5201712

DK. GREY,TRIM1#

main58510-26R20-B0iGDH221,226..IV6;GDH211,223..(GL,SGL)..CBU201712

DK. GREY,TRIM1#

58510ERETAINER, FLOOR CARPET

main67771-26230-B2×6iGDH20#,221,KDH20#,221..4D..(05S,06S,09S); GDH20#,KDH20#..5D..06S201312-202003

DK.GRAY,TRIM1#

main67771-26250-B0×6iGDH201..SRF..4D..(06S,09S);GDH206,221..4D..(05S,06S,09S); GDH206..5D..06S;GDH201..V1..HRF..5D;GDH201..SRF..5D..06S202003

NEUTRAL WARM GRAY,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main64726-26010-B0×10iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202001-202312

MD.GRAY,TRIM1#

main64726-26010-B1×10iGDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#201312-202001

DK.GRAY,TRIM1#

58519BMAT, REAR WHEEL HOUSE, RH

main58519-26410-B2supersedes 58519-26430-B2iGDH201..V1..5D..DX;KDH20#..V1..DX..CBU;GDH20#,TRH200..V1..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,221,226,KDH221,TRH200,221,226..V1..(05S,06S,09S)..(4FC,6FC)..DX; GDH221,226,KDH221,TRH221,226..CBU; GDH223,KDH223,TRH223,228..DX; TRH200..09S..4FC;GDH201..V1..HRF..5D;GDH201..V1..SRF..06S;KDH20#..V1..(06S,09S);GDH206,221,226,KDH221,TRH200,221,226..V1..(05S,06S)..(4FC,6FC)..DX; TRH214,219..DX201312

main58519-26450-B2iGDH201..V1..5D..DX;KDH20#..V1..DX..CBU;GDH20#,TRH200..V1..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,TRH200..V1..(06S,09S)..(4FC,6FC); TRH200..09S..4FC;GDH201..V1..HRF..5D;GDH201..V1..SRF..06S;KDH20#..V1..(06S,09S);GDH206,TRH200..V1..06S..(4FC,6FC)201312

58520FMAT ASSY, ENGINE COVER

main58520-26312-B2iTRH200..5F201312-202107

DK.GRAY,TRIM1#

main58520-26361-B2iKDH221,TRH221,226..CBU201312-201712

DK.GRAY,TRIM1#

main58520-26392-B2iKDH223,TRH214,219,223,228..DX201312-201712

DK.GRAY,TRIM1#

main58520-26401-B1iKDH20#,TRH200..SGL201312

DK. GREY,TRIM1#

main58520-26411-B1iKDH20#,TRH200..IV5201312

DK. GREY,TRIM1#

main58520-26421-B1iKDH211,223,TRH21#,223,228,229..GC,GL,SGL;TRH221,224,226..(02S,10S)..(CBU,IV6,IV7)201312-201712

DK. GREY,TRIM1#

main58520-26620-B0iTRH224..IV5201312-201605

DK. GREY,TRIM1#

main58520-26640-B0iGDH20#..SP;GDH206..06S,09S;GDH206..5D..03S;GDH201..SRF..5D..DX;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S)201712

DK.GRAY,TRIM1#

main58520-26670-B0iGDH22#,TRH214,219,223,228..DX..CBU201712

DK.GRAY,TRIM1#

main58520-26710-B0iTRH221,226..CBU201712

DK.GRAY,TRIM1#

main58520-26750-B0iGDH20#..SGL201712

DK. GREY,TRIM1#

main58520-26760-B0iGDH206..IV5201712

DK. GREY,TRIM1#

main58520-26770-B0iGDH223..IV5201712-202107

DK. GREY,TRIM1#

main58520-26382-B2iTRH214,219..DX201312-201712

main58520-26660-B0iTRH214,219..DX201712

58520HCLIP(FOR ENGINE COVER MAT)

main64726-26010-B0×2iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202001-202312

MD.GRAY,TRIM1#

main64726-26010-B1×2iGDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#201312-202001

DK.GRAY,TRIM1#

58529BMAT, REAR WHEEL HOUSE, LH

main58529-26320-B2supersedes 58529-26300-B2iGDH201..V1..5D..DX;KDH20#..V1..DX..CBU;GDH20#,TRH200..V1..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,221,226,KDH221,TRH200,221,226..V1..(05S,06S,09S)..(4FC,6FC)..DX; GDH223,KDH223,TRH223,228..DX; TRH200..09S..4FC;GDH201..V1..HRF..5D;GDH201..V1..SRF..06S;KDH20#..V1..(06S,09S);GDH206,221,226,KDH221,TRH200,221,226..V1..(05S,06S)..(4FC,6FC)..DX; TRH214,219..DX201312

58530FMAT ASSY, HEADER

main58530-26731-B2iTRH200..4D..SG..CBU201312-201701

main58530-26761-B2iTRH200..4D..SG..(03S,06S)..(4FC,6FC)..CBU; TRH200..V1..SP201312-201701

main58530-26801-B2iTRH200..V1..5D..DX201312-201701

main58530-26A41-B2iTRH214,219,223,228..DX201312-201712

main58530-26B80-B2iTRH221,226..CBU201312-201712

main58530-26D01-B1iTRH200..SGL201312-201701

main58530-26D11-B1iKDH20#,TRH200..IV5201312-201701

main58530-26D21-B1iTRH221,226..02S;KDH223,TRH214,219,223,224,228,229..(GC,GL)..CBU201312-201712

main58530-26D61-B1iKDH211,TRH211,216201312-201712

main58530-26D91-B2iKDH223,TRH223,224,228..IV5; TRH214,219,224,229..(GC,GL)..CBU201312-201712

main58530-26F11-B1iKDH20#..SGL201312-201701

main58530-26F80-B2iKDH201,TRH200..V2..03S201312-201701

main58530-26F90-B2iKDH201,TRH200..V2..06S201312-201701

main58530-26G00-B2iKDH20#..4D..SG..CBU201312-201702

main58530-26G10-B2iKDH20#..4D..SG..(03S,06S)..4FC..CBU; KDH20#..V1..SP201312-201701

main58530-26G20-B2iKDH20#..V1..5D..DX201312-201701

main58530-26J30-B1iKDH223..DX201312-201711

main58530-26J50-B1iKDH221201312-201711

main58530-26R10-B0iTRH200..4D..(06S,09S)..6FC201701

main58530-26R20-B0supersedes 58530-26R10-B0iTRH200..SP..5F201701-202107

main58530-26R30-B0iTRH200..V1..5D..5F201701-202107

main58530-26R50-B0iKDH201,TRH200..V2..03S201701

main58530-26R60-B0iTRH200..V2..HRF..6FC201701-202312

main58530-26R90-B0iKDH20#..4D..SG..CBU201701-201711

main58530-26S00-B0iKDH20#..4D..SG..(03S,06S)..4FC..CBU; KDH20#..V1..SP201701-201711

main58530-26S10-B0iKDH20#..V1..5D..DX201701-201711

main58530-26S40-B0iTRH200..SGL201701

main58530-26S60-B0iKDH20#..SGL201701-201711

main58530-26T70-B0supersedes 58530-26T80-B0iGDH20#..V1..SP; GDH206..4D..06S;GDH201..SRF..4D..06S201712

main58530-26T80-B0iGDH206..4D..(06S,09S);GDH201..SRF..4D..(06S,09S)201712

main58530-26T90-B0iGDH201..V2..03S201712

main58530-26U20-B0iGDH201..V2..HRF201712-202312

main58530-26U40-B0iTRH221,226..CBU201712

main58530-26U80-B0iTRH214,219,223,228..DX201712

main58530-26W00-B0iGDH22#..DX..CBU201712

main58530-26W30-B0iGDH20#..SGL201712

main58530-26W40-B0iTRH221,224,226,229..02S,10S;TRH214,219,223,228..4D..GL..CBU201712

main58530-26W50-B0iTRH21#..5D201712

main58530-26X00-B0iGDH221,226..IV6;GDH223..GL..CBU201712

main58530-26X30-B0iGDH211201712

main58530-26811-B2iTRH200..V1..5D..(4FC,6FC)..DX; TRH200..V1..SRF..5D..06S..(4FC,6FC)201312-201701

main58530-26G30-B2iKDH20#..V1..5D..4FC..DX; KDH20#..V1..SRF..5D..06S..4FC201312-201701

main58530-26G80-B2iTRH214,219..DX201312-201712

main58530-26Q60-B0supersedes 58530-26S50-B0iKDH20#,TRH200..IV5201609-201701

main58530-26Q70-B0iKDH223,TRH223,228..IV5201606-201712

main58530-26R40-B0supersedes 58530-26R30-B0iTRH200..V1..5D..6FC..DX201701

main58530-26S20-B0iKDH20#..V1..5D..4FC..DX; KDH20#..V1..SRF..5D..06S..4FC201701-201711

main58530-26S70-B0supersedes 58530-26S50-B0iKDH20#,TRH200..IV5201701

main58530-26U00-B0iGDH20#..V1..SRF..5D..06S201712-202108

main58530-26V40-B0iTRH214,219..DX201712

main58530-26W20-B0supersedes 58530-26W10-B0iGDH201..IV5201712-202107

main58530-26W60-B0iTRH214,219,224,229..4D..(GC,GL); TRH223,228..IV5201712

main58530-26W90-B0supersedes 58530-26W60-B0iTRH223,228..IV5201712

main58530-26X20-B0supersedes 58530-26X10-B0iGDH223..IV5201712-202107

58530HCLIP(FOR HEADER MAT & HEADER CARPET)

main64726-26010-B0×9iTRH200..5F;GDH201,223..IV5202001-202107

MD.GRAY,TRIM1#

main64726-26010-B1×9iGDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#201312-202001

DK.GRAY,TRIM1#

58542PMAT, STEP, LH

main58542-26050-B2iTRH200..5F201312-202107

58560BCLIP(FOR FLOOR CARPET, REAR)

main63399-26050-B0×4iTRH214,219..4D201312-202204

LT.GRAY,TRIM1#

main90467-07198-C0×6iGDH223,KDH223,TRH223,224,228,229..CBU201312-202204

BLACK

58569STOPPER, REAR FLOOR MAT

main64779-26020×6iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

58570BMAT ASSY, REAR FLOOR

main58517-26680-B2iGDH20#,KDH20#..4D..SG..03S..CBU;TRH200..4D..SG..03S..(4FC,6FC)..CBU201312-202312

DK.GRAY,TRIM1#

main58517-26700-B2iKDH20#,TRH200..09S201312-201606

DK.GRAY,TRIM1#

main58517-26720-B2iTRH200..5D..03S..5F201312-202107

DK.GRAY,TRIM1#

main58517-26B01-B1iGDH223,KDH223,TRH223,228..DX201312

DK.GRAY,TRIM1#

main58517-26C51-B2iTRH214,219..DX201312

DK.GRAY,TRIM1#

main58517-26C81-B1iGDH223,KDH223,TRH223,228..GL..CBU201312

DK. GREY,TRIM1#

main58517-26C91-B1iTRH224,229..CBU201312

DK. GREY,TRIM1#

main58517-26G70-B1iTRH214,219..4D..GL201312

DK. GREY,TRIM1#

main58517-26D40-B2supersedes 58517-26690-B2iTRH200..4D..06S..5F201312-202107

main58517-26D50-B2iKDH20#,TRH200..09S201312-201501

main58517-26D60-B2supersedes 58517-26730-B2iTRH200..V1..5D..06S..5F201312-202107

main58517-26D70-B2supersedes 58517-26880-B2iKDH201,TRH200..V2..06S201312-201501

main58517-26D90-B2supersedes 58517-26A60-B2iGDH221,226,KDH221,TRH221,226..CBU201312

main58517-26E40-B2supersedes 58517-26E30-B2iGDH201..SRF..4D..06S;GDH206,KDH20#..4D..06S201312

main58517-26E60-B2supersedes 58517-26E50-B2iGDH20#,KDH20#..V1..5D..06S201312

main58517-26J80-B0iGDH20#..5D..03S202401

main58517-26L50-B0iKDH20#,TRH200..09S201501-201606

main58517-26L60-B0supersedes 58517-26880-B2iKDH201,TRH200..V2..06S201312-201501

main58517-26L70-B0supersedes 58517-26L60-B0iGDH201,TRH200..V2..HRF..6FC201501-202312

main58517-26M80-B0iKDH20#,TRH200..4D..SG..03S..CBU201312-201501

main58517-26N50-B0supersedes 58517-26C61-B1iGDH20#,KDH20#,TRH200..SGL201312

main58517-26N60-B0supersedes 58517-26D21-B1iGDH211,KDH211,TRH211,216201312

main58517-26N70-B0iTRH200..5D..03S..6FC;GDH20#,KDH20#..5D..03S201501

main58517-26P80-B0supersedes 58517-26P70-B0iKDH20#,TRH200..09S201606-201801

main58517-2F410-B0supersedes 58517-2F400-B0iGDH20#,TRH200..09S..6FC201801

58572CCLIP, REAR FLOOR MAT SET

main64726-26010-B0×2iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC..CBU;GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;GDH201,TRH214,219..(SMRF,SRF)..4D..(06S,09S,10S);GDH206,211,22#,TRH211,216,22#..05S,06S,09S,10S,14S202001

MD.GRAY,TRIM1#

main64726-26010-B1×2iTRH214,219..4D;GDH20#,211,22#,KDH20#,211,22#,TRH200,211,216,22#..SG..CBU201312-202001

DK.GRAY,TRIM1#

58578APLATE, REAR FLOOR MAT SUPPORT SIDE, LH

main58578-26040-B1iGDH201..HRF..4D..CBU;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

DK.GRAY,TRIM1#

main58578-26060iTRH200..V2..5F201312-202107

58579CCLIP, REAR FLOOR CARPET SET

main90467-10034-C0×2iGDH201..V1..5D..DX;KDH20#..V1..DX..CBU;GDH20#,TRH200..V1..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,221,226,KDH221,TRH200,221,226..V1..(05S,06S,09S)..(4FC,6FC)..DX; GDH223,KDH223,TRH214,219,223,228..DX; TRH200..09S..4FC;GDH201..V1..HRF..5D;GDH201..V1..SRF..06S;KDH20#..V1..(06S,09S);GDH206,221,226,KDH221,TRH200,221,226..V1..(05S,06S)..(4FC,6FC)..DX201312

67913PLATE, FRONT DOOR SCUFF, RH

main67913-26082-B1iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-26062-B1iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-26110-B1iGDH223,TRH224..CBU;GDH206,221,226,KDH20#,223,TRH200,214,219,221,223,226,228,229..(HRF,SMRF)..4D..(02S,03S,10S,14S); TRH200..6FC..IV5;GDH206,KDH20#..IV5201312

main67918-26120-B1supersedes 67918-26110-B1iTRH224..IV5201312-201605

DK.GRAY,TRIM1#

main67918-26190-B0supersedes 67918-26170-B0iTRH214,219..5D201712

DK.GRAY,TRIM1#

main67918-26160-B1iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main67918-26170-B0iTRH214..4D..GL201503

main67918-26440-B0iGDH20#,211,TRH200,211,216..SGL201808

main67918-26450-B0iGDH20#..SGL202410

67921RETAINER, FRONT DOOR SCUFF PLATE

main67771-26240×4iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

67921APAD, CENTER DOOR SCUFF PLATE

main67921-26040×2iGDH20#,211,KDH20#,211..SGL; GDH206,KDH20#..IV5; GDH223..CBU;GDH206,221,226,KDH20#,223..HRF..(02S,03S,14S)201312

67921PPAD, CENTER DOOR SCUFF PLATE, LH

main67921-26110iGDH20#,211,223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223..HRF..(02S,03S,14S); GDH206,KDH20#..IV5201312

main67921-26120iGDH20#,211,KDH20#,211..SGL; GDH206,KDH20#,223..IV5; GDH223,KDH223..CBU201312

main67921-26130iGDH20#,211,TRH200,211,216..SGL201808

main67921-26140iGDH20#,211,TRH200,211,216..SGL201808-201908

67926PANEL, REAR DOOR SCUFF, LH

main67926-26030-B2supersedes 67926-26040-B2iGDH201..V2..HRF;GDH201..HRF..4D..CBU201312-202312

67935PLATE, BACK DOOR SCUFF

main67935-26140iGDH201,TRH200..V2..HRF..6FC201312-202312

main67935-26170-B1iGDH20#,KDH20#,TRH200..SGL;GDH206,KDH20#,TRH200..IV5201312-202410

DK.GRAY,TRIM1#

main67935-26182-B2iGDH223..GL..CBU;GDH211,KDH211,223,TRH21#,223,224,228,229..GC,GL,SGL201312-202410

DK.GRAY,TRIM1#

main67935-26190iGDH201..V1..5D..DX;KDH20#..V1..DX..CBU;GDH20#,TRH200..V1..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,TRH200..V1..(06S,09S)..(4FC,6FC)201312

main67935-26200iGDH22#,KDH22#,TRH214,219,221,223,226,228..DX201312

main67935-V3050-B0iGDH20#,TRH200..SGL;GDH206,TRH200..IV5202410

DK.GRAY,TRIM1#

main67935-V3060-B0iGDH223..GL..CBU;GDH211,TRH21#,223,224,228,229..GC,GL,SGL202410

DK.GRAY,TRIM1#

67935GSCREW, BACK DOOR SCUFF PLATE

main93220-A6016×6iGDH201,TRH200..V2..HRF..6FC201312-202312

main93560-56012×6iGDH201..V1..5D..DX;KDH20#..V1..DX..CBU;GDH20#,TRH200..V1..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,TRH200..V1..(06S,09S)..(4FC,6FC); GDH22#,KDH22#,TRH214,219,221,223,226,228..DX201312

67935HGROMMET, BACK DOOR SCUFF PLATE

main90189-06057×7iGDH206..06S,09S;KDH206..DX..CBU;GDH201..SRF..5D..DX;KDH201..SG..DX..CBU;GDH201..V1..HRF..5D;TRH200..V1..SP..6FC;TRH200..HRF..4FC..CBU;GDH20#,KDH201..V1..SP;TRH200..V1..HRF..6FC..CBU;GDH201..SRF..4D..(06S,09S);TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);TRH200..SRF..(06S,09S)..(4FC,6FC); GDH22#,KDH22#,TRH214,219,221,223,226,228..DX201312

67936BCOVER, BACK DOOR SCUFF SIDE, RH

main67936-26040-B1iGDH201..HRF..4D..CBU;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

DK.GRAY,TRIM1#

67937FCOVER, BACK DOOR SCUFF SIDE, LH

main67937-26040-B1iGDH201..V1..5D..DX;KDH20#..V1..DX..CBU;GDH20#,TRH200..V1..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,22#,KDH22#,TRH200,214,219,221,223,226,228..(COM,V1,WG)..(02S,05S,06S,09S,10S,14S)..(4FC,6FC)..DX201312

DK.GRAY,TRIM1#

6477926020TRAY, SPARE WHEEL COVER

main64779-26020

9018906057

main90189-06057

9046709206

main90467-09206

9046710161

main90467-10161

9046710167

main90467-10167

9046710178

main90467-10178

9356056012

main93560-56012

39 parts on this diagram · 9 diagrams in section
