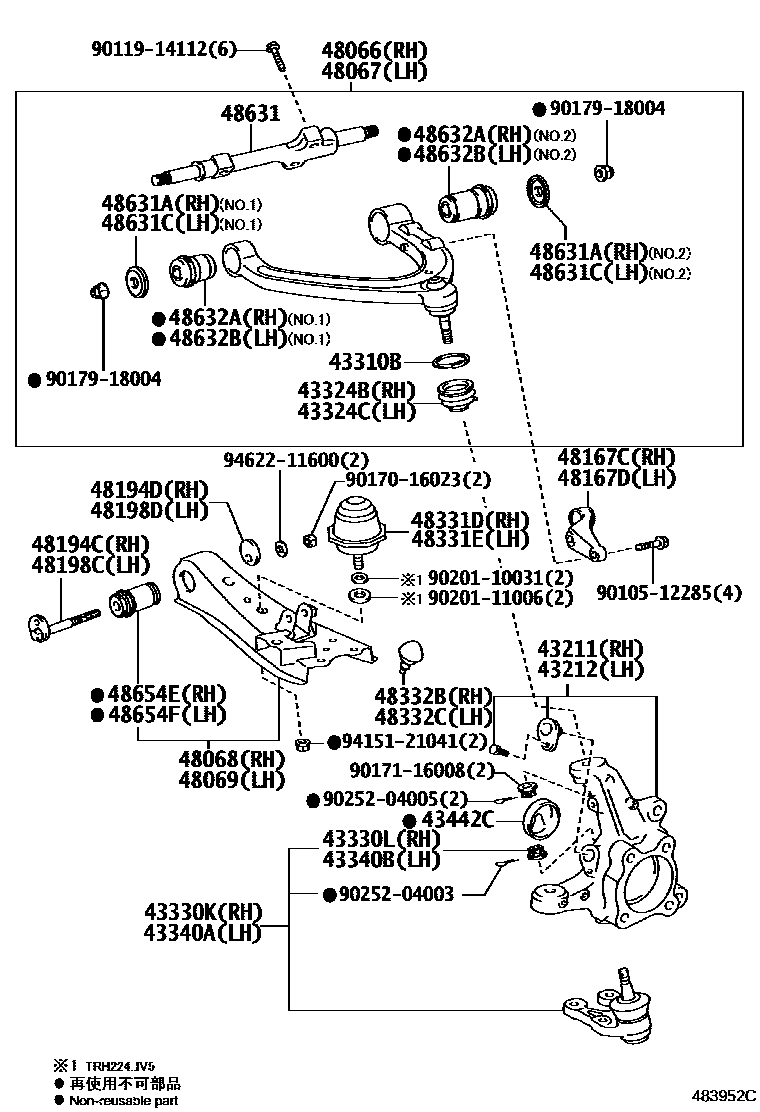

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43201-26070iGDH206..4D..SG..03S..CBU201312-202312

main43211-29026iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

43212KNUCKLE, STEERING, LH

main43202-26070iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312

main43212-29026iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

43310BRING, SET (FOR DUST COVER)

main90522-50001×2iTRH200..5F;GDH201,223..IV5201312-202107

43324BCOVER, FRONT UPPER BALL JOINT DUST, RH

main43324-26050iTRH200..5F;GDH201,223..IV5201312-202107

43324CCOVER, FRONT UPPER BALL JOINT DUST, LH

main43324-26050iTRH200..5F;GDH201,223..IV5201312-202107

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29565iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

main43330-29575iGDH206..4D..SG..03S..CBU201312-202312

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-16008iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29565iTRH200..5F;GDH201,223..IV5201312-202107

main43330-29575iGDH206..4D..SG..03S..CBU201312-202312

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-16008iGDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;KDH201,223,TRH223,224;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7201312

43442CCAP, KNUCKLE GREASE RETAINER

main43442-26050×2iGDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;KDH201,223,TRH223,224;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7201312

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-29215iGDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;KDH201,223,TRH223,224;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7201312

main48066-29235iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-29215iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

main48067-29235iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26160iGDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;KDH201,223,TRH223,224;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7201312

main48068-26170iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26160iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

main48069-26170iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312

48167CARM, FRONT SUSPENSION TORQUE, RH

main48106-25020iGDH206..4D..SG..03S..CBU201312-202312

main48106-26040iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

48167DARM, FRONT SUSPENSION TORQUE, LH

main48106-25020iGDH206..4D..SG..03S..CBU201312-202312

main48106-26040iTRH200..5F;GDH201,223..IV5201312-202107

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-25010iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-25010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-25010iTRH200..5F;GDH201,223..IV5201312-202107

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-25010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

48331DBUMPER, FRONT SPRING, NO.1 RH

main48331-25050iGDH206..4D..SG..03S..CBU201312-202312

main48331-26140iTRH200..5F;GDH201,223..IV5201312-202107

48331EBUMPER, FRONT SPRING, NO.1 LH

main48331-25050iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312

main48331-26140iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

48332BBUMPER, FRONT SPRING, NO.2 RH

main48332-35020iTRH200..5F;GDH201,223..IV5201312-202107

48332CBUMPER, FRONT SPRING, NO.2 LH

main48332-35020iTRH200..5F;GDH201,223..IV5201312-202107

48631SHAFT, FRONT SUSPENSION UPPER ARM

main48631-26040×2iTRH200..5F;GDH201,223..IV5201312-202107

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02142iTRH200..5F;GDH201,223..IV5201312-202107

main90948-02143iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02142iTRH200..5F;GDH201,223..IV5201312-202107

main90948-02143iTRH200..5F;GDH201,223..IV5201312-202107

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-26090iTRH200..5F;GDH201,223..IV5201312-202107

main48635-26080iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-26090iGDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;KDH201,223,TRH223,224;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7201312

main48635-26080iGDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;KDH201,223,TRH223,224;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7201312

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-25010iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312

main48061-26050iGDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;KDH201,223,TRH223,224;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7201312

main48061-26060iGDH206..4D..SG..03S..CBU201312-202312

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-25010iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312

main48061-26050iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

main48061-26060iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312

9010512285

main90105-12285

9011914112

main90119-14112

9017016023

main90170-16023

9017116008

main90171-16008

9017918004

main90179-18004

9020110031

main90201-10031

9020111006

main90201-11006

9025204003

main90252-04003

9025204005

main90252-04005

9415121041

main94151-21041

9462211600

main94622-11600

42 parts on this diagram · 2 diagrams in section
