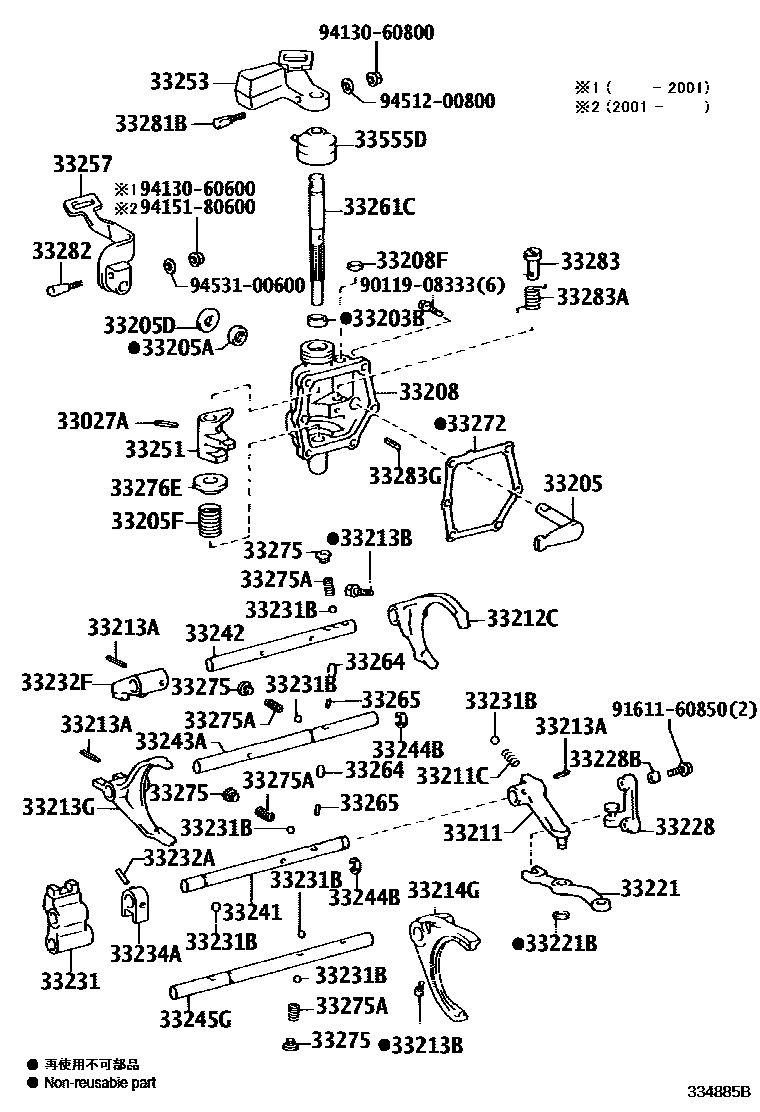

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33208FPLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)
33211FORK, REVERSE SHIFT
33211CSPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)
33212CFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33231HEAD, REVERSE SHIFT
33231BBALL, REVERSE SHIFT RESTRICT
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33234AHEAD, GEAR SHIFT, NO.3
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251LEVER, SHIFT & SELECT
33253LEVER, SHIFT OUTER, NO.1
33257LEVER, SELECT OUTER
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33265PIN, SHIFT INTERLOCK, NO.2
33272GASKET, SHIFT LEVER SHAFT HOUSING
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33276ESEAT, SELECT SPRING, NO.1
33281BPIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33282PIN, LEVER LOCK, NO.2
33283PIN, REVERSE RESTRICT, NO.1
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33555DBOOT, SHIFT LEVER
9011908333
main90119-08333
9161160850
main91611-60850
9413060600
main94130-60600
9413060800
main94130-60800
9415180600
main94151-80600
9451200800
main94512-00800
9453100600
main94531-00600
52 parts on this diagram · 2 diagrams in section
