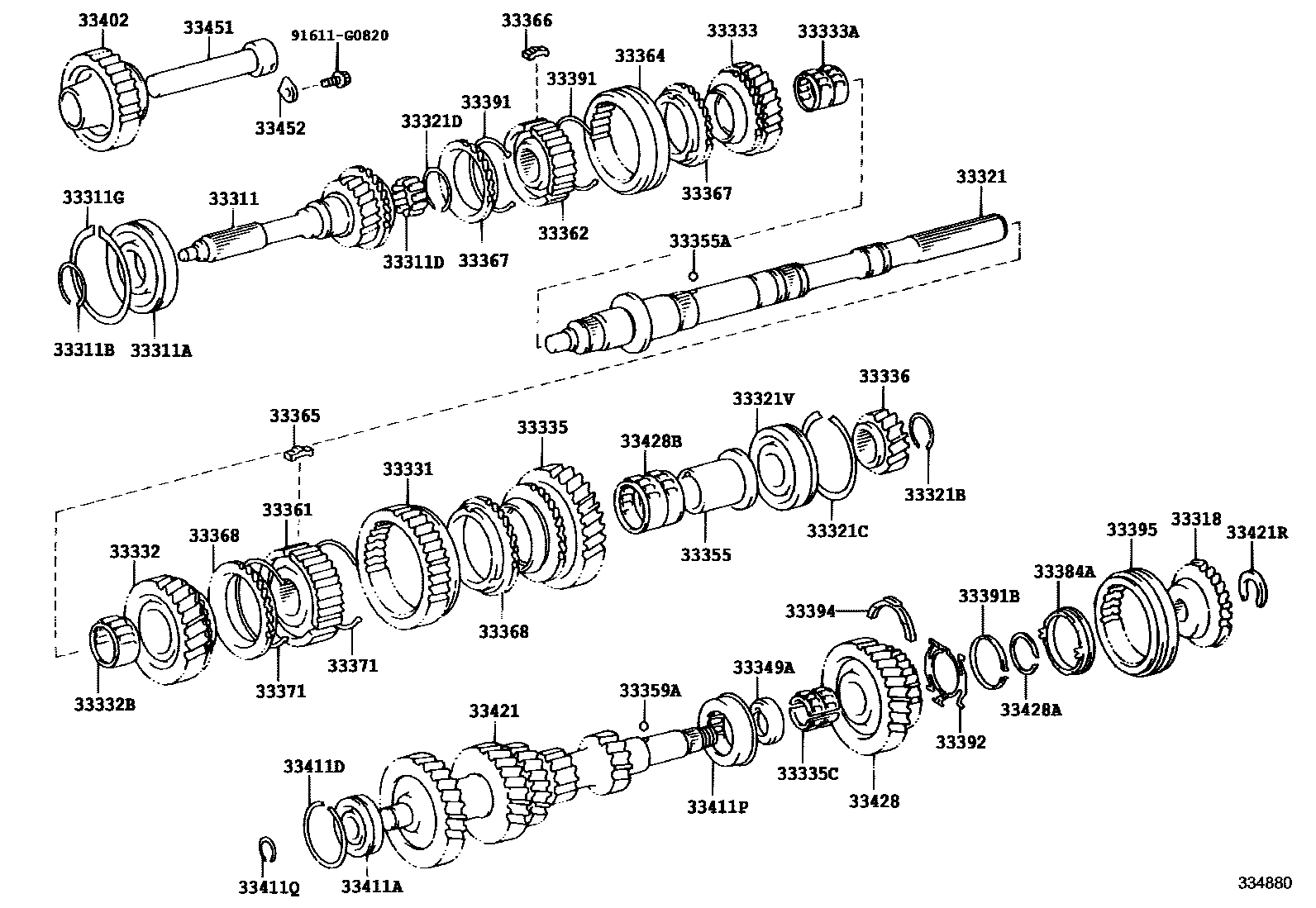

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33349WASHER, 5TH GEAR THRUST
33349AWASHER, 4TH GEAR
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33384ARING, SYNCHRONIZER, OUTER NO.3
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33391BSPRING, SYNCHROMESH SHIFTING KEY, NO.4
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33421GEAR, COUNTER
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
33428GEAR, COUNTERSHAFT 5TH
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33452STOPPER, REVERSE IDLER GEAR SHAFT
91611G0820
main91611-G0820
51 parts on this diagram · 2 diagrams in section
