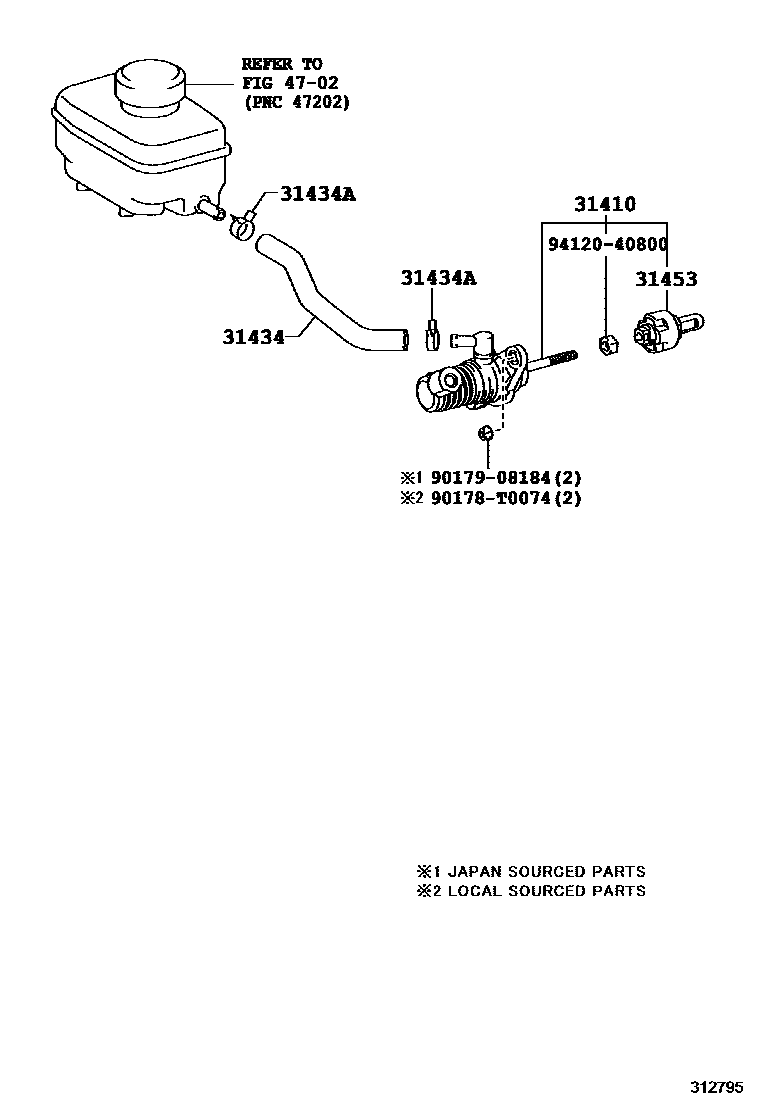

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26200iKDH20#,TRH200..5F201312-201612

main31420-26201iKDH20#,TRH200..5F201701-202107

31434TUBE, CLUTCH RESERVOIR

main31434-26290iKDH20#,TRH200..5F201312-201501

main31434-26310iKDH20#,TRH200..5F201501-202107

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801×2iKDH20#,TRH200..5F201312-202107

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-26020iKDH20#,TRH200..5F201312-201612

main31404-26021iKDH20#,TRH200..5F201701-202107

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90178T0074

main90178-T0074

9017908184

main90179-08184

9412040800

main94120-40800

8 parts on this diagram · 1 diagram in section
