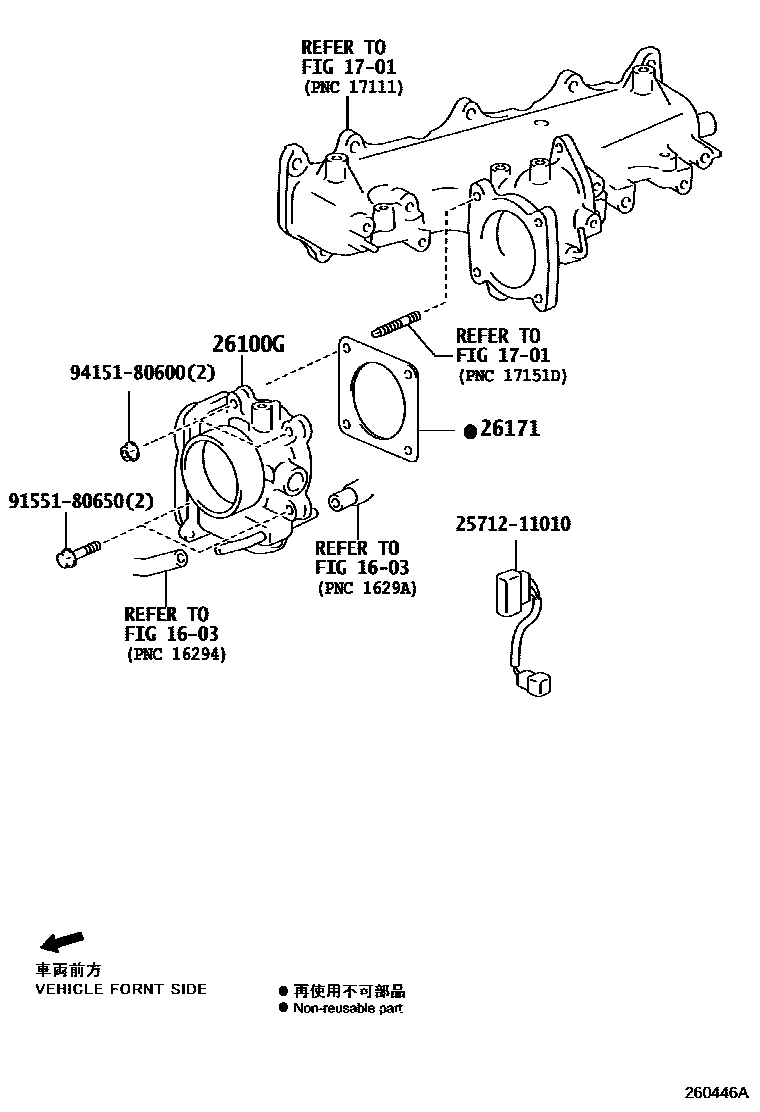

VENTURI

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

26100GBODY ASSY, DIESEL THROTTLE

main26100-11010i1GDFTV..GDH201,223..IV5201712-202107

main26100-30060i1KDFTV..KDH20#,211,22#201312-201711

26171GASKET, VENTURI

main26171-11010i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main26171-30020i1KDFTV..KDH20#,211,22#201312-201711

2571211010WIRE, EMISSION CONTROL VALVE

main25712-11010

9155180650

main91551-80650

9415180600

main94151-80600

7 parts on this diagram · 2 diagrams in section
