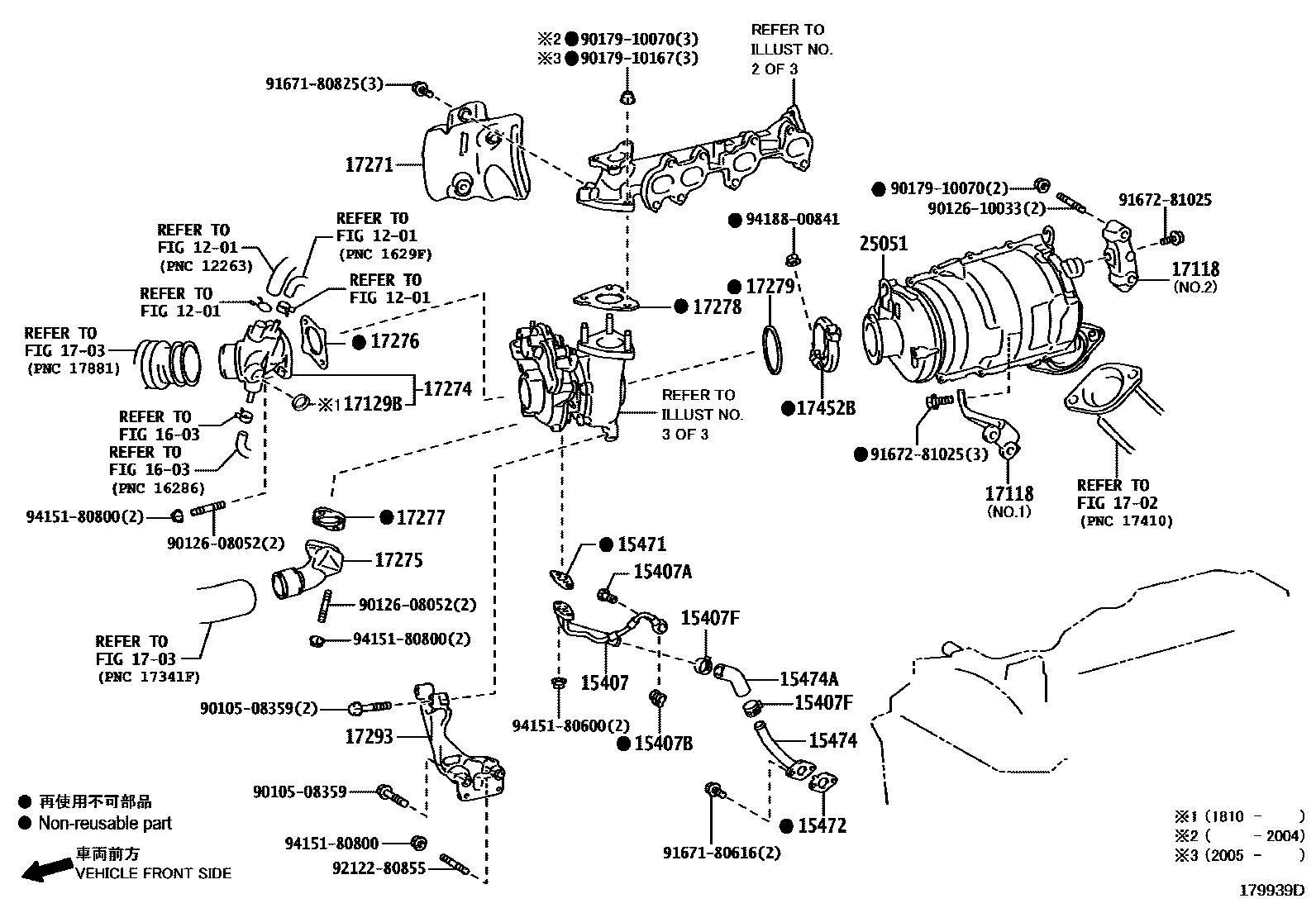

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1

1201

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-0E020i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main15407-30110i1KDFTV..KDH20#,211,22#201312-201711

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12097i1KDFTV..KDH20#,211,22#201312-202006

main96341-11200i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202006-202312

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90904-30004i1KDFTV..KDH20#,211,22#201312-202312

15407FCLAMP OR CLIP, OIL HOSE

main96137-42501i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712-202312

15471GASKET, TURBO OIL INLET

main15471-11020i1GDFTV..GDH201,223..IV5201712-202312

main15471-30011i1KDFTV..KDH20#,211,22#201312-201711

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-11010i1GDFTV..GDH201,223..IV5201712-202312

main15472-30010i1KDFTV..KDH20#,211,22#201312-201711

15474PIPE, TURBO OIL OUTLET

main15474-0E010i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712-202312

15474AHOSE, TURBO OIL OUTLET

main15491-11010i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

1603

1702

1703

17118STAY, MANIFOLD

main17118-11390i1GDFTV..GDH201,223..IV5201712-202312

main17118-30040i1KDFTV..KDH20#,211,22#201312-201711

main17568-11170i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712-202312

main17569-11140i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

17129BPLUG

main96411-41800i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201810-202312

17271INSULATOR, TURBO, NO.1

main17271-0L020i1KDFTV..KDH20#,211,22#201312-201711

main17271-11021i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

17274ELBOW, COMPRESSOR INLET

main17274-11080i1GDFTV..GDH201,223..IV5201712-202312

main17274-30090i1KDFTV..KDH20#,211,22#201312-201711

17275ELBOW, COMPRESSOR OUTLET

main17275-11020i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712-202312

17276GASKET, COMPRESSOR INLET

main17276-67010i1KDFTV..KDH20#,211,22#201312-202312

17277GASKET, COMPRESSOR OUTLET

main17277-11030i1GDFTV..GDH201,223..IV5201712-202312

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-11041i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712-202312

main17278-67010i1KDFTV..KDH20#,211,22#201312-201711

17279GASKET, TURBINE OUTLET ELBOW

main17279-11020i1GDFTV..GDH201,223..IV5201712-202312

main17279-30030i1KDFTV..KDH20#,211,22#201312-201411

sub17279-30031

main17279-30031i1KDFTV..KDH20#,211,22#201411-201711

17293STAY, TURBOCHARGER

main17293-11011i1GDFTV..GDH20#,211,22#201712-202001

sub17293-11020

main17293-11020i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202002-202312

main17293-30100i1KDFTV..KDH20#,211,22#201312-201711

17452BCLAMP, EXHAUST PIPE

main17452-11070i1GDFTV..GDH201,223..IV5201712-202312

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-11060i1GDFTV..GDH201,223..IV5201712-202312

9010508359

main90105-08359

9012608052

main90126-08052

9012610033

main90126-10033

9017910070

main90179-10070

9017910167

main90179-10167

9167180616

main91671-80616

9167180825

main91671-80825

9167281025

main91672-81025

9212280855

main92122-80855

9415180600

main94151-80600

9415180800

main94151-80800

9418800841

main94188-00841

36 parts on this diagram · 9 diagrams in section
