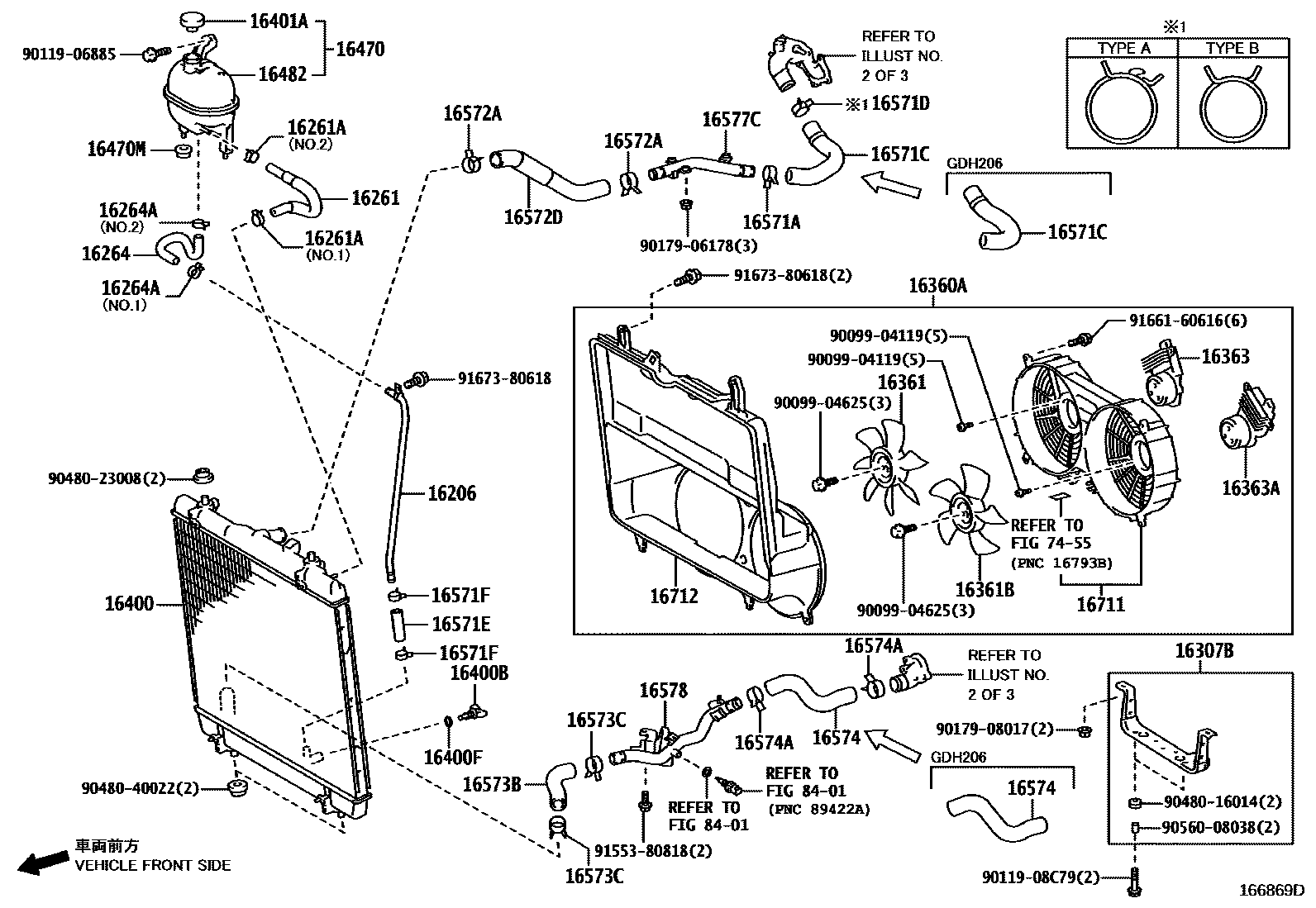

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0015 1 0016 1

16206PIPE SUB-ASSY, WATER BY-PASS

main16206-75010i1TRFE..TRH200..5F201312-202107

16261HOSE, WATER BY-PASS

main16261-11120i1GDFTV..GDH201..IV5201712-202107

main16261-11130i1GDFTV..GDH223..IV5201712-202107

main16261-75230i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

main16261-75250i1KDFTV..KDH211,22#201312-201711

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022i1TRFE..TRH200..5F201312-202107

main96136-41501i1GDFTV..GDH201,223..IV5201712-202107

main96136-41901i1GDFTV..GDH201,223..IV5201712-202107

16264HOSE, WATER BY-PASS, NO.2

main16264-75170i1KDFTV..KDH20#201312-201711

main16264-75190i2TRFE..TRH21#,22#201312

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90466-26004i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6); 1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC202103

main96136-42101i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main96136-42501i1KDFTV..KDH20#,211,22#; 1TRFE,2TRFE..TRH200,21#,22#201312-201612

main96138-42101×2i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202307-202312

main96138-42501i1KDFTV..KDH20#,211,22#201612-201711

16307BBRACKET SUB-ASSY, FAN

main16307-30010i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main16307-75021i1TRFE,2TRFE..TRH200,21#,22#201312-202005

16360AFAN ASSY, W/MOTOR

main16360-11300i1GDFTV..GDH201,223..IV5202005-202107

main16360-30022i1KDFTV..KDH20#,211,22#201312-201611

main16360-30023i1GDFTV..GDH20#,211,22#201712-202005

main16360-75032i1TRFE,2TRFE..TRH200,21#,22#201312-202005

main16360-75070i1TRFE..TRH200..5F202005-202107

16361FAN

main16361-11040i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6); 1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC202005-202507

main16361-30060i1KDFTV..KDH20#,211,22#201312-201711

main16361-75030i1TRFE,2TRFE..TRH200,21#,22#201312-202005

16361BFAN, NO.2

main16361-11050i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202005-202312

main16361-30050i1KDFTV..KDH20#,211,22#201312-201711

main16361-37100i1TRFE..TRH200..5F202005-202107

main16361-75040i1TRFE,2TRFE..TRH200,21#,22#201312-202005

16363MOTOR, COOLING FAN

main16363-20390i1TRFE,2TRFE..TRH200,21#,22#201312-202005

main16363-24100i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU; 1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU202005-202312

main16363-30041i1GDFTV..GDH20#,211,22#201712-202005

main16363-75030i1TRFE,2TRFE..TRH200,21#,22#201312-202005

16363AMOTOR, COOLING FAN, NO.2

main16363-24100i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202005-202312

main16363-30041i1GDFTV..GDH20#,211,22#201712-202005

main16363-47060i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU202005-202312

16400RADIATOR ASSY

main16400-11A40i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main16400-30270i1KDFTV..KDH20#..5F201312-201711

main16400-30280i1KDFTV..KDH20#,211,22#..4FC201312-201412

main16400-30281i1KDFTV..KDH20#,211,22#..4FC201501-201711

main16400-75600i1TRFE..TRH200..5F201312-202107

main16400-75610i1TRFE,2TRFE..TRH200,21#,22#..4FC201312-201412

main16400-75611i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201501-202312

16400BPLUG, RADIATOR DRAIN COCK

main16417-30170i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16475-28140i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201612-202312

main16475-37010i1KDFTV..KDH20#,211,22#; 1TRFE,2TRFE..TRH200,21#,22#201312-201409

main16475-37011i1KDFTV..KDH20#,211,22#; 1TRFE,2TRFE..TRH200,21#,22#201410-201611

16470TANK ASSY, RADIATOR RESERVE

main16470-75122i1KDFTV..KDH20#,211,22#; 1TRFE,2TRFE..TRH200,21#,22#201312-201409

main16470-75123i1KDFTV..KDH20#,211,22#; 1TRFE,2TRFE..TRH200,21#,22#201410-201611

main16470-75124i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201612-202312

16470MGROMMET

main90480-14470×2i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main90480-15023×2i1KDFTV..KDH20#,211,22#; 1TRFE,2TRFE..TRH200,21#,22#201312-201509

16482TANK SUB-ASSY, RADIATOR RESERVE

main16480-75070i1KDFTV..KDH20#,211,22#201312-201711

16571HOSE, RADIATOR, INLET

main16571-30070i1KDFTV..KDH201,211,22#201312-201711

main16571-30090i1KDFTV..KDH206201312-201711

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main96136-54801i1KDFTV..KDH20#,211,22#201312-201711

16571CHOSE, RADIATOR, NO.1

main16571-11280i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH201..4D..SG..03S..CBU201712-202312

main16571-11290i1GDFTV..GDH206..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH206,226..02S,05S,06S,09S201712

main16571-75260i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;2TRFE..TRH211,214,221,223,224;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312

main16571-75270i2TRFE..TRH216,219,226,228,229201312

main99555-10500i1KDFTV..KDH20#,211,22#201312-201711

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41007i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main90467-37005i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312

main96136-44301i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU202103-202312

main96136-54301i1TRFE,2TRFE..TRH200,21#,22#201312-202103

main96136-54801i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

16571EHOSE, WATER

main99555-20075i1KDFTV..KDH20#,211,22#201312-201711

16571FCLAMP OR CLIP(FOR WATER HOSE)

main96136-42101×2i1KDFTV..KDH20#,211,22#201312-201711

16572HOSE, RADIATOR, OUTLET

main16572-30110i1KDFTV..KDH20#,211,22#201312-201711

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96136-54801×2i1KDFTV..KDH20#,211,22#201312-201711

16572DHOSE, RADIATOR, NO.2

main16572-30090i1KDFTV..KDH20#,211,22#201312-201711

main16572-75310i1GDFTV..GDH201,223..IV5201712-202107

16573BHOSE, RADIATOR, NO.3

main16573-30030i1GDFTV..GDH201..IV5201712-202107

main16573-30040i1KDFTV..KDH211,22#201312-201711

main16573-75080i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312

main16573-75090i2TRFE..TRH21#,22#201312

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-41007i1KDFTV..KDH201; 1KDFTV..KDH206,211,22#201312-201711

16574HOSE, RADIATOR, NO.4

main16574-11020i1GDFTV..GDH201..SP;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S)201712

main16574-11030i1GDFTV..GDH206..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH206..05S,06S,09S201712

main16574-11040i1GDFTV..GDH223..IV5201712-202107

main16574-11050i1GDFTV..GDH226201712

main16574-30010i1KDFTV..KDH201201312-201711

main16574-30020i1KDFTV..KDH211,22#201312-201711

main16574-30030i1KDFTV..KDH206201312-201711

main16574-75030i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

main16574-75050i2TRFE..TRH21#,22#201312

16574ACLIP, RADIATOR HOSE, NO.4

main96136-54801×2i1KDFTV..KDH20#,211,22#201312-201711

16577PIPE, RADIATOR, NO.7

main16577-30040i1KDFTV..KDH20#,211,22#201312-201711

16577CPIPE, RADIATOR

main16577-11020i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main16577-30021i1KDFTV..KDH20#,211,22#201312-201711

main16577-75040i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312

16578PIPE, RADIATOR, NO.2

main16578-11020i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main16578-30011i1KDFTV..KDH20#,211,22#201312-201711

main16578-75011i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312

16711SHROUD, FAN

main16711-11330i1GDFTV..GDH201,223..IV5202005-202107

main16711-30081i1KDFTV..KDH20#,211,22#201312-201611

main16711-30082i1GDFTV..GDH20#,211,22#201712-202005

main16711-75230i1TRFE,2TRFE..TRH200,21#,22#201312-202005

main16711-75270i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC202005-202507

16712SHROUD, FAN, NO.2

main16712-75122i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312

7455CAUTION PLATE

→ Go to FIG 74-55

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9009904119

main90099-04119

9009904625

main90099-04625

9011906885

main90119-06885

9011908C79

main90119-08C79

9017906178

main90179-06178

9017908017

main90179-08017

9048016014

main90480-16014

9048023008

main90480-23008

9048040022

main90480-40022

9056008038

main90560-08038

9155380818

main91553-80818

9166160616

main91661-60616

9167380618

main91673-80618

51 parts on this diagram · 15 diagrams in section
