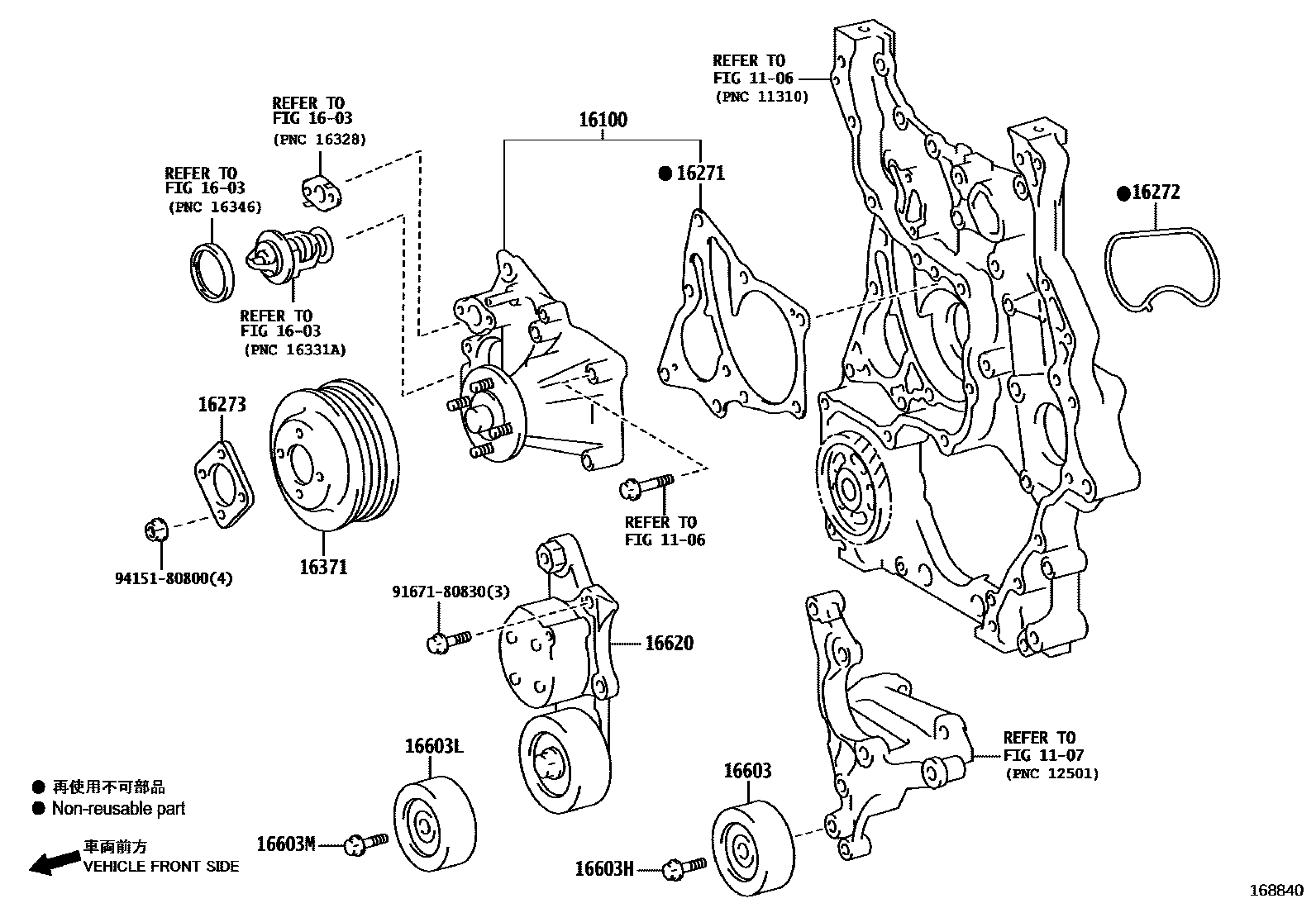

WATER PUMP

0001 1 0002 1 0003 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1107MOUNTING

→ Go to FIG 11-07

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19365i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main16100-39425i1KDFTV..KDH20#,211,22#201312-201407

main16100-39426i1KDFTV..KDH20#,211,22#201407-201711

main16100-79445i1TRFE,2TRFE..TRH200,21#,22#201312-202010

main16100-79515i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU202010-202312

16271GASKET, WATER PUMP

main16271-11010i1GDFTV..GDH201,223..IV5201712-202107

main16271-67020i1KDFTV..KDH20#,211,22#201312-201711

16272GASKET, WATER PUMP, NO.2

main16272-11010i1GDFTV..GDH201,223..IV5201712-202107

16273SPACER, WATER PUMP

main16273-11010i1GDFTV..GDH201,223..IV5201712-202107

16371PULLEY, FAN

main16371-11010i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main16371-30020i1KDFTV..KDH20#,211,22#201312-201711

main16371-75040i1TRFE..TRH200..5F201312-202107

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31040i1TRFE,2TRFE..TRH200,21#,22#201312-201604

main16603-31050i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201605

16603HBOLT(FOR IDLER PULLEY)

main91552-81050i1GDFTV..GDH201,223..IV5201712-202107

16603LPULLEY SUB-ASSY, IDLER, NO.1

main16603-31050i1GDFTV..GDH201,223..IV5201712-202107

16603MBOLT(FOR IDLER PULLEY)

main91552-81050i1GDFTV..GDH201,223..IV5201712-202107

16620TENSIONER ASSY, V-RIBBED BELT

main16620-11010i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main16620-30031i1KDFTV..KDH20#,211,22#201312-201711

9167180830

main91671-80830

9415180800

main94151-80800

15 parts on this diagram · 3 diagrams in section
