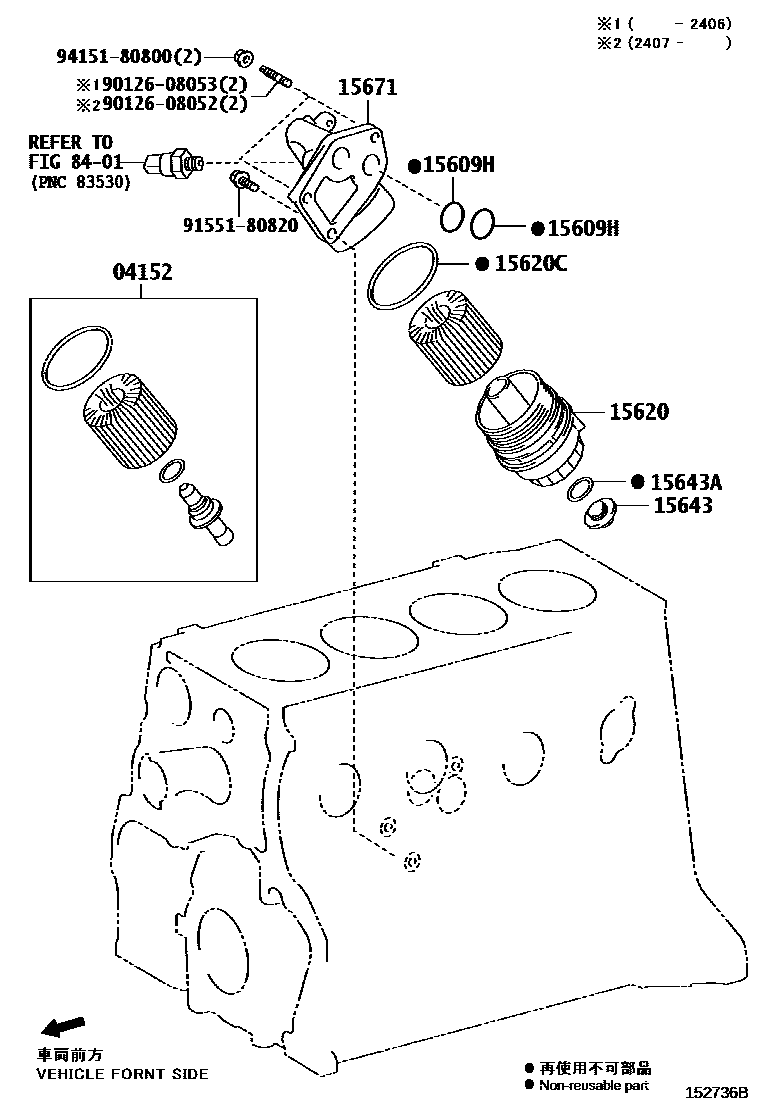

OIL FILTER

0001 1ELEMENT TYPE 0002 1CARTRIDGE TYPE 0003 1 0004 1 0005 1

04152ELEMENT KIT, OIL FILTER

main04152-38010i1TRFE..TRH200..5F201312-202107

15609BRACKET SUB-ASSY, OIL FILTER

main15609-75080i1TRFE..TRH200..5F201312-202107

main15609-75100i2TRFE..TRH21#,22#201312

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-68005i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312

main96723-24030×2i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

15620CAP ASSY, OIL FILTER

main15620-31050i1TRFE..TRH200..5F201312-202107

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i1TRFE..TRH200..5F201312-202107

15643PLUG, OIL FILTER DRAIN

main15643-31050i1TRFE..TRH200..5F201312-202107

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i1TRFE..TRH200..5F201312-202107

15671BRACKET, OIL FILTER

main15671-11010i1GDFTV..GDH201,223..IV5201712-202107

main15671-35010i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202210-202312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9012608052

main90126-08052

9012608053

main90126-08053

9155180820

main91551-80820

9415180800

main94151-80800

13 parts on this diagram · 5 diagrams in section
