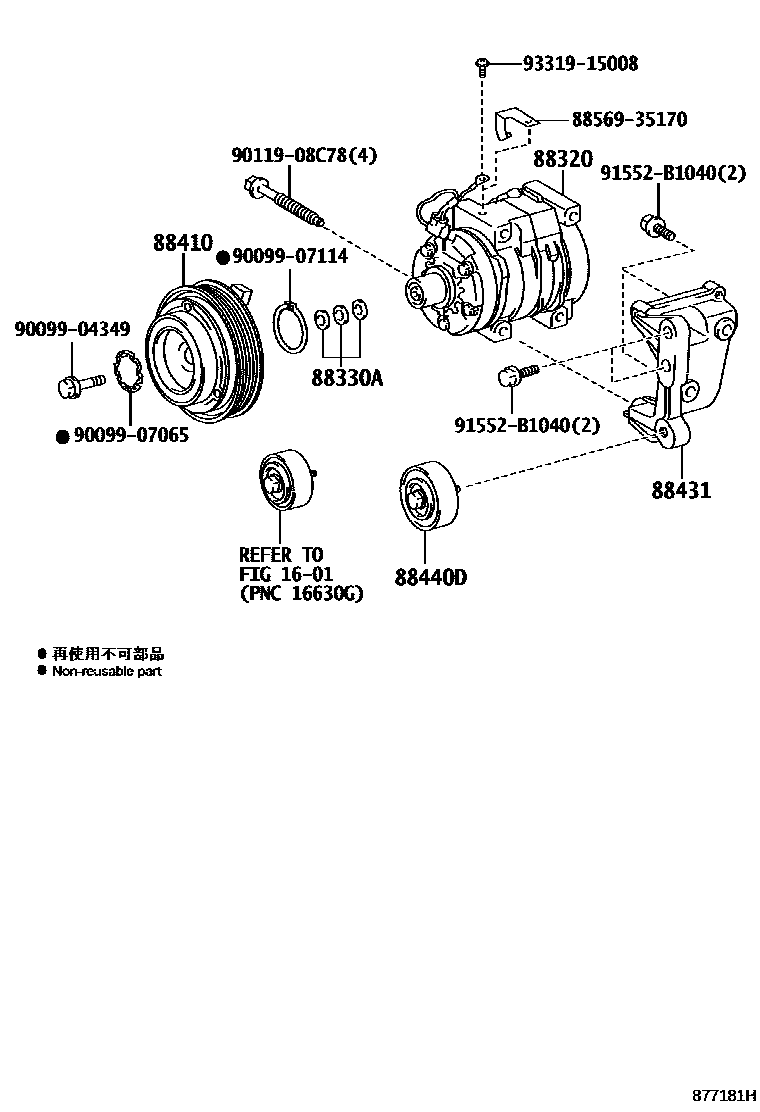

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1

1601WATER PUMP

→ Go to FIG 16-01

88320COMPRESSOR ASSY, COOLER

main88320-25110iKDH20#,220,221,225..DX..CBU; KDH20#..SP200408

main88320-2F020iKDH20#,220,221,225..SG..DX..CBU; KDH20#..IV5;KDH20#,211,222,223,227..05S,15S200408

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iKDH20#,211,22#; KDH20#..SP200408-201312

88410CLUTCH ASSY, MAGNET

main88410-28200iKDH20#,211,22#; KDH20#..SP200408

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26430iTRH200,21#,22#; TRH200..SP; TRH200..SP..4FC200408-201207

main88431-26440iTRH200,21#,22#; TRH200..SP; TRH200..SP..4FC201207-201312

main88431-35250iKDH20#,211,22#; KDH20#..SP200408-201312

88440DPULLEY ASSY, IDLE NO.2

main88440-35120iKDH20#,211,22#; KDH20#..SP200408-201312

8856935170CLAMP (FOR COOLER RELAY)

main88569-35170

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908C78

main90119-08C78

91552B1040

main91552-B1040

9331915008

main93319-15008

13 parts on this diagram · 2 diagrams in section
