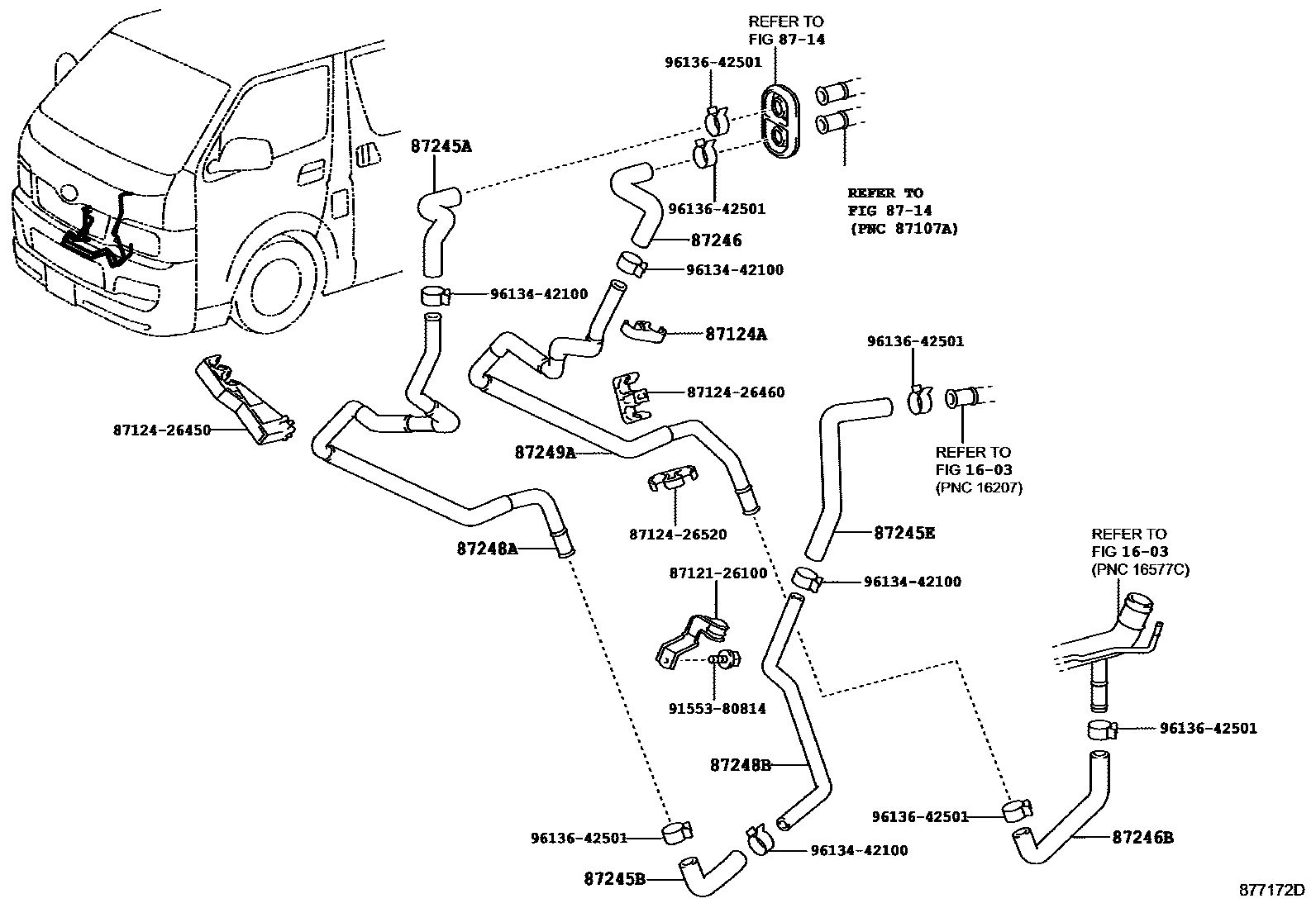

HEATING & AIR CONDITIONING - WATER PIPING

0001 1���� 0003 1����:�������� 0005 1���� 0007 1����:�������� 0008 1����:�������� 0010 1���� 0012 1����:�������� 0014 1���� 0015 1����:�������� 0018 1��:��� 0021 1��:��� 0024 1��:��� 0027 1��:��� 0032 1��:���

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87124ACLAMP, HEATER

main87124-25110iKDH20#,TRH200200408-201312

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-26A90iKDH20#,TRH200200408-201312

main87245-26B20iKDH211,22#,TRH21#,22#200408-201312

87245BHOSE, HEATER WATER, INLET B

main87245-26B40iTRH200; TRH200..(06S,09S)..CBU200408-201312

main87245-26B80iTRH21#,22#200408-201312

main87245-26C00iKDH200,205,220,225..(06S,09S)..CBU; KDH201,206..DX..CBU;KDH200,205,220,221,222,225,227200408-201312

87245EHOSE, HEATER WATER, INLET E

main87245-26B60iTRH200,21#,22#; TRH200,221,226..(02S,06S,09S)..CBU200408-201312

main87245-26C10×2iKDH20#,221..(06S,09S)..CBU; KDH20#..IV5;KDH20#,211,223..05S,15S201310-201311

87246HOSE, HEATER WATER, OUTLET

main87245-26B30iKDH211,22#,TRH21#,22#200408-201312

main87245-26D60iKDH20#,TRH200200408-201312

87246BHOSE, HEATER WATER, OUTLET B

main87245-26B50iTRH200; TRH200..(06S,09S)..CBU200408-201312

main87245-26B90iTRH21#,22#200408-201312

main87245-26C20iKDH201,206,221..(06S,09S)..CBU; KDH201,206..IV5;KDH201,206,211,223..05S,15S200408-201310

main87245-26C80iKDH20#,220,221,225..DX..CBU200408-201312

87248APIPE, HEATER WATER INLET, A

main87248-26400iKDH20#,TRH200200408-201312

main87248-26440iKDH211,22#,TRH21#,22#200408-201312

87248BPIPE, HEATER WATER INLET, B

main87248-26460iTRH200..(06S,09S)..CBU; TRH200..SGL;TRH200..IV5200408-201312

main87248-26480iTRH200..DX..CBU200408-201312

main87248-26500supersedes 87248-26520iTRH21#,223,224,228,229200408-201312

main87248-26550iKDH20#..(06S,09S)..CBU; KDH20#..SGL;KDH20#..IV5200408-200709

main87248-26551iKDH20#..(06S,09S)..CBU; KDH20#..SGL;KDH20#..IV5200709-201008

main87248-26552iKDH20#..(06S,09S)..CBU; KDH20#..SGL;KDH20#..IV5201108-201310

main87248-26553iKDH20#..(06S,09S)..CBU; KDH20#..SGL;KDH20#..IV5201310-201312

main87248-26570iKDH20#,220,221,225..DX..CBU200408-201312

main87248-26580iKDH220,225; KDH222,227200501-200610

main87248-26581iKDH211,222,223,227; KDH220,221,225200610-201008

main87248-26582iKDH211,223; KDH221201008-201108

main87248-26583iKDH211201310-201312

87249APIPE, HEATER WATER OUTLET, A

main87248-26410iKDH20#,TRH200200408-201312

main87248-26450iKDH211,22#,TRH21#,22#200408-201312

8712126100BRACKET, HEATER, FRONT RH

main87121-26100

8712426450CLAMP, HEATER

main87124-26450

8712426460CLAMP, HEATER

main87124-26460

8712426520CLAMP, HEATER

main87124-26520

9155380814

main91553-80814

9613442100

main96134-42100

9613642501

main96136-42501

18 parts on this diagram · 14 diagrams in section
