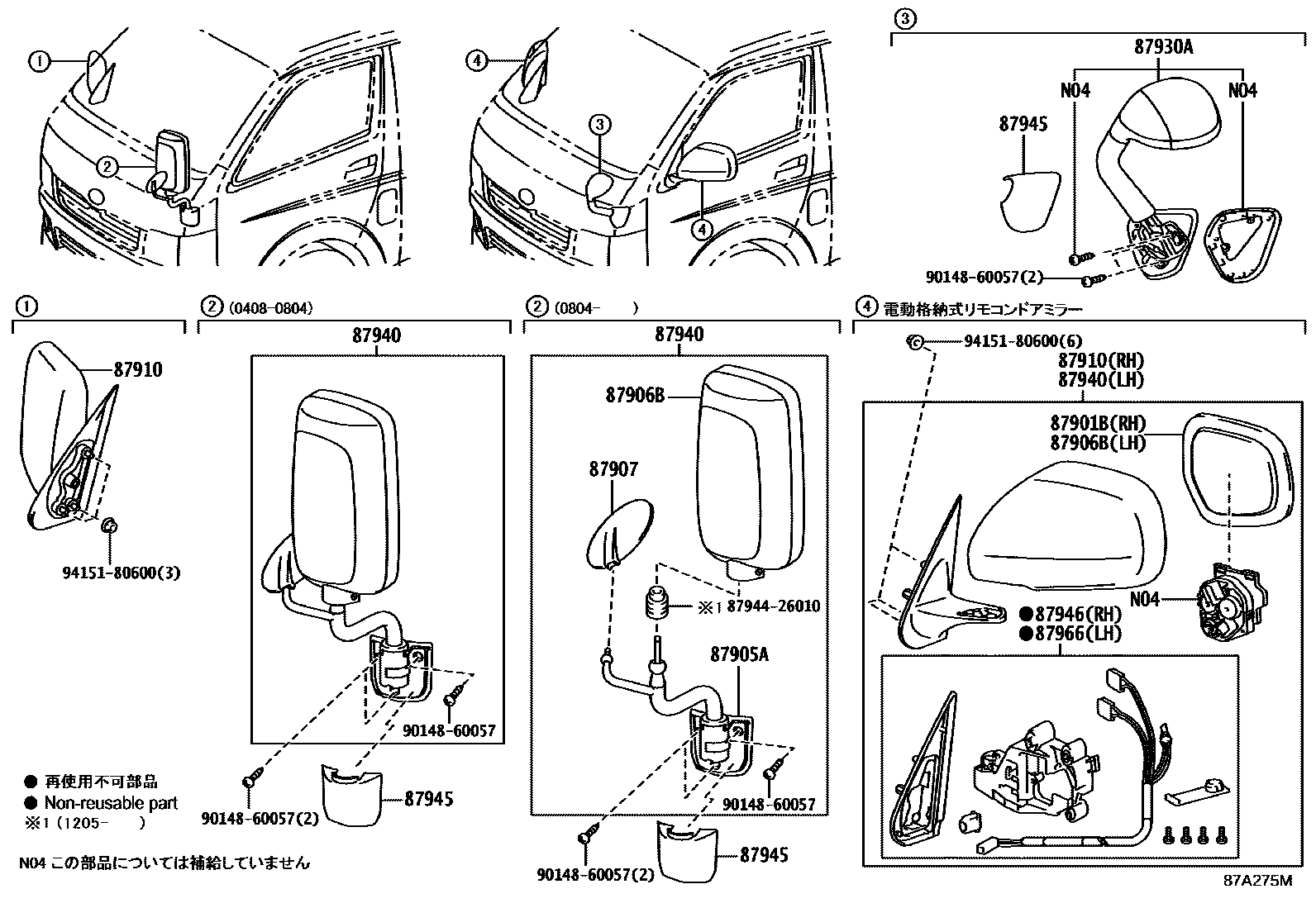

MIRROR

0001 1������ 0002 1������,���������

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-26430iTRH221,226..02S;KDH201,206,211,TRH21#..GL,SGL200501-201008

main87931-6A200iKDH223,TRH223,228..CBU;KDH20#,221,TRH200,214,219,221,226..(03S,06S,09S,10S)..DX; KDH223,TRH223,228..IV5; TRH221,226..02S;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL201008-201312

87905AARM SUB-ASSY, OUTER REAR VIEW MIRROR, LH

main87905-26010iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S200804-201312

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87901-26010iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S200804-201312

main87961-26540iTRH221,226..02S;KDH201,206,211,TRH21#..GL,SGL200501-201312

87907MIRROR SUB-ASSY, OUTER UNDER VIEW

main87907-26060iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S200804-201312

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-26400iKDH201,206,TRH200,214,219..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S200408-201312

main87910-26430supersedes 87910-26400iTRH221,226..02S;KDH201,206,211,TRH21#..GL,SGL200501-201008

main87910-26530iKDH223,TRH223,228..IV5; TRH221,226,229..02S,10S;KDH20#,211,TRH200,21#,224..(GC,GL,SGL)..CBU201008-201312

main87910-26540supersedes 87910-26530iTRH224..IV5201205-201312

main87910-26510iKDH223,TRH223,228..CBU;KDH20#,221,TRH200,214,219,221,226..(03S,06S,09S,10S)..DX200709-201008

87930AMIRROR ASSY, OUTER UNDER VIEW

main87930-26020iTRH221,226..02S;KDH201,206,211,TRH21#..GL,SGL200501-201312

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-26521iKDH201,206,TRH200,214,219..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S200408-200803

main87940-26522iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S200804-201204

main87940-26523iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S201205-201312

main87940-26540supersedes 87940-26521iTRH229;TRH200,224..(GC,SGL)..CBU200709-201312

main87940-26630iTRH224..IV5201205-201312

87945COVER, OUTER MIRROR, LH

main87945-26010iKDH201,206,TRH200,214,219..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S200408-201312

main87945-26020supersedes 87945-26010iTRH221,226..02S;KDH201,206,211,TRH21#..GL,SGL200501-201312

87946RETRACTOR, OUTER MIRROR, RH

main87946-26430iTRH221,226..02S;KDH201,206,211,TRH21#..GL,SGL200501-201312

87966RETRACTOR, OUTER MIRROR, LH

main87966-26540iTRH221,226..02S;KDH201,206,211,TRH21#..GL,SGL200501-201312

8794426010COVER, FRONT FENDER SIDE VIEW DEVICE, LH

main87944-26010

9014860057

main90148-60057

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
