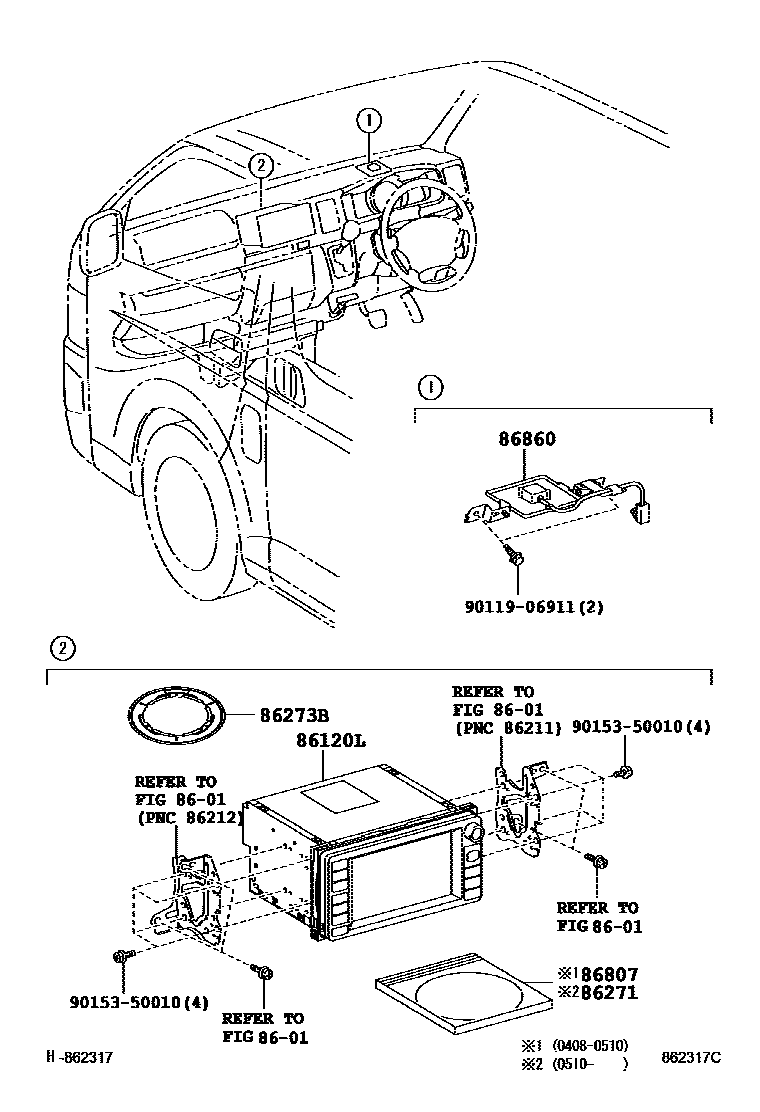

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-26030iKDH20#,TRH200..SGL; TRH224,229200512-200603

main86100-26031iKDH20#,TRH200..SGL; TRH224,229200604-200608

main86100-26032iKDH20#,TRH200..SGL; TRH224,229200609-200703

main86100-26033iKDH20#,TRH200..SGL; TRH224,229200704-200708

main86100-26034iKDH20#,211,TRH200,21#..GL,SGL; TRH224,229200709-200803

main86100-26035iKDH20#,211,TRH200,21#..GL,SGL; TRH224,229200804-200808

main86100-26036iKDH20#,211,TRH200,21#..GL,SGL; TRH224,229200809-200904

main86100-26037iKDH20#,211,TRH200,21#..GL,SGL; TRH224,229200905-200908

main86100-26038iKDH20#,211,TRH200,21#..GL,SGL; TRH224,229200909-201005

main86100-26039iKDH20#,211,TRH200,21#..GL,SGL; TRH224,229201005-201008

main86100-28060iTRH224,229200512-200603

main86100-28061iTRH224,229200604-200608

main86100-28062iTRH224,229200609-200703

main86100-28063iTRH224,229200704-200708

main86100-28064iTRH224,229200709-200803

main86100-28065iTRH224,229200804-200808

main86100-28066iTRH224,229200809-200904

main86100-28067iTRH224,229200905-200908

main86100-28068iTRH224,229200909-201005

main86100-28069iTRH224,229201005-201008

main86120-1A210iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX..CBU; KDH20#,222,227,TRH200,223,224,228,229..IV5200408-200512

main86120-26060iKDH222,223,227,TRH223,228..GL200512-201008

main86120-44140iKDH222,227,TRH223,224,228,229..(GC,GL)..CBU; KDH222,227,TRH223,224,228,229..IV5200501-200512

main86120-52650iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX200512-201008

86271DISC, DISC PLAYER

main86271-13064iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX; KDH222,227,TRH223,228..GL200512-200603

main86271-13065iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX; KDH222,227,TRH223,228..GL200604-200608

main86271-13066iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX; KDH222,227,TRH223,228..GL200609-200703

main86271-13067iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX; KDH222,227,TRH223,228..GL200704-200708

main86271-13068iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX; KDH223,TRH223,228..GL200709-200803

main86271-13069iKDH223,TRH223,228..GL200804-200809

main86271-52070iKDH223,TRH223,228..GL200810-200903

main86271-52071iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX; KDH223,TRH223,228..GL200904-200908

main86271-52072iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX; KDH223,TRH223,228..GL200909-201004

main86271-52073iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX; KDH223,TRH223,228..GL201004-201008

86273BADAPTER, DISC PLAYER

main86273-58010iKDH20#,211,TRH200,21#..GL,SGL; TRH224,229200512-201008

86807DISC KIT, CD-ROM

main86807-12030iKDH20#,TRH200,21#..DX..CBU; KDH20#,TRH200..IV5; KDH20#,TRH200..SGL200408-200410

main86807-12031iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX..CBU; KDH20#,222,227,TRH200,223,224,228,229..IV5; KDH20#,TRH200..SGL200410-200508

main86807-12032iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX..CBU; KDH20#,222,227,TRH200,223,224,228,229..IV5; KDH20#,TRH200..SGL; KDH222,227,TRH223,224,228,229..(GC,GL)..CBU; KDH222,227,TRH223,224,228,229..IV5200509-200512

86860ANTENNA ASSY, NAVIGATION

main86860-26060iKDH20#,211,22#,TRH200,21#,22#..03S,05S,06S,09S,10S,15S200408-201008

9011906911

main90119-06911

9015350010

main90153-50010

8 parts on this diagram · 1 diagram in section
