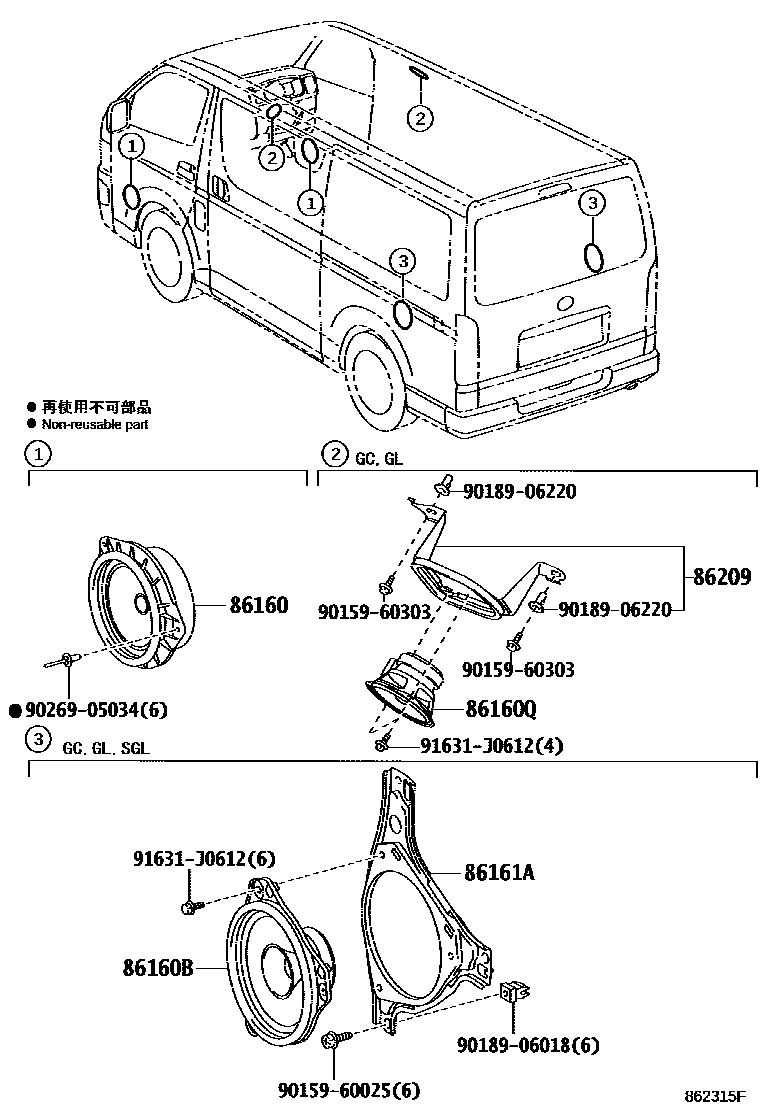

SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-26550×2iKDH200,205,TRH200..DX..CBU;KDH201,206,22#,TRH214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX; TRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL200408-201312

86160BSPEAKER ASSY, REAR

main86160-28550×2iKDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL200408-201008

main86160-52110×2iKDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL201008-201312

86160QSPEAKER ASSY, ROOF

main86160-52110×2iKDH222,223,227,TRH223,224,228,229..GC,GL200501-201312

86161ABRACKET, SPEAKER, REAR

main86161-26090iKDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL200408-201008

main86161-26091iKDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL201008-201312

main86161-26100iKDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL200408-201008

main86161-26101iKDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL201008-201312

86209BRACKET SUB-ASSY, SPEAKER

main86209-26010×2iKDH222,223,227,TRH223,224,228,229..GC,GL200501-201204

main86209-26011×2iKDH223,TRH223,224,228,229..GC,GL201205-201312

9015960025

main90159-60025

9015960303

main90159-60303

9018906018

main90189-06018

9018906220

main90189-06220

9026905034

main90269-05034

91631J0612

main91631-J0612

11 parts on this diagram · 2 diagrams in section
