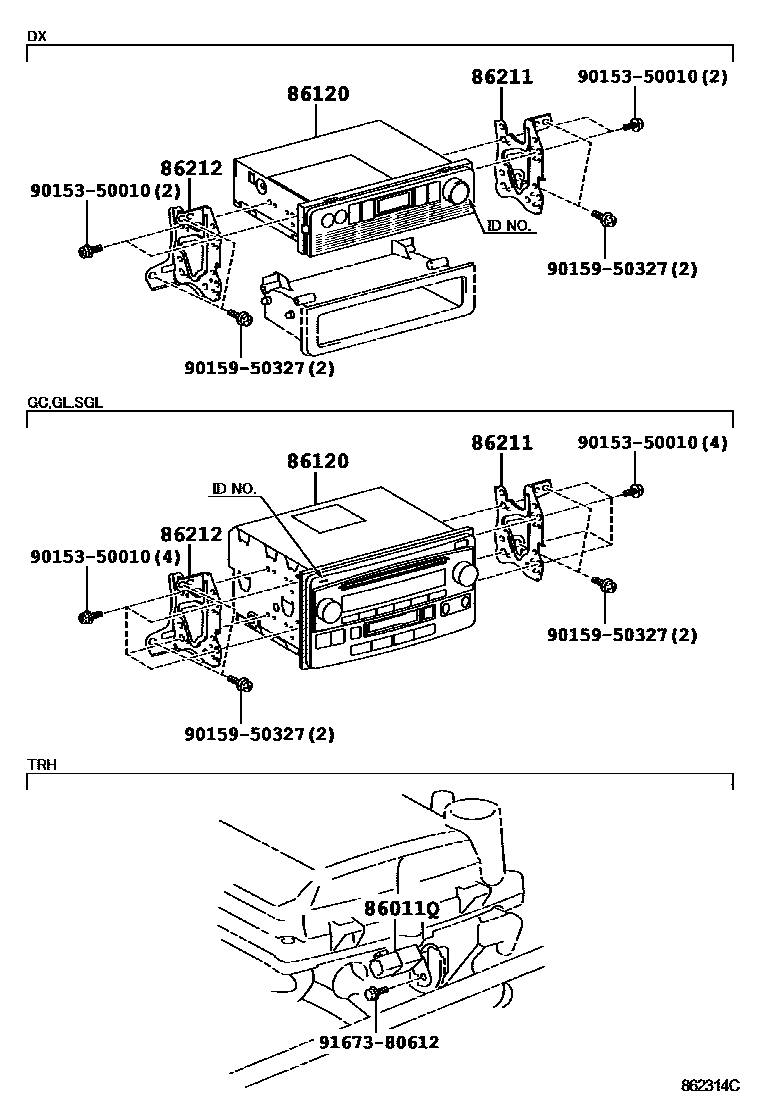

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011QCONDENSER, RADIO SETTING

main90980-04154iTRH200,21#,22#200408-201312

86120RECEIVER ASSY, RADIO

main86120-26170iKDH20#,211,TRH200,21#..GL,SGL; KDH223,TRH223,224,228,229..GC,GL; TRH229..CBU;KDH223,TRH223,224,228..GC,GL201008-201312

main86120-63021iKDH222,223,227,TRH223,224,228,229..GC,GL200501-201008

main86120-26050iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX201008-201312

86211BRACKET, RADIO, NO.1

main86211-26100iKDH20#,211,22#,TRH200,21#,22#200408-201312

86212BRACKET, RADIO, NO.2

main86212-26090iKDH20#,211,22#,TRH200,21#,22#200408-201312

9015350010

main90153-50010

9015950327

main90159-50327

9167380612

main91673-80612

7 parts on this diagram · 2 diagrams in section
