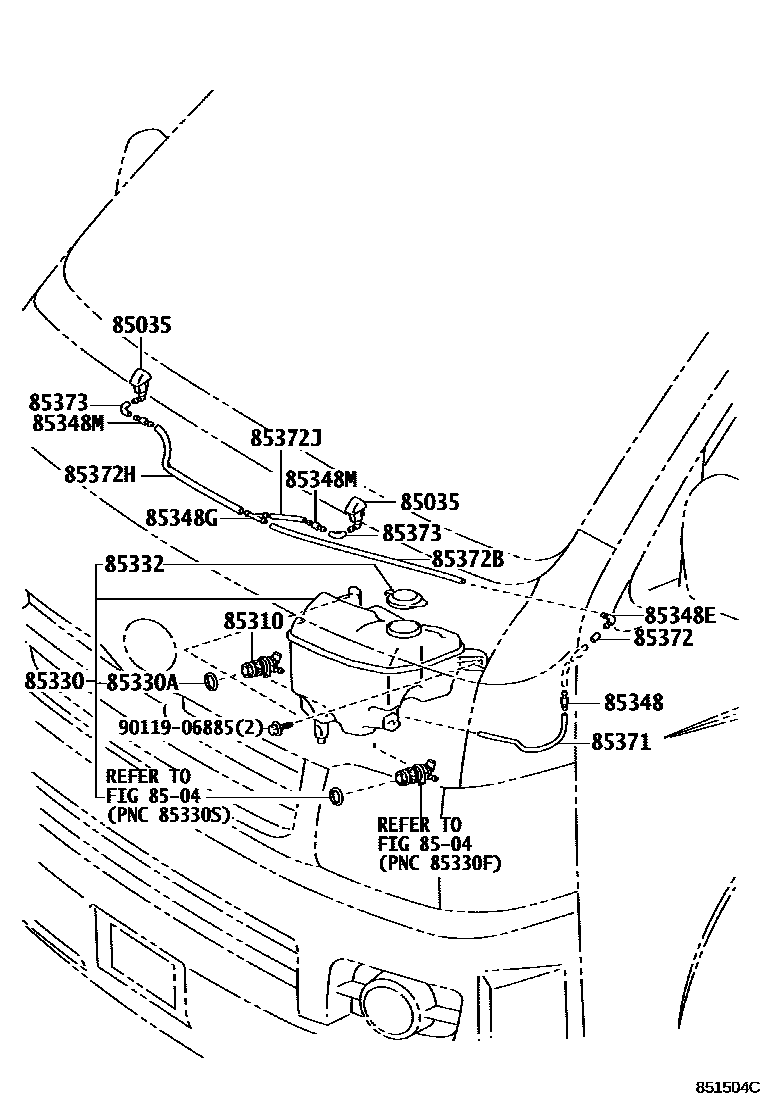

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-26221×2iKDH20#,TRH200200408-201312

main85381-26230iKDH211,22#,TRH21#,22#200408-201312

main85381-26240iKDH211,22#,TRH21#,22#200408-201312

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iKDH20#,211,22#,TRH200,21#,22#200408-201312

85330JAR ASSY, WINDSHIELD WASHER

main85315-26100iKDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200408-201312

main85315-26110iKDH20#,TRH200..03S200408-201312

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iKDH20#,211,22#,TRH200,21#,22#200408-201312

85332CAP, WINDSHIELD WASHER JAR

main85316-34050iKDH20#,211,22#,TRH200,21#,22#200408-201312

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iKDH20#,211,22#,TRH200,21#,22#200408-201312

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iKDH20#,211,22#,TRH200,21#,22#200408-201312

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iKDH20#,TRH200200408-201312

main85348-14390iKDH211,22#,TRH21#,22#200408-201312

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iKDH20#,211,22#,TRH200,21#,22#; KDH20#,TRH200..V1..03S200408-201312

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iKDH20#,211,22#,TRH200,21#,22#200408-201312

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iKDH20#,TRH200; KDH211,22#,TRH21#,22#200408-201312

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iKDH211,22#,TRH21#,22#200408-201210

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iKDH20#,TRH200; KDH211,22#,TRH21#,22#200408-201312

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85336-12230×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

9011906885

main90119-06885

17 parts on this diagram · 1 diagram in section
