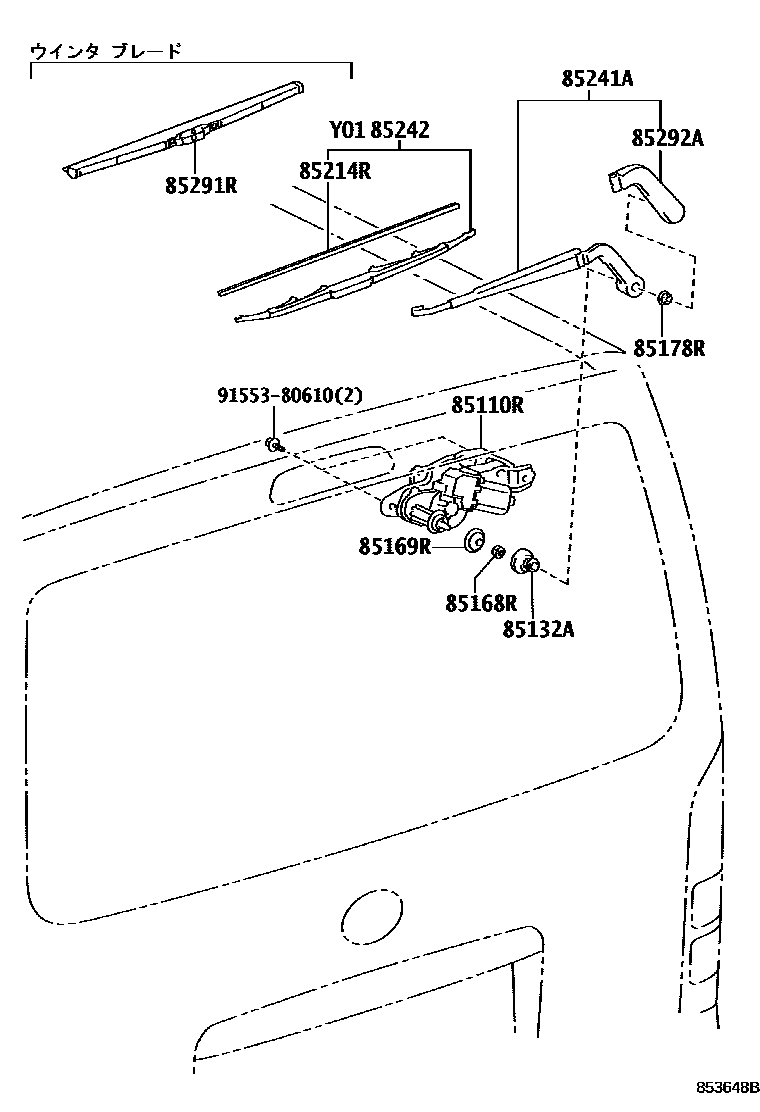

REAR WIPER
85110RMOTOR ASSY, REAR WIPER
main85130-26121iKDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200408-201312
85132ACOVER, REAR WIPER SHAFT
main85132-53010iKDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200408-201312
85168RNUT, REAR WIPER LINK PIVOT, NO.1
main85113-26050iKDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200408-201312
85169RWASHER, REAR WIPER LINK PIVOT, NO.1
main85134-53010iKDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200408-201312
85178RNUT (FOR REAR WIPER ARM SETTING)
main90179-06125iKDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200408-201312
85214RRUBBER, REAR WIPER
main85214-12300iKDH20#,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200408-200605
main85214-12301iKDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200606-201312
85241AARM, REAR WIPER
main85241-26061iKDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200408-201312
85242BLADE, RR WIPER
main85242-26040iKDH20#,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200408-200605
main85242-26041iKDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200606-201312
85291RBLADE,REAR WIPER, WINTER
85292ACAP, REAR WIPER ARM HEAD
main85292-44020iKDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S; KDH20#,TRH200..V1..03S200408-201312
9155380610
main91553-80610
11 parts on this diagram · 1 diagram in section
