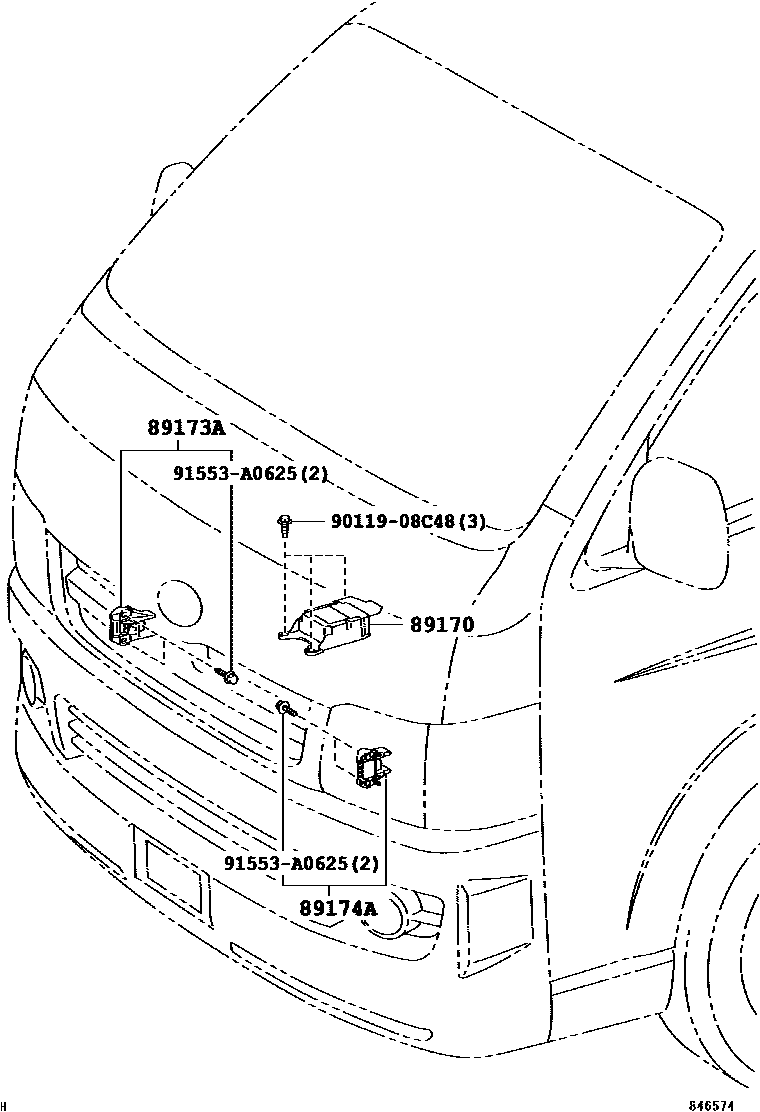

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-26280supersedes 89170-26270iTRH214,219,221,224,226,229..02S,10S200408-201112

main89170-26330supersedes 89170-26320iKDH211,22#,TRH211,216,221,223,226,228..05S,06S,15S; TRH214,219,221,224,226,229..02S,10S201201-201312

main89170-26260supersedes 89170-26250iKDH20#,TRH200200408-201112

main89170-26270iTRH214,219..DX200408-201112

main89170-26310supersedes 89170-26300iKDH20#,TRH200201201-201312

main89170-26320iKDH211,22#,TRH211,216,221,223,226,228..05S,06S,15S; TRH214,219..DX201201-201312

89173ASENSOR, AIRBAG, FRONT RH

main89173-09270iKDH20#,22#,TRH200,21#,22#200408-200612

main89173-29245iKDH20#,211,22#,TRH200,21#,22#200701-201312

89174ASENSOR, AIRBAG, FRONT LH

main89173-09270iKDH20#,22#,TRH200,21#,22#200408-200612

main89173-29245iKDH20#,211,22#,TRH200,21#,22#200701-201312

9011908C48

main90119-08C48

91553A0625

main91553-A0625

5 parts on this diagram · 1 diagram in section
