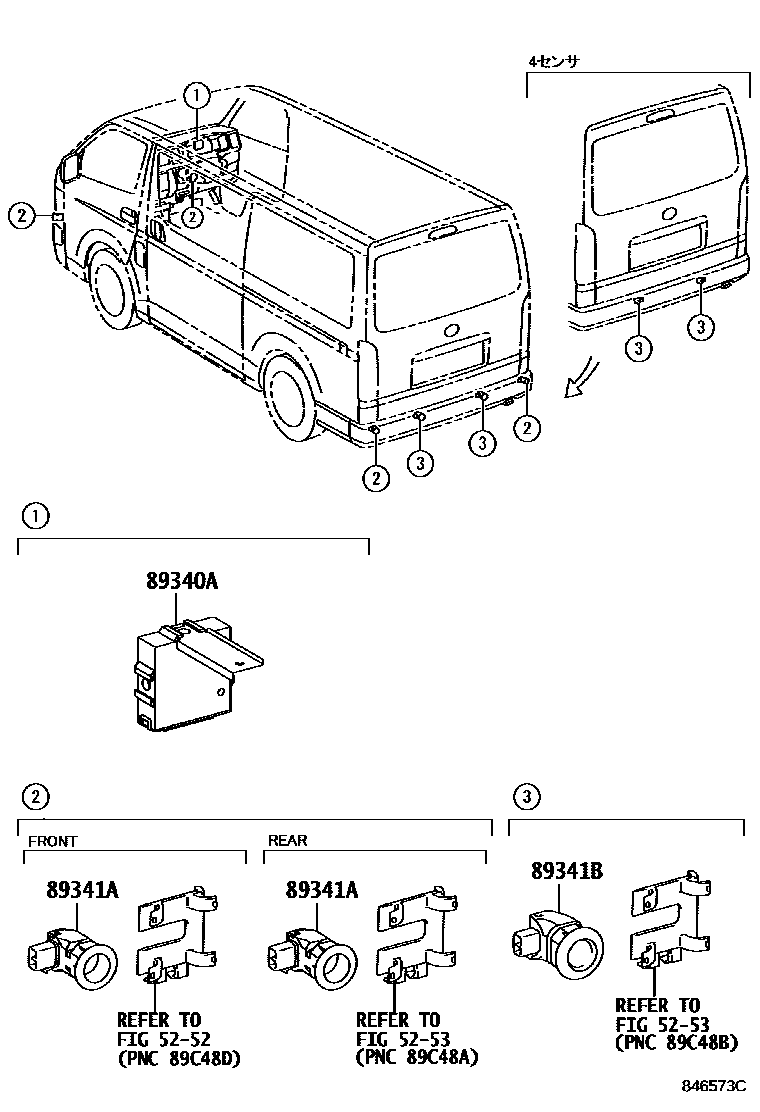

CLEARANCE & BACK SONAR

0001 1 0002 1

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-26180iKDH211,TRH211,216200709-201008

main89340-26200iKDH20#,TRH200..SP; KDH20#..5D..03S..4FC; KDH211,TRH211,216; KDH223,TRH223,224,228,229..IV5;KDH20#,221,TRH200,221,226..03S,05S,06S,09S201008-201312

main89340-26170iKDH222,223,227,TRH214,219,22#..(02S,10S,15S)..CBU200408-201008

main89340-26190iKDH223,TRH214,219,22#..(02S,10S,15S)..CBU201008-201312

89341ASENSOR, ULTRASONIC, NO.1

main89341-35010×2iKDH20#,TRH200..SP; KDH20#..5D..03S..4FC; KDH211,TRH211,216; KDH223,TRH214,219,22#..(02S,10S,15S)..CBU; KDH223,TRH223,224,228,229..IV5;KDH20#,221,TRH200,221,226..03S,05S,06S,09S201008-201312

main89341-44130×2iKDH211,TRH211,216200709-201008

89341BSENSOR, ULTRASONIC, NO.2

main89341-26360×2iKDH211,TRH211,216200709-200807

main89341-26361×2iKDH211,TRH211,216; KDH223,TRH214,219,22#..(02S,10S,15S)..CBU; KDH223,TRH223,224,228,229..IV5;KDH20#,221,TRH200,221,226..03S,05S,06S,09S200808-201008

main89341-35010×2iKDH20#,TRH200..SP; KDH20#..5D..03S..4FC; KDH211,TRH211,216; KDH223,TRH214,219,22#..(02S,10S,15S)..CBU; KDH223,TRH223,224,228,229..IV5;KDH20#,221,TRH200,221,226..03S,05S,06S,09S201008-201312

5 parts on this diagram · 2 diagrams in section
