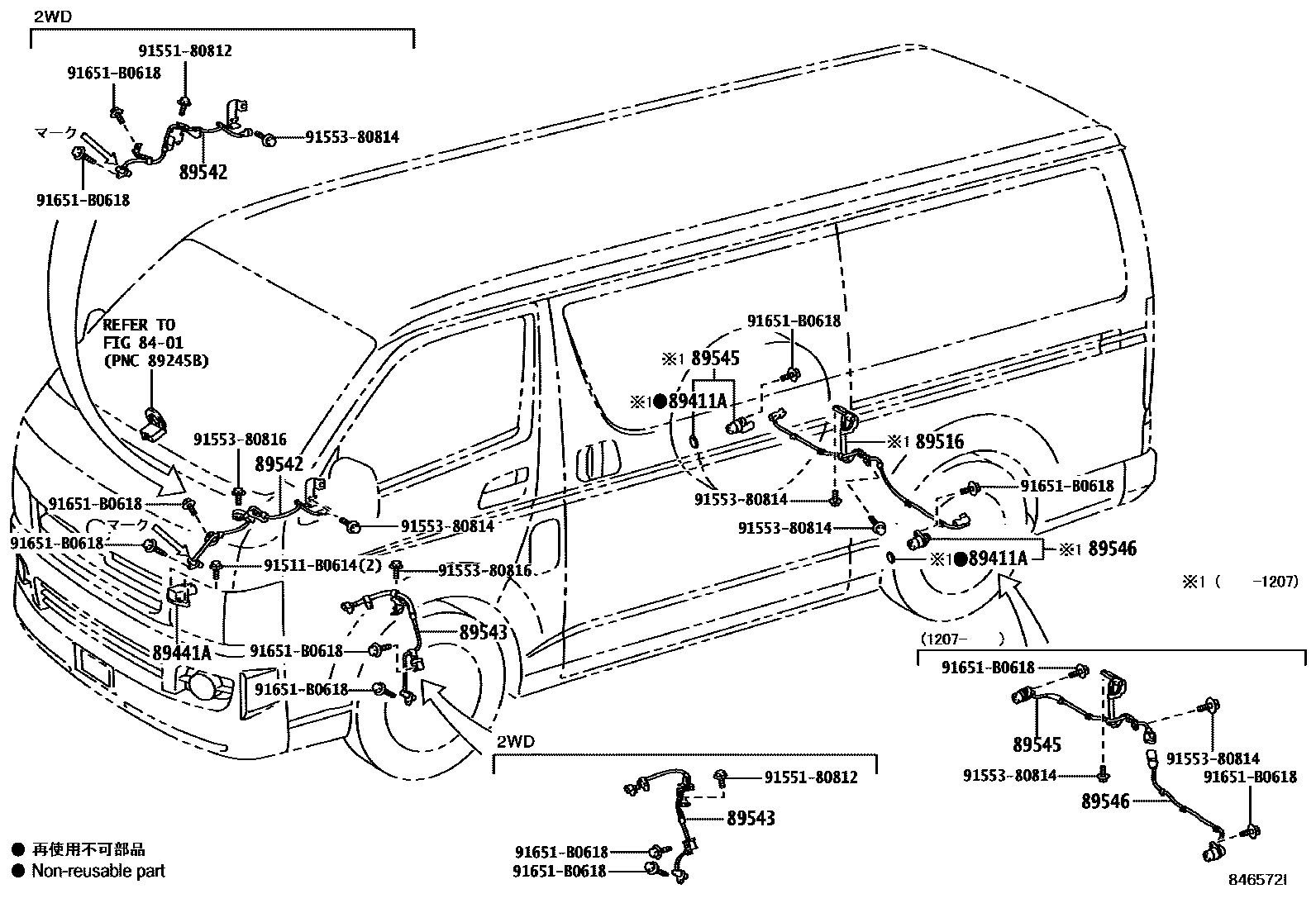

ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89411ARING, O (FOR SPEED SENSOR)

main96723-19021×2iKDH20#,211,22#,TRH200,21#,22#200408-201207

89441ASENSOR, DECELERATION

main89441-60010iKDH205,206,225,227,TRH216,219,226,228,229200408-201110

main89441-60030iKDH206,TRH216,219,226,228,229201111-201312

89516WIRE, SKID CONTROL SENSOR

main89516-26070iKDH20#,TRH200200408-201008

main89516-26080iKDH211,22#,TRH21#,22#200408-201008

main89516-26090iKDH20#,TRH200201008-201207

main89516-26100iKDH211,22#,TRH21#,22#201008-201207

89542SENSOR, SPEED, FRONT RH

main89542-26120iKDH200,220,222,TRH200,214,221,223,224200408-200610

main89542-26130iKDH205,225,227,TRH219,226,228,229200408-200610

main89542-26140iKDH200,220,222,TRH200,214,221,223,224200610-200709

main89542-26150iKDH205,225,227,TRH219,226,228,229200610-200709

89543SENSOR, SPEED, FRONT LH

main89543-26150iKDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224200408-201312

main89543-26160iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

89545SENSOR, SPEED, REAR RH

main89545-26080iKDH20#,211,22#,TRH200,21#,22#200408-201207

main89545-26110iKDH20#,TRH200201207-201312

main89545-26120iKDH211,22#,TRH21#,22#201207-201312

89546SENSOR, SPEED, REAR LH

main89546-26090iKDH20#,211,22#,TRH200,21#,22#200408-201207

main89546-26120iKDH20#,TRH200201207-201312

main89546-26130iKDH211,22#,TRH21#,22#201207-201312

91511B0614

main91511-B0614

9155180812

main91551-80812

9155380814

main91553-80814

9155380816

main91553-80816

91651B0618

main91651-B0618

13 parts on this diagram · 1 diagram in section
