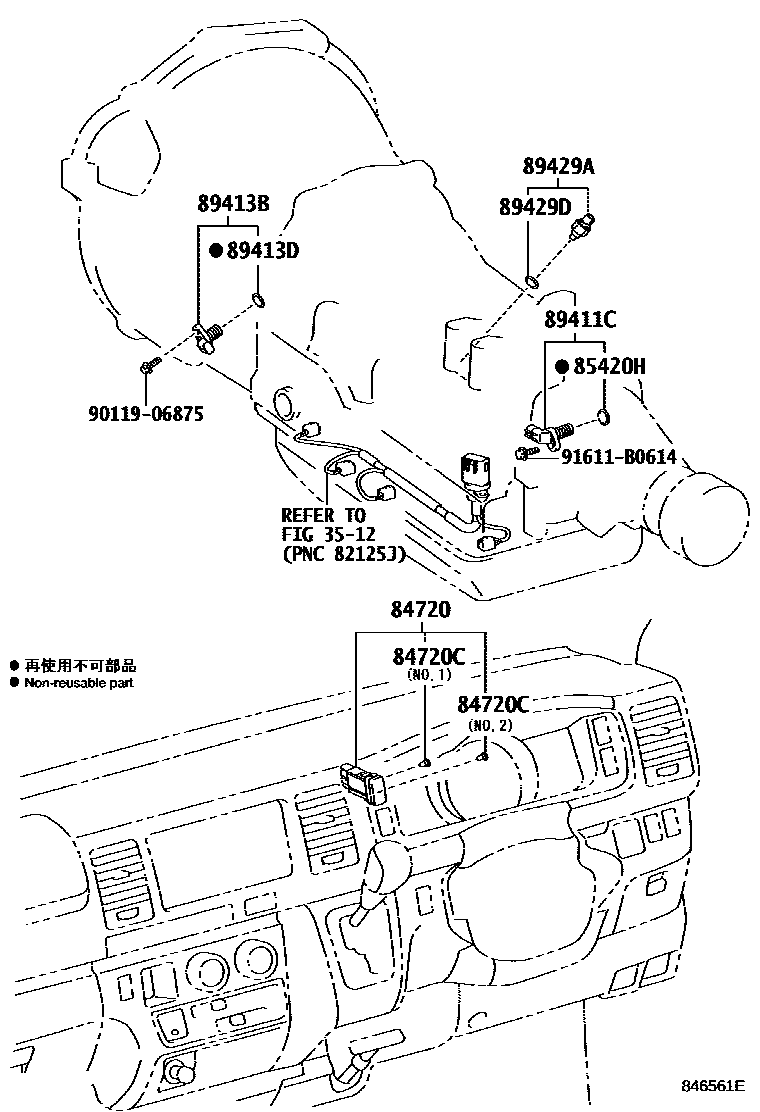

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0005 1

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

84720SWITCH ASSY, PATTERN SELECT

main84720-26050iTRH200..4FC200408-201312

84720CBULB(FOR PATTERN SELECT SWITCH)

main90010-01039iTRH200..4FC200408-201312

main90010-01098iTRH200..4FC200408-201312

85420HRING, O(FOR SPEED SENSOR)

main90301-11008iKDH20#,211,22#,TRH21#,22#..4FC; TRH200..4FC200408-201312

89411CSENSOR, SPEED

main89411-50010iKDH20#,211,22#,TRH21#,22#..4FC; TRH200..4FC200408-201312

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-22010iTRH200..4FC200408-201312

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iTRH200..4FC200408-201312

89429ASENSOR, TEMPERATURE

main89429-25010iKDH20#,211,22#..4FC200709-201312

main89429-34010iKDH200,205,220,222,225,227,TRH200..4FC200408-201312

main89429-35090iTRH21#,22#200408-201312

89429DRING, O(FOR TEMPERATURE SENSOR)

main90301-11006iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

9011906875

main90119-06875

91611B0614

main91611-B0614

11 parts on this diagram · 5 diagrams in section
