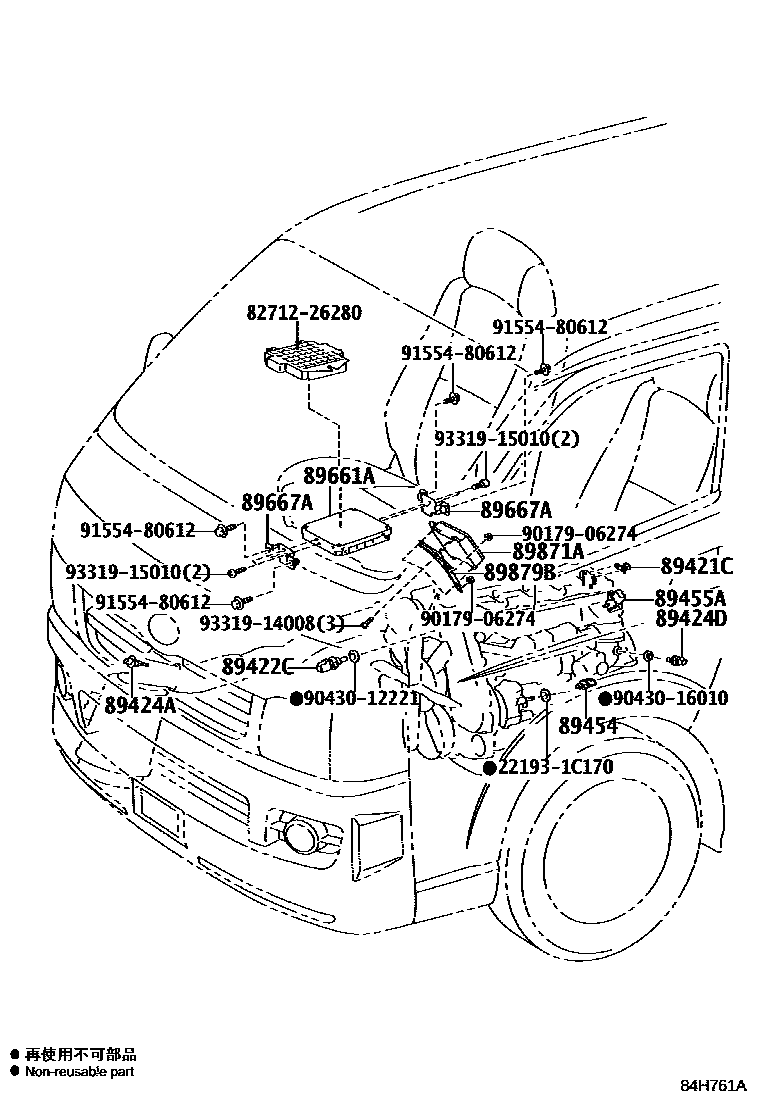

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71020iKDH20#,22#200408-200709

main89421-71030iKDH20#,211,22#200709-201312

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iKDH20#,211,22#200408-201312

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iKDH20#,22#200408-200709

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iKDH20#,211,22#200408-201312

89454SENSOR, FUEL TEMPERATURE

main89454-20010iKDH20#,211,22#200509-201312

main89454-60010iKDH20#,22#200408-200508

89455ASENSOR, EGR VALVE POSITION

main89455-35020iKDH20#,211,22#200408-201008

89661ACOMPUTER, ENGINE CONTROL

main89661-26F80iKDH201..5F201008-201205

main89661-26F90iKDH206..5F201008-201205

main89661-26G00iKDH20#,211,22#..4FC201008-201205

main89661-26L00iKDH201..5F201205-201312

main89661-26L10iKDH206..5F201205-201312

main89661-26L20iKDH20#,211,22#..4FC201205-201312

main89661-26B90iKDH20#,22#..4FC; KDH20#..SP..4FC200408-200709

main89661-26C10iKDH20#..5F; KDH20#..SP..5F200408-200709

main89661-26E90iKDH201..5F; KDH201..SP..5F200709-201008

main89661-26F00supersedes 89661-26E70iKDH206..5F; KDH206..SP..5F200709-201008

main89661-26F10iKDH20#,211,22#..4FC; KDH20#..5D..03S..4FC; KDH20#..SP..4FC200709-201008

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-26140×2iKDH20#,22#200408-200709

main89667-26160iKDH20#,211,22#200709-201312

89871ADRIVER, INJECTOR

main89871-20080iKDH20#,211,22#201107-201301

main89871-25010iKDH20#,211,22#200709-201008

main89871-26020iKDH20#,211,22#201008-201106

main89871-26030iKDH20#,211,22#201301-201312

main89871-71010iKDH20#,22#200408-200709

89879BBRACKET, INJECTOR DRIVER

main89879-26020iKDH20#,22#200408-200709

main89879-26030iKDH20#,211,22#201008-201212

main89879-26050iKDH20#,211,22#200709-201008

main89879-26060iKDH20#,211,22#201301-201312

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

8271226280CLAMP, WIRING HARNESS

main82712-26280

9017906274

main90179-06274

9043012221

main90430-12221

9043016010

main90430-16010

9155480612

main91554-80612

9331914008

main93319-14008

9331915010

main93319-15010

18 parts on this diagram · 3 diagrams in section
