BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1 0004 1

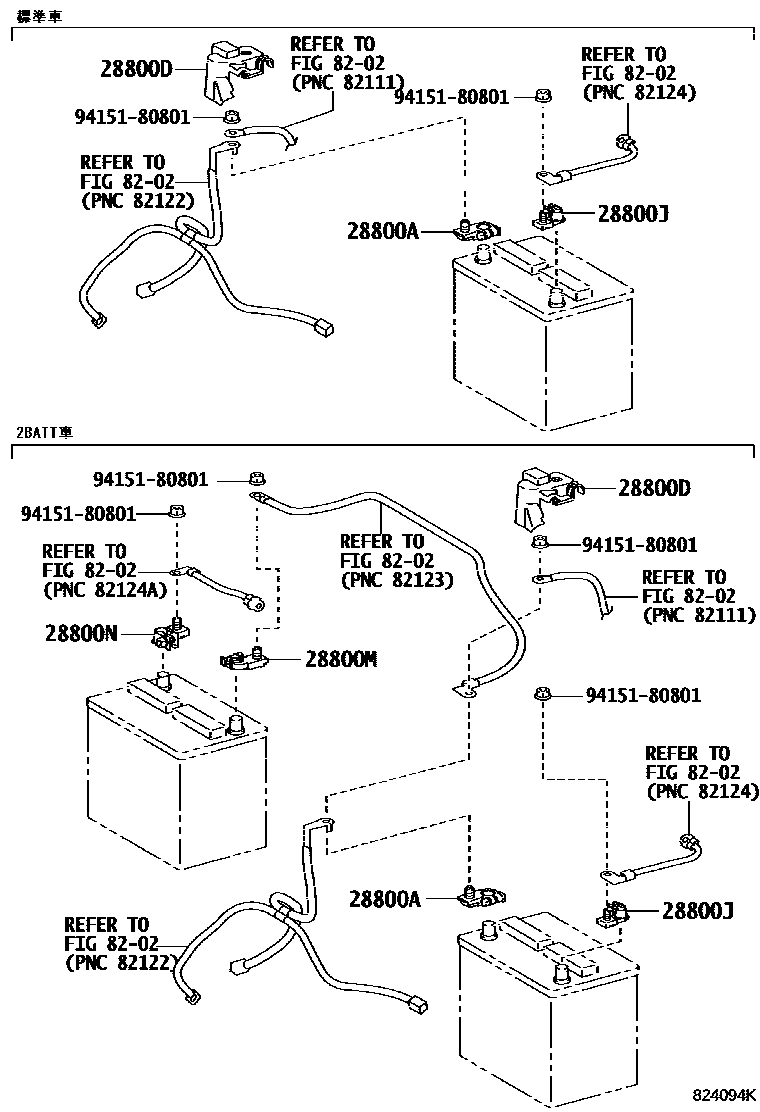

28800ATERMINAL, BATTERY POSITIVE

main90982-05064i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#200408-201312

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-26150i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main82821-26160i1TRFE,2TRFE..TRH200,21#,22#200408-201312

28800JTERMINAL, BATTERY NEGATIVE

main90982-06056i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#200408-201312

28800MTERMINAL, BATTERY POSITIVE

main90982-05064i1KDFTV,2KDFTV..KDH20#,211,22#..CBU; 1KDFTV,2KDFTV..KDH20#,222,223,227..IV5; 1KDFTV,2KDFTV..KDH20#..SP200408-201312

28800NTERMINAL, BATTERY NEGATIVE

main90982-06056i1KDFTV,2KDFTV..KDH20#,211,22#..CBU; 1KDFTV,2KDFTV..KDH20#,222,223,227..IV5; 1KDFTV,2KDFTV..KDH20#..SP200408-201312

8202WIRING & CLAMP

→ Go to FIG 82-02

9415180801

main94151-80801

7 parts on this diagram · 4 diagrams in section
