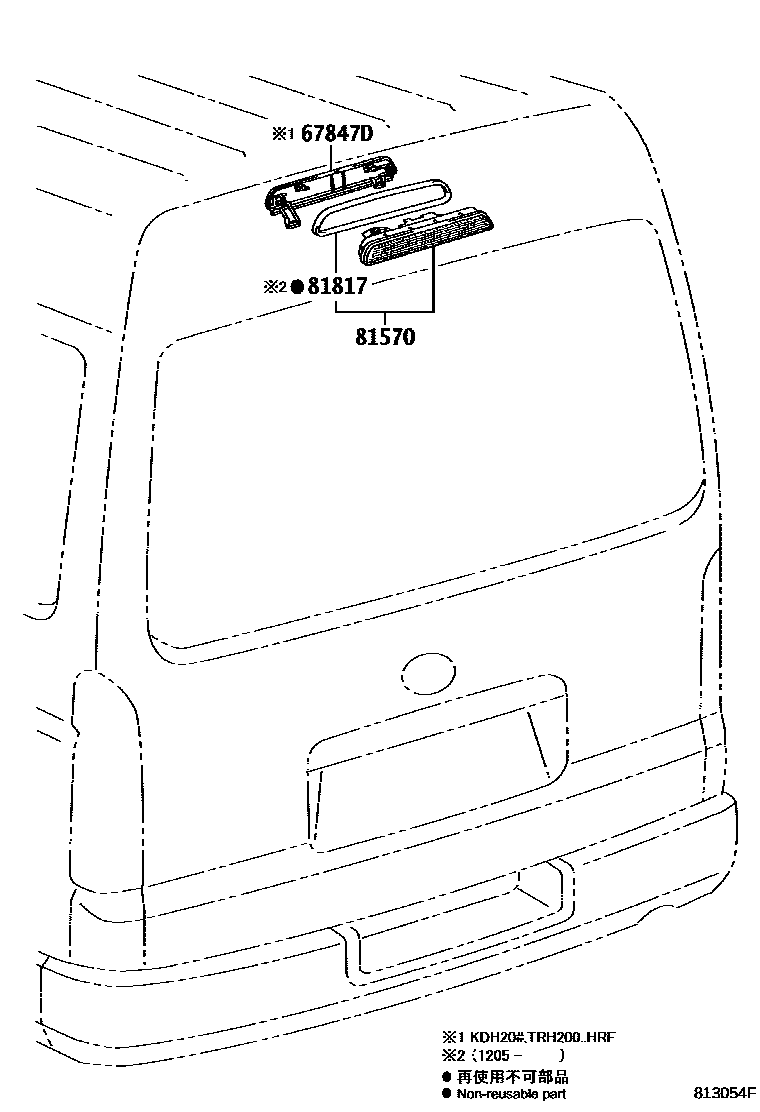

CENTER STOP LAMP

67847DCOVER, BACK DOOR SERVICE HOLE

main67847-26200-B0iKDH20#,TRH200..HRF200408-201312

LT.GRAY,TRIM1#

81570LAMP ASSY, CENTER STOP

main81570-26170iKDH20#,TRH200..HRF200512-200609

main81570-26171iKDH201,206;TRH214,219..GL;TRH221,226..SHRF;KDH200,205,211,221,223,TRH200,211,216..HRF,SMRF200610-201203

main81570-26172iKDH20#,211,22#,TRH200,21#,22#201204-201205

main81570-26190iTRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228201205

81817PACKING, CENTER STOP LAMP

main81817-26040iKDH20#,211,22#,TRH200,21#,22#201205-201312

3 parts on this diagram · 1 diagram in section
