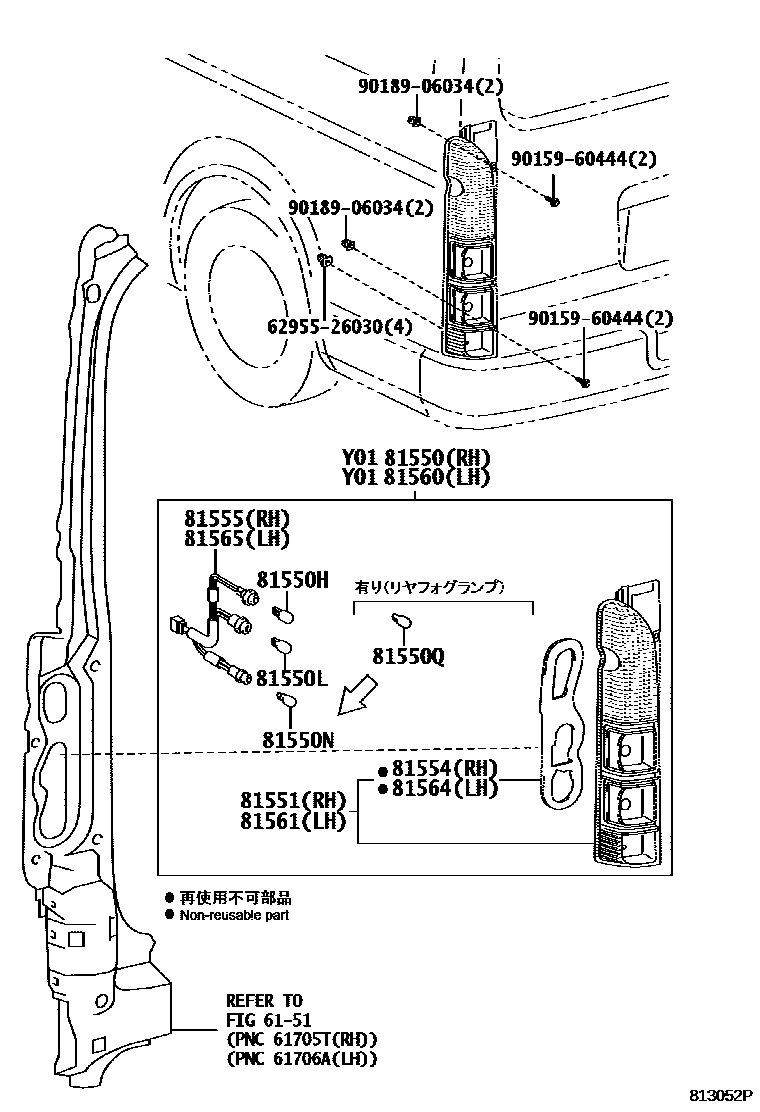

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-26200iKDH20#,22#,TRH200,21#,22#200408-200611

sub81550-26201

main81550-26201iKDH20#,211,22#,TRH200,21#,22#200612-201312

sub81551-26202

sub76817-26040

sub81496-52020

sub81558-26440

sub81559-26200

sub90981-11059

sub90981-13044

sub90981-15011

81550HBULB, TAIL & STOP LAMP

main90981-13044iKDH20#,211,22#,TRH200,21#,22#200408-201312

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iKDH20#,211,22#,TRH200,21#,22#200408-201312

81550NBULB, BACK UP LAMP

main90981-11059iKDH222,223,227,TRH214,219,223,224,228,229200408-201312

main90981-11059iKDH222,223,227,TRH214,219,223,224,228,229200408-201312

81550QBULB, REAR FOG LAMP, NO.1

81551LENS, REAR COMBINATION LAMP, RH

main81551-26200iKDH20#,22#,TRH200,21#,22#200408-200612

sub81551-26201

main81551-26201iKDH20#,211,22#,TRH200,21#,22#200612-201312

sub81551-26202

sub76817-26040

sub81496-52020

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-26200iKDH20#,211,22#,TRH200,21#,22#200408-201312

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-26200iKDH20#,22#,TRH200,21#,22#200408-200509

main81559-26200iKDH20#,211,22#,TRH200,21#,22#200510-201312

81560LAMP ASSY, REAR COMBINATION, LH

main81560-26200iKDH20#,211,22#,TRH200,21#,22#200408-201312

sub81561-26201

sub76817-26040

sub81496-52020

sub81558-26440

sub81565-26200

sub90981-11059

sub90981-13044

sub90981-15011

81561LENS, REAR COMBINATION LAMP, LH

main81561-26200iKDH20#,211,22#,TRH200,21#,22#200408-201312

sub81561-26201

sub76817-26040

sub81496-52020

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-26200iKDH20#,211,22#,TRH200,21#,22#200408-201312

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-26200iKDH20#,22#,TRH200,21#,22#200408-200509

main81565-26200iKDH20#,211,22#,TRH200,21#,22#200510-201312

6295526030SEAL, ROOF SIDE VENT

main62955-26030

9015960444

main90159-60444

9018906034

main90189-06034

15 parts on this diagram · 2 diagrams in section
