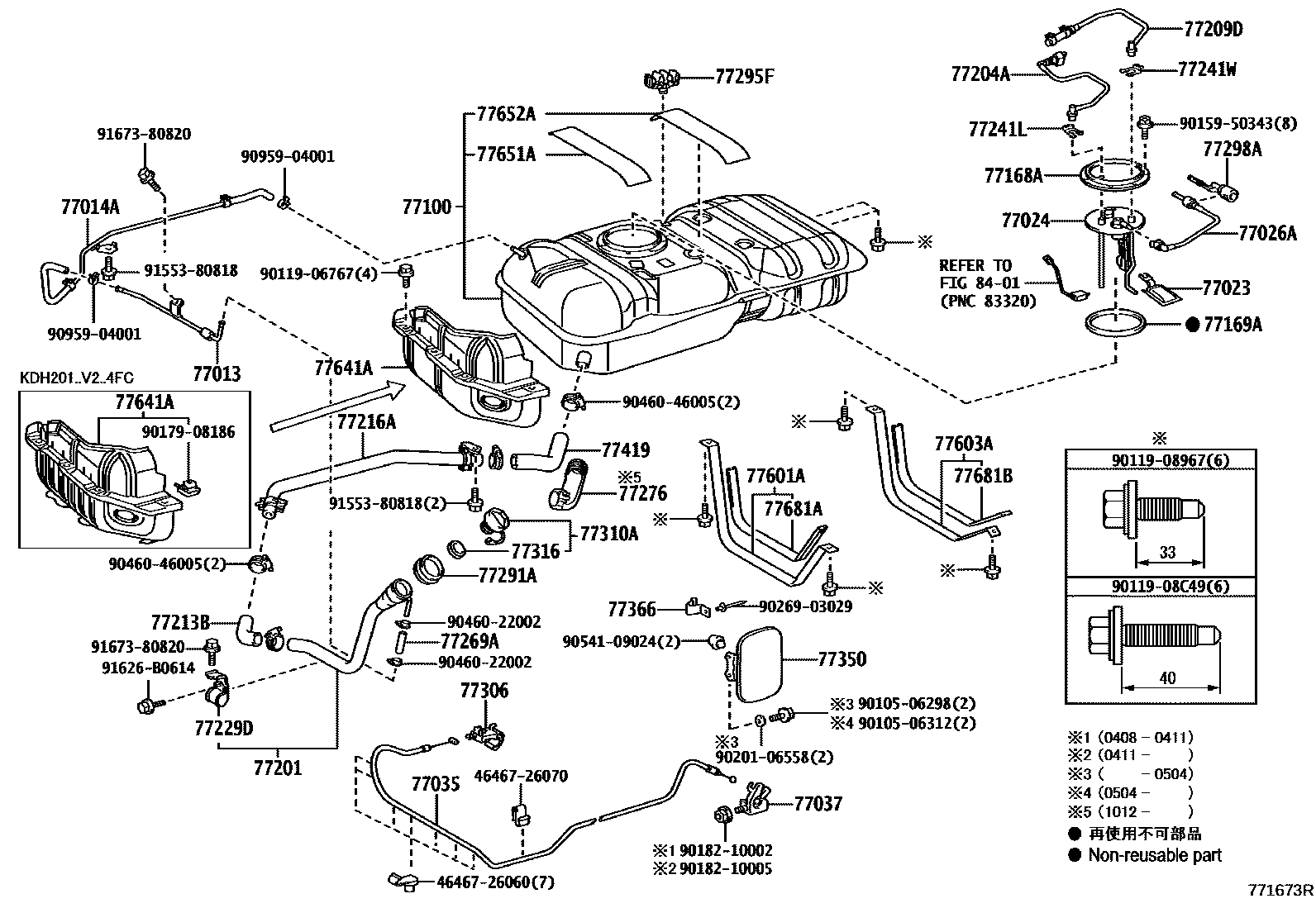

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ��� 0004 1����� ��� 0005 1����� ����� 0006 1����� ����� 0007 1����� �����

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-26120iKDH20#,211,22#,TRH200,21#,22#200408-201312

77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

main77014-26040iKDH20#,211,22#,TRH200,21#,22#200408-201008

main77014-26041iKDH20#,211,22#,TRH200,21#,22#201008-201312

sub77014-26050

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-60040iKDH20#,211,22#200408

77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT

main77024-26010iTRH200,21#,22#200408-201212

sub77024-26011

main77024-26011iTRH200,21#,22#201212-201312

main77024-26020iKDH20#,211,22#200408-201312

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-26070iTRH200,21#,22#200408-201312

main77026-26080iKDH20#,211,22#200408-201312

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-26130iKDH20#,TRH200200408-201312

main77035-26150iKDH211,22#,TRH21#,22#200408-201312

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-95D01iKDH20#,211,22#,TRH200,21#,22#200408-201312

77100TANK ASSY, FUEL

main77001-26690iTRH200,21#,22#200408-200807

sub77001-26691

main77001-26691iTRH200,21#,22#200808-200906

sub77001-26692

main77001-26692iTRH200,21#,22#200906-201312

sub77001-26693

main77001-26700iKDH20#,211,22#200408-200807

sub77001-26701

main77001-26701iKDH20#,211,22#200808-201312

sub77001-26702

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iKDH20#,211,22#,TRH200,21#,22#200408-201312

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iTRH200,21#,22#200408-201312

main77169-53010iTRH200,21#,22#201008-201312

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-26240iTRH200,21#,22#200408-201312

sub77201-26350

sub77300-12020

main77201-26250iKDH20#,211,22#200408-201312

sub77201-26360

sub77300-12030

77204ATUBE, FUEL TANK RETURN

main77204-26040iTRH200,21#,22#200408-201312

main77204-26050iKDH20#,211,22#200408-201312

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-26140iTRH200,21#,22#200408-201312

main77209-26150iKDH20#,211,22#200408-201312

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-26120iKDH20#,211,22#,TRH200,21#,22#200408-201312

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77104-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4

main77229-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

77241LTUBE, FUEL TANK SUCTION

main77241-35450iKDH20#,211,22#200408

77241WCLIP, TUBE JOINT

main77241-33011iKDH20#,211,22#201008-201312

main77241-60320iTRH200,21#,22#200408-201007

77269AHOSE, FUEL TANK BREATHER

main77269-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

77276PROTECTOR, FUEL HOSE

main77276-26090iKDH20#,211,22#,TRH200,21#,22#201101-201312

sub77276-V3010

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-26020iKDH20#,22#,TRH200,21#,22#200408-200512

main77291-26021iKDH20#,211,22#,TRH200,21#,22#200512-201312

77295FGROMMET, FUEL HOSE

main77295-26050iKDH20#,211,22#,TRH200,21#,22#200408-201312

77298ACLAMP, FUEL TUBE, NO.4

main77298-52030iKDH20#,211,22#200408

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28050-B1iKDH20#,211,22#,TRH200,21#,22#200408-201312

MD.GRAY,TRIM1#

sub77306-28050

77310ACAP ASSY, FUEL TANK

main77300-20020iKDH20#,211,22#201008-201312

main77300-28010iTRH200,21#,22#200408-201008

main77300-52030iTRH200,21#,22#201008-201312

main77300-60010iKDH20#,211,22#200408-201008

77316GASKET, FUEL TANK CAP

main77316-16010iKDH20#,211,22#,TRH200,21#,22#200408-201008

main77316-52040iKDH20#,211,22#,TRH200,21#,22#201008-201312

77350LID ASSY, FUEL FILLER OPENING

main77350-26030iKDH20#,211,22#,TRH200,21#,22#200408-201312

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-26010iKDH20#,211,22#,TRH200,21#,22#200408-201104

sub77366-26011

main77366-26011iKDH20#,211,22#,TRH200,21#,22#201105-201312

77419HOSE, FUEL, NO.3

main77419-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

sub77419-V3020

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-26100iKDH20#,211,22#,TRH200,21#,22#200408-201312

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-26020iKDH20#,211,TRH200,21#200408-201312

main77602-26030iKDH22#,TRH22#200501-201312

77641APROTECTOR, FUEL TANK, NO.1

main77641-26040iKDH201..V1;KDH201..V2..5F;KDH200,205,206,211,22#,TRH200,21#,22#200408-201312

main77641-26050iKDH201..V2..4FC200709-201008

77651ACUSHION, FUEL TANK, NO.1

main77651-26080iKDH20#,211,22#,TRH200,21#,22#200408-201312

77652ACUSHION, FUEL TANK, NO.2

main77652-26070iKDH20#,211,22#,TRH200,21#,22#200408-201312

77681ASEAT, FUEL TANK BAND

main77681-32060iKDH20#,211,22#,TRH200,21#,22#200408-201312

77681BSEAT, FUEL TANK BAND

main77616-36010iKDH22#,TRH22#200501-201312

main77681-34030iKDH20#,211,TRH200,21#200408-201312

8401

4646726060CLAMP, CABLE

main46467-26060

4646726070CLAMP, CABLE

main46467-26070

9010506298

main90105-06298

9010506312

main90105-06312

9011906767

main90119-06767

9011908967

main90119-08967

9011908C49

main90119-08C49

9015950343

main90159-50343

9017908186

main90179-08186

9018210002

main90182-10002

9018210005

main90182-10005

9020106558

main90201-06558

9026903029

main90269-03029

9046022002

main90460-22002

9046046005

main90460-46005

9054109024

main90541-09024

9095904001

main90959-04001

9155380818

main91553-80818

91626B0614

main91626-B0614

9167380820

main91673-80820

57 parts on this diagram · 7 diagrams in section
