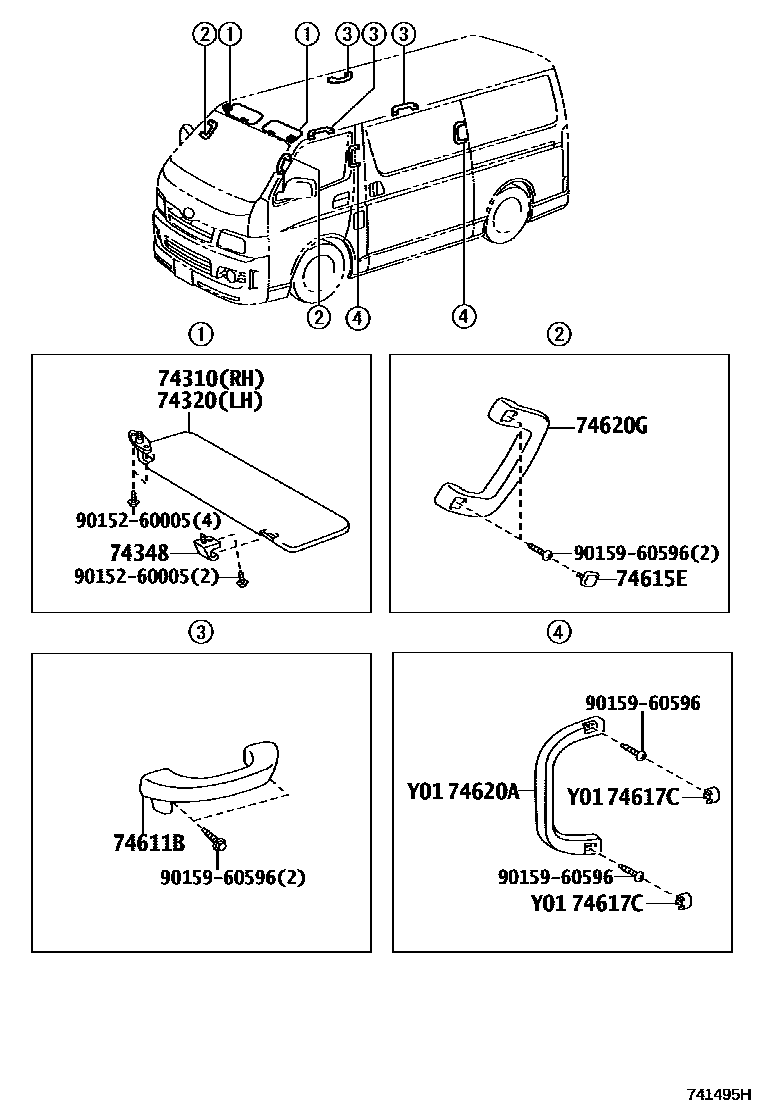

ARMREST & VISOR

0001 1����� & ���������� 0002 1������ & �����

74310VISOR ASSY, RH

main74310-26A01-B0iTRH200..SRF..DX200408-200709

LIGHT GRAY,TRIM1#

main74310-26A10-B0iKDH201..DX;TRH200..HRF200408-201205

LT. GRAY,TRIM1#

main74310-26A20-B0iKDH200..SGL200512-201205

LT. GRAY,TRIM1#

main74310-26B31-B0iKDH205..DX..CBU200408-200511

LIGHT GRAY,TRIM1#

main74310-26B32-B0iKDH205..DX..CBU200512-200709

LIGHT GRAY,TRIM1#

main74310-26B40-B0iKDH205..IV5; KDH205..SG..DX..CBU200408-200511

main74310-26B41-B0iKDH206..DX;KDH205..IV5200512-201205

LT. GRAY,TRIM1#

main74310-26B50-B0iKDH205..SGL200408-200511

LT. GRAY,TRIM1#

main74310-26B51-B0iKDH205,206..SGL200512-201205

LT. GRAY,TRIM1#

main74310-26B70-B0iKDH221,223,TRH214,221,223,224200408-201205

LT. GRAY,TRIM1#

main74310-26B90-B0iKDH225,227200512-201205

LT. GRAY,TRIM1#

main74310-26C60-B0iKDH201,TRH200..DX201205-201312

LT. GRAY,TRIM1#

main74310-26C70-B0iKDH201,TRH200..SGL201205-201312

LT. GRAY,TRIM1#

main74310-26C80-B0iKDH200..SRF..DX200408-200512

LIGHT GRAY,TRIM1#

main74310-26C90-B0iKDH200..SGL200408-200512

LT. GRAY,TRIM1#

main74310-26D00-B0iKDH200..HRF; KDH200..SRF..SG..DX200408-200512

main74310-26D10-B0iKDH220,222200501-200512

LT. GRAY,TRIM1#

main74310-26D20-B0iKDH225,227200501-200512

LT. GRAY,TRIM1#

main74310-26D90-B0iKDH211,TRH211200709-201205

LT. GRAY,TRIM1#

main74310-26E00-B0iTRH216200709-201205

LT. GRAY,TRIM1#

main74310-26E80-B0iKDH206..DX201205-201312

LT. GRAY,TRIM1#

main74310-26E90-B0iKDH206..SGL201205-201312

LT. GRAY,TRIM1#

main74310-26F00-B0iKDH22#,TRH214,221,223,224201205-201312

LT. GRAY,TRIM1#

main74310-26F20-B0iTRH219,226,228,229201205-201312

LT. GRAY,TRIM1#

main74310-26F90-B0iKDH211,TRH211201205-201312

LT. GRAY,TRIM1#

main74310-26G00-B0iTRH216201205-201312

LT. GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-26800-B0supersedes 74320-26A90-B0iTRH214,219,221,224,226,229..02S,10S200408-201205

LT. GRAY,TRIM1#

main74320-26C80-B0supersedes 74320-26C70-B0iKDH22#,TRH221,223,226,228..06S,15S; TRH214,219,221,224,226,229..02S,10S201205-201312

main74320-26731-B0supersedes 74320-26A70-B0iKDH20#,TRH200..SRF..DX200408-200709

main74320-26750-B0supersedes 74320-26A80-B0iTRH200..SRF..DX200709-201205

main74320-26770-B0supersedes 74320-26760-B0iKDH20#,TRH200..SGL200408-201205

main74320-26A80-B0iKDH20#,TRH200..SRF..SG..DX200408-200709

main74320-26A90-B0iTRH214,219..DX200408-201205

main74320-26C10-B0supersedes 74320-26810-B0iKDH211,TRH211,216200709-201205

main74320-26C20-B0supersedes 74320-26B10-B0iKDH20#,TRH200..DX201205-201312

main74320-26C40-B0supersedes 74320-26C30-B0iKDH20#,TRH200..SGL201205-201312

main74320-26C70-B0iKDH22#,TRH221,223,226,228..06S,15S; TRH214,219..DX201205-201312

main74320-26E30-B0supersedes 74320-26C90-B0iKDH211,TRH211,216201205-201312

74348HOLDER, VISOR

main74348-26020-B3×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

LT.GRAY,TRIM1#

74611BGRIP, ASSIST

main74611-20030-B8×3iKDH20#,211,TRH200,211,216..SGL; KDH20#,22#,TRH200,214,219,22#..DX,GC,GL200408-201312

LT.GRAY,TRIM1#

74615EPLUG, FRONT ASSIST GRIP, NO.1 RH

main74615-60020-B3×4iKDH20#,211,22#,TRH200,21#,22#200408-201312

LT.GRAY,TRIM1#

74617CPLUG, ASSIST GRIP

main74615-26010-B0×4iTRH214,219,224,229..(GC,GL)..CBU; TRH214,219..DX; TRH223,224,228,229..CBU200709-201312

74620AGRIP ASSY, ASSIST, REAR

main74620-26020-B0iTRH223,224,228,229..CBU200501-200709

LT.GRAY,TRIM1#

74620GGRIP ASSY, ASSIST, FRONT

main74620-26010-B0×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

LT.GRAY,TRIM1#

9015260005

main90152-60005

9015960596

main90159-60596

10 parts on this diagram · 2 diagrams in section
