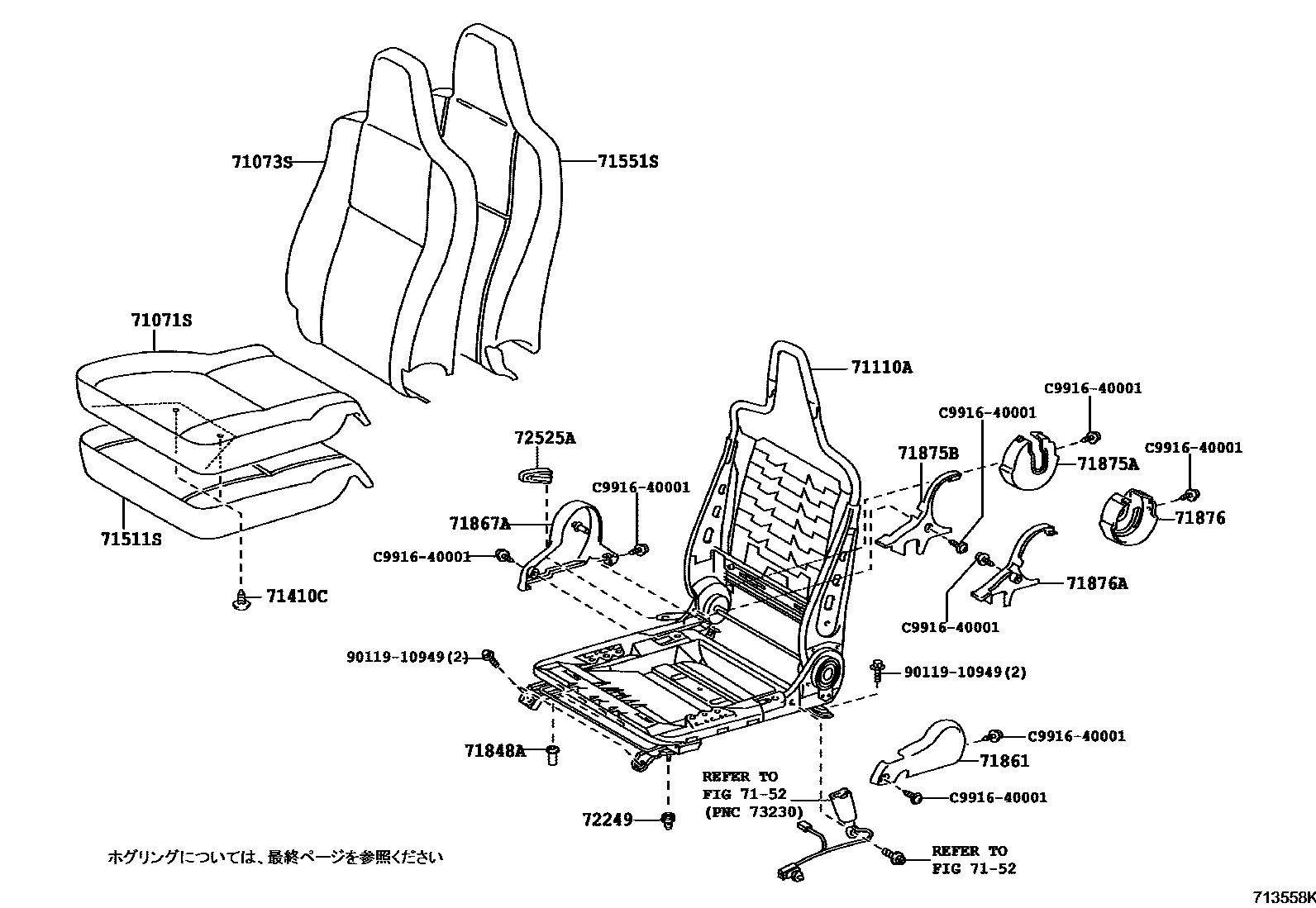

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-26A50-B2iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX200408-201008

GRAY,TRIM1#

sub71071-26A52

main71071-26A51-B4iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX201008-201205

BLUISH GRAY,TRIM1#

main71071-26A60-B5iTRH221,226..02S;KDH222,227,TRH223,228..GL200501-200709

GRAY,TRIM1#

main71071-26A60-B6iTRH224,229..IV5200501-200510

GRAY,TRIM1#

main71071-26A61-B8iKDH223,TRH223,228..GL200709-201008

GRAY,TRIM1#

main71071-26A61-B9iTRH224,229..IV5200709-201008

GRAY,TRIM1#

main71071-26A61-P0iTRH224,229..IV5;KDH223,TRH223,228..GL201008-201205

GRAY,TRIM1#

main71071-26A70-B0iKDH20#,TRH200..SGL200408-200709

GRAY,TRIM1#

main71071-26A71-B1iKDH20#,211,TRH200,211,216,221,226..02S,05S200709-201008

GRAY,TRIM1#

main71071-26A72-B2iKDH20#,211,TRH200,211,216,221,226..02S,05S201008-201205

MEDIUM GRAY,TRIM1#

main71071-26A80-B0iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX201205-201312

BLUISH GRAY,TRIM1#

main71071-26A90-B0iTRH224..IV5;KDH223,TRH223,228..GL201205-201312

GRAY,TRIM1#

main71071-26B00-B0iTRH224,229..CBU200501-200709

GRAY,TRIM1#

main71071-26B01-B1iTRH214,219,224,229..(GC,GL)..CBU200709-201008

GRAY,TRIM1#

main71071-26B02-B2iTRH214,219,224,229..(GC,GL)..CBU201008-201205

DARK GRAY,TRIM1#

main71071-26B30-B0iKDH20#,211,TRH200,211,216,221,226..02S,05S201205-201312

MEDIUM GRAY,TRIM1#

main71071-26B40-B0iTRH214,219,224,229..(GC,GL)..CBU201205-201312

DARK GRAY,TRIM1#

main71071-26B80-C0iKDH20#,211,TRH200,211,216..SGL201211-201311

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-26040-B3iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX200408-201008

GRAY,TRIM1#

sub71073-26A90

main71027-26041-B4iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX201008-201312

BLUISH GRAY,TRIM1#

main71073-26A10-B3iTRH224,229..IV5200510-200709

GRAY,TRIM1#

main71073-26A10-B4iTRH224,229..IV5200501-200510

GRAY,TRIM1#

main71073-26A11-B6iKDH223,TRH223,228..GL200709-201008

GRAY,TRIM1#

main71073-26A11-B7iTRH224,229..IV5200709-201008

GRAY,TRIM1#

main71073-26A11-B8iTRH224,229..IV5;KDH223,TRH223,228..GL201008-201312

GRAY,TRIM1#

main71073-26A40-B0iKDH20#,TRH200..SGL200408-200709

GRAY,TRIM1#

main71073-26A41-B1iKDH20#,211,TRH200,211,216,221,226..02S,05S200709-201008

GRAY,TRIM1#

main71073-26A42-B3iKDH20#,211,TRH200,211,216,221,226..02S,05S201008-201312

MEDIUM GRAY,TRIM1#

main71073-26A50-B0iTRH224,229..CBU200501-200709

GRAY,TRIM1#

main71073-26A51-B1iTRH214,219,224,229..(GC,GL)..CBU200709-201008

GRAY,TRIM1#

main71073-26A52-B2iTRH214,219,224,229..(GC,GL)..CBU201008-201312

DARK GRAY,TRIM1#

sub71073-26A53

main71073-26A80-C0iKDH20#,211,TRH200,211,216..SGL201211-201311

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-26010iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX200408-200809

main71110-26011iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX200810-201312

main71110-26020iTRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL200408-200809

main71110-26021iTRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL200810-201312

71410CCLIP(FOR FRONT SEAT CUSHION)

main90467-08186-C0×2iKDH223,TRH223,228..DX200602-201205

main90467-08188×4iTRH21#,221,226..02S,10S;KDH20#,222,227,TRH200,223,224,228,229..GC,GL,SGL200408-200602

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-26170iTRH224,229..IV5200709-201312

7152

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-26270iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX200408-201312

main71551-26280iTRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL200408-201312

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-26010iTRH221,226..SHRF;TRH200..V1..HRF..5D;KDH201,206,211,221,223,TRH21#200408-201312

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-26010-B0iKDH20#,211,22#,TRH200,21#,22#200408-201008

GRAY,TRIM1#

main71861-26010-B1iKDH20#,211,22#,TRH200,21#,22#201008-201312

DK.GRAY,TRIM1#

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-26010-B0iKDH20#,211,22#,TRH200,21#,22#200408-201008

GRAY,TRIM1#

main71867-26010-B1iKDH20#,211,22#,TRH200,21#,22#201008-201312

DK.GRAY,TRIM1#

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-26010-B0iKDH20#,211,22#,TRH200,21#,22#200408-201008

GRAY,TRIM1#

main71875-26010-B1iKDH20#,211,22#,TRH200,21#,22#201008-201312

DK.GRAY,TRIM1#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-26020-B0iKDH20#,211,22#,TRH200,21#,22#200408-201008

GRAY,TRIM1#

main71875-26020-B1iKDH20#,211,22#,TRH200,21#,22#201008-201312

DK.GRAY,TRIM1#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-26010-B0iKDH20#,211,22#,TRH200,21#,22#200408-201008

GRAY,TRIM1#

main71876-26010-B1iKDH20#,211,22#,TRH200,21#,22#201008-201312

DK.GRAY,TRIM1#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-26030-B0iKDH20#,211,22#,TRH200,21#,22#200408-201008

GRAY,TRIM1#

main71876-26030-B1iKDH20#,211,22#,TRH200,21#,22#201008-201312

DK.GRAY,TRIM1#

72249GUIDE, SEAT TRACK LOCKING

main72249-26020iKDH223,TRH223,228..DX201205-201312

main72249-26030iKDH223,TRH223,228..DX200408-201205

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-26080-B0iKDH20#,211,22#,TRH200,21#,22#200408-201008

GRAY,TRIM1#

main72525-26080-B1iKDH20#,211,22#,TRH200,21#,22#201008-201312

DK.GRAY,TRIM1#

9011910949

main90119-10949

C991640001

mainC9916-40001

18 parts on this diagram · 32 diagrams in section
