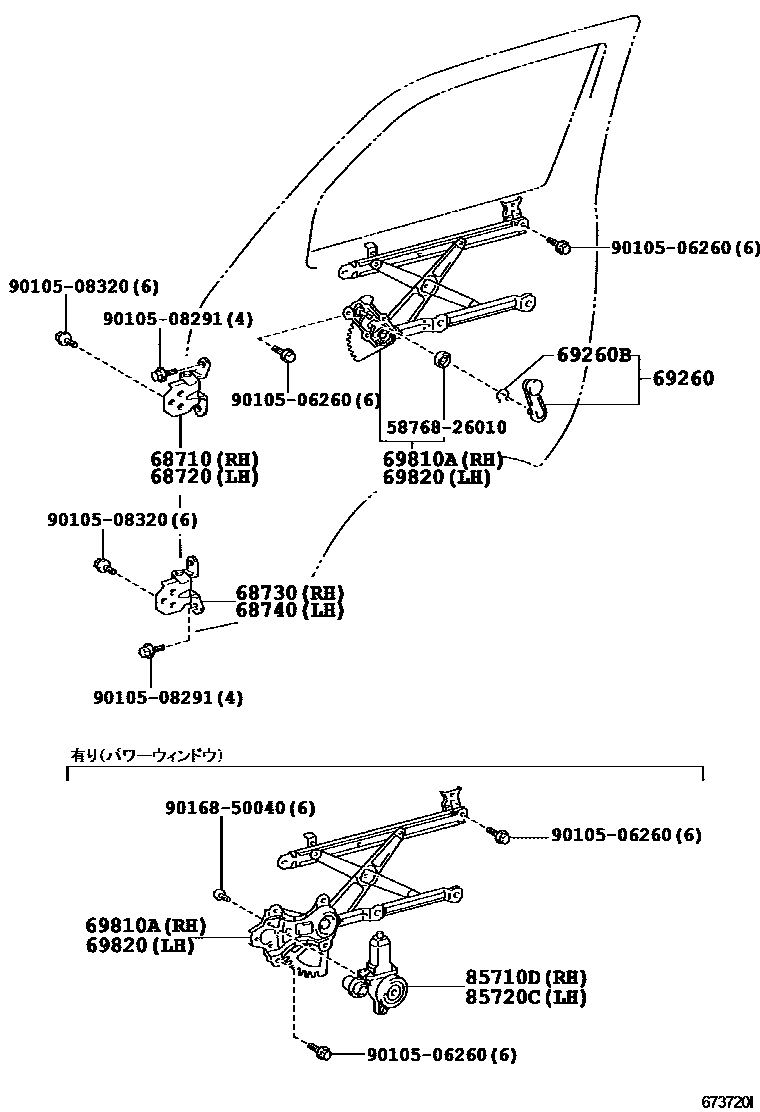

FRONT DOOR WINDOW REGULATOR & HINGE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-12080-B3×2iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX200408-201008
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH
main69801-26050supersedes 69810-26080iKDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX201008-201312
69820REGULATOR ASSY, FRONT DOOR WINDOW, LH
main69802-26050supersedes 69820-26060iTRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL200408-201312
85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85710-58010iTRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL200408-201312
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85720-35140iTRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL200408-201312
5876826010
main58768-26010
9010506260
main90105-06260
9010508291
main90105-08291
9010508320
main90105-08320
9016850040
main90168-50040
15 parts on this diagram · 1 diagram in section
