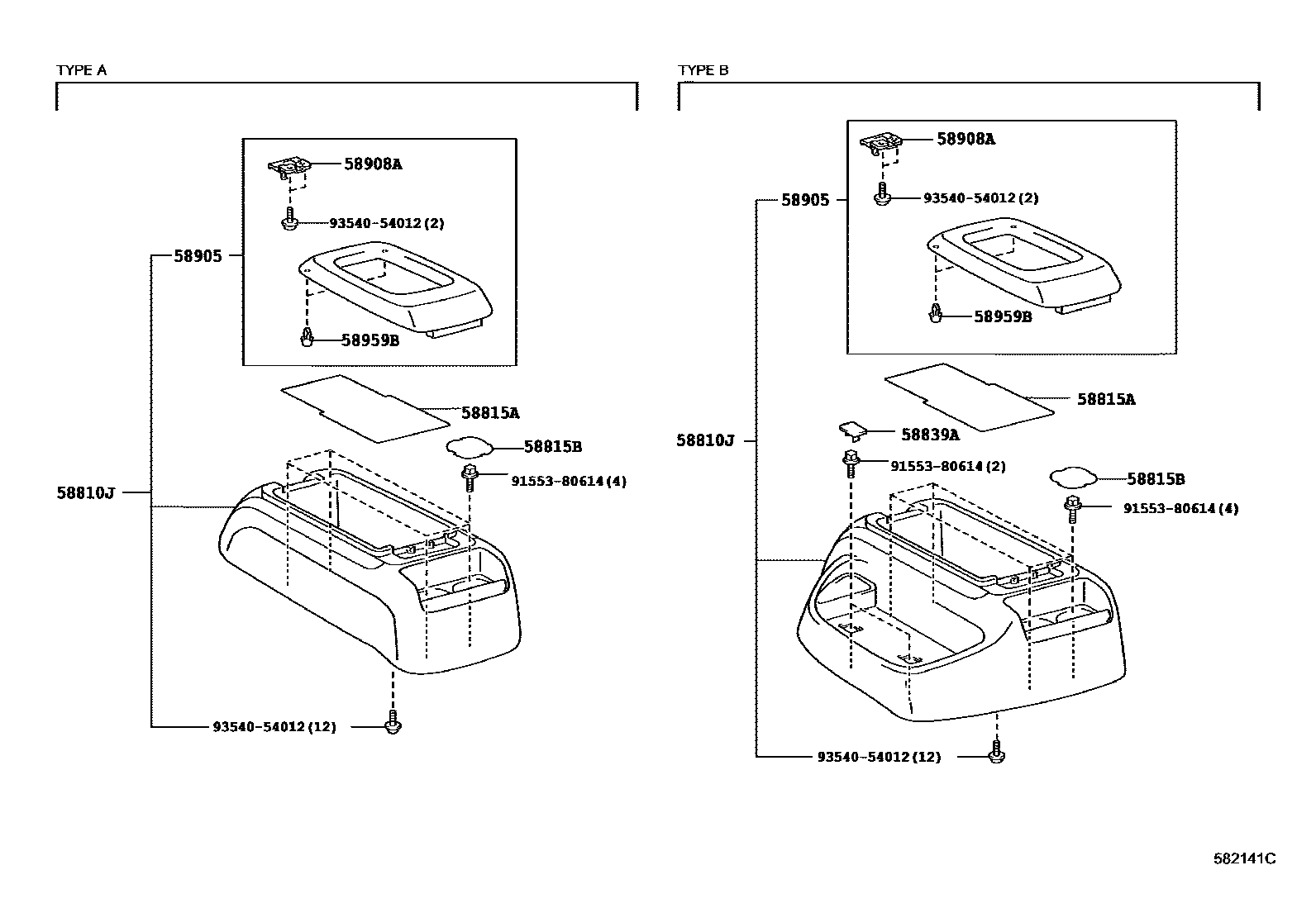

CONSOLE BOX & BRACKET

0001 1 0002 1

58810JBOX ASSY, CONSOLE

main58810-26210-B0iKDH20#,TRH200..SGL200408-201008

main58810-26210-B1iKDH20#,TRH200..SGL201008-201312

main58810-26220-B0iTRH224,229..IV5200408-201008

main58810-26220-B1iKDH211,TRH21#,221,224,226,229..(02S,05S,10S)..CBU201008-201312

58815ACARPET, CONSOLE BOX

main58815-26070iKDH20#,211,TRH200,21#,221,224,226,229..(02S,05S,10S)..CBU200408-201312

58815BCARPET, CONSOLE BOX

main58815-26080iTRH224,229..IV5200408-201312

58839ACOVER, CONSOLE BOX HOLE

main58839-26030-B0iTRH224,229..IV5200408-201008

GRAY,TRIM1#

main58839-26030-B1iKDH211,TRH21#,221,224,226,229..(02S,05S,10S)..CBU201008-201312

DK.GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-26200-B0iTRH224,229..IV5200408-201008

GRAY,TRIM1#

main58905-26200-B1iKDH20#,211,TRH200,21#,221,224,226,229..(02S,05S,10S)..CBU201008-201312

DK.GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-58010iTRH224,229..IV5200408-201312

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iTRH224,229..IV5200408-201312

9155380614

main91553-80614

9354054012

main93540-54012

9 parts on this diagram · 2 diagrams in section
