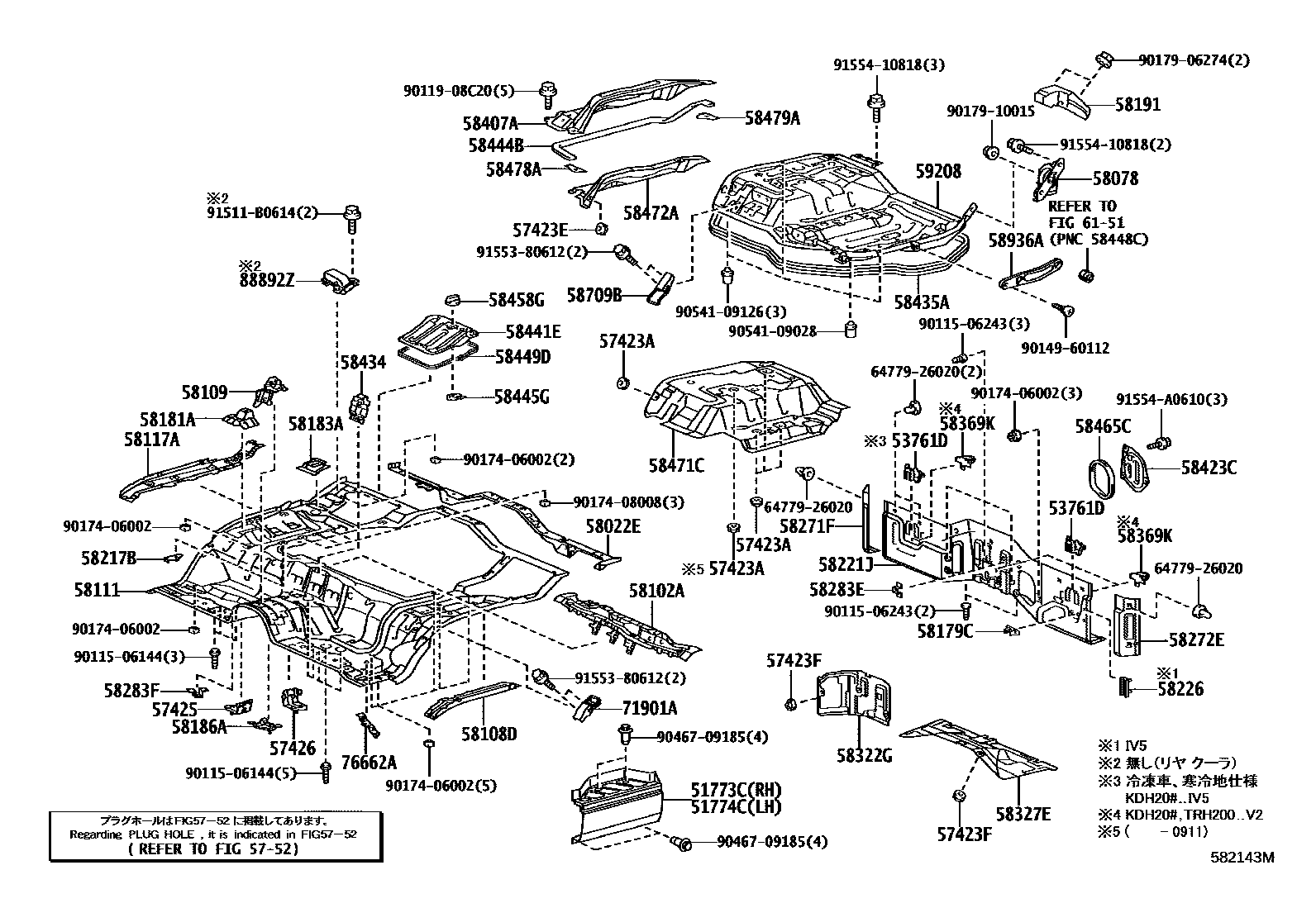

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1RH 0004 1LH 0005 1RH 0006 1LH

51773CCOVER, STEP PLATE, RH

main51773-26020iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..CBU200408-200608

main51773-26021iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..CBU200609-200709

main51773-26022iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..CBU200709-201008

main51773-26023iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..CBU201008-201312

main51773-26030-A0iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200408-200511

WHITE,058

main51773-26030-B0iKDH20#,TRH200..SGL200408-200511

GRAY ME.,2JN

main51773-26030-B1iKDH20#,TRH200..SGL200408-200511

DARK GRAY M.M.,1E2

main51773-26030-B2iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200408-200511

SILVER M.M.,1E7

main51773-26030-F0iTRH221,224,226,229..02S,10S200501-200511

GOLD ME.,2JM

main51773-26030-J0iKDH222,227,TRH223,228..IV5;KDH20#,TRH200,221,224,226,229..(02S,05S,10S)..CBU200408-200511

DK.BLUE M.M.,8P4

main51773-26031-A0iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200512-200608

WHITE,058

main51773-26031-B0iKDH20#,TRH200..SGL200512-200608

GRAY ME.,2JN

main51773-26031-B1iKDH20#,TRH200..SGL200512-200608

DARK GRAY M.M.,1E2

main51773-26031-B2iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200512-200608

SILVER M.M.,1E7

main51773-26031-F0iTRH221,224,226,229..(02S,10S)..CBU200512-200608

GOLD ME.,2JM

main51773-26031-J0iKDH20#,TRH200,221,224,226,229..(02S,05S,10S)..CBU200512-200608

DK.BLUE M.M.,8P4

main51773-26032-A0iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200609-200709

WHITE,058

main51773-26032-B0iKDH20#,TRH200..SGL200609-200709

GRAY ME.,2JN

main51773-26032-B1iKDH20#,TRH200..SGL200609-200708

DARK GRAY M.M.,1E2

main51773-26032-B2iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200609-200709

SILVER M.M.,1E7

main51773-26032-B3iTRH200..SGL200708-200709

GRAY ME.,1G3

main51773-26032-C0iTRH200..SGL200708-200709

BLACK MC.,209

main51773-26032-F0iTRH221,224,226,229..(02S,10S)..CBU200609-200709

GOLD ME.,2JM ,2JZ

main51773-26032-J0iKDH20#,TRH200,221,224,226,229..(02S,05S,10S)..CBU200609-200709

DK.BLUE M.M.,8P4

main51773-26033-A0iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL200709-201008

main51773-26033-A2iTRH221,226..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU200709-201008

WHITE PEARL CS.,070

main51773-26033-B0iKDH20#,211,TRH200,211,216..SGL200709-201008

GRAY ME.,2JN

main51773-26033-B2iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL200709-201008

main51773-26033-B3iKDH20#,211,TRH200,211,216..SGL200709-201008

GRAY ME.,1G3

main51773-26033-C0iKDH20#,211,TRH200,21#..GL,SGL200709-201008

BLACK MC.,209

main51773-26033-F0iKDH20#,211,TRH200,21#..GL,SGL; TRH221,226..02S; TRH224,229..CBU200709-201008

GOLD ME.,2JZ; GOLD ME.,2JZ ,593; GOLD ME.,593

main51773-26033-J0iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU200709-201008

main51773-26034-A0iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL201008-201312

main51773-26034-A2iTRH221,226..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU201008-201312

WHITE PEARL CS.,070

main51773-26034-B2iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL201008-201312

main51773-26034-B3iKDH20#,211,TRH200,211,216..SGL201008-201312

GRAY ME.,1G3

main51773-26034-C0iKDH20#,211,TRH200,21#..GL,SGL201008-201312

BLACK MC.,209

main51773-26034-F0iKDH20#,211,TRH200,21#..GL,SGL; TRH221,224,226,229..HRF..(02S,10S)..CBU; TRH221,226..SHRF201008-201312

GOLD ME.,2JZ; GOLD ME.,2JZ ,593; GOLD ME.,593

main51773-26034-J0iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU201008-201312

main51773-26034-D0iKDH20#,211,TRH200,211,216..SGL201211-201311

51774CCOVER, STEP PLATE, LH

main51774-26020iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..CBU200408-200608

main51774-26021iKDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..CBU200609-200709

main51774-26022iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..CBU200709-201008

main51774-26023iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..CBU201008-201312

main51774-26030-A0iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200408-200511

WHITE,058

main51774-26030-B0iKDH20#,TRH200..SGL200408-200511

GRAY ME.,2JN

main51774-26030-B1iKDH20#,TRH200..SGL200408-200511

DARK GRAY M.M.,1E2

main51774-26030-B2iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200408-200511

SILVER M.M.,1E7

main51774-26030-F0iTRH221,224,226,229..02S,10S200501-200511

GOLD ME.,2JM

main51774-26030-J0iKDH222,227,TRH223,228..IV5;KDH20#,TRH200,221,224,226,229..(02S,05S,10S)..CBU200408-200511

DK.BLUE M.M.,8P4

main51774-26031-A0iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200512-200608

WHITE,058

main51774-26031-B0iKDH20#,TRH200..SGL200512-200608

GRAY ME.,2JN

main51774-26031-B1iKDH20#,TRH200..SGL200512-200608

DARK GRAY M.M.,1E2

main51774-26031-B2iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200512-200608

SILVER M.M.,1E7

main51774-26031-F0iTRH221,224,226,229..(02S,10S)..CBU200512-200608

GOLD ME.,2JM

main51774-26031-J0iKDH20#,TRH200,221,224,226,229..(02S,05S,10S)..CBU200512-200608

DK.BLUE M.M.,8P4

main51774-26032-A0iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200609-200709

WHITE,058

main51774-26032-B0iKDH20#,TRH200..SGL200609-200709

GRAY ME.,2JN

main51774-26032-B1iKDH20#,TRH200..SGL200609-200708

DARK GRAY M.M.,1E2

main51774-26032-B2iKDH20#,222,227,TRH200,223,228..IV5;KDH20#,TRH200,221,224,226,229..02S,05S,10S200609-200709

SILVER M.M.,1E7

main51774-26032-B3iTRH200..SGL200708-200709

GRAY ME.,1G3

main51774-26032-C0iTRH200..SGL200708-200709

BLACK MC.,209

main51774-26032-F0iTRH221,224,226,229..(02S,10S)..CBU200609-200709

GOLD ME.,2JM ,2JZ

main51774-26032-J0iKDH20#,TRH200,221,224,226,229..(02S,05S,10S)..CBU200609-200709

DK.BLUE M.M.,8P4

main51774-26033-A0iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL200709-201008

main51774-26033-A2iTRH221,226..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU200709-201008

WHITE PEARL CS.,070

main51774-26033-B0iKDH20#,211,TRH200,211,216..SGL200709-201008

GRAY ME.,2JN

main51774-26033-B2iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL200709-201008

main51774-26033-B3iKDH20#,211,TRH200,211,216..SGL200709-201008

GRAY ME.,1G3

main51774-26033-C0iKDH20#,211,TRH200,21#..GL,SGL200709-201008

BLACK MC.,209

main51774-26033-F0iKDH20#,211,TRH200,21#..GL,SGL; TRH221,226..02S; TRH224,229..CBU200709-201008

GOLD ME.,2JZ; GOLD ME.,2JZ ,593; GOLD ME.,593

main51774-26033-J0iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU200709-201008

main51774-26034-A0iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL201008-201312

main51774-26034-A2iTRH221,226..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU201008-201312

WHITE PEARL CS.,070

main51774-26034-B2iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,223,TRH200,223,228..IV5;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL201008-201312

main51774-26034-B3iKDH20#,211,TRH200,211,216..SGL201008-201312

GRAY ME.,1G3

main51774-26034-C0iKDH20#,211,TRH200,21#..GL,SGL201008-201312

BLACK MC.,209

main51774-26034-F0iKDH20#,211,TRH200,21#..GL,SGL; TRH221,224,226,229..HRF..(02S,10S)..CBU; TRH221,226..SHRF201008-201312

GOLD ME.,2JZ; GOLD ME.,2JZ ,593; GOLD ME.,593

main51774-26034-J0iKDH20#,221,TRH200,221,226..(06S,09S)..CBU; TRH221,226..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU201008-201312

main51774-26034-D0iKDH20#,211,TRH200,211,216..SGL201211-201311

53761DBRACKET, BATTERY CLAMP

main53761-26020iKDH20#..SP; KDH201,206..CBU; KDH201,206..IV5; TRH200;KDH201,206..CBU200408-201006

main53761-26021iKDH20#..5D..03S..4FC; KDH20#..CBU; KDH20#..IV5; KDH20#..SP; TRH200;KDH20#..CBU;TRH221,226..SHRF201007-201312

57423ACLAMP, FRONT FLOOR

main57423-26010×6iKDH211,22#,TRH21#,22#200912-201312

57423ECLAMP, FRONT FLOOR, NO.2

main57423-26010×4iKDH20#,211,22#,TRH200,21#,22#200408-201312

57423FCLAMP, FRONT FLOOR, NO.3

main57423-26010×5iKDH201,206,211,221,223,TRH200,21#,22#200408-200912

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

5752HOLE PLUG

→ Go to FIG 57-52

58022EREINFORCEMENT SUB-ASSY, HEADER PANEL

main58022-26260iTRH200200408-201312

main58022-26270iKDH20#200408-201312

main58022-26280iTRH21#,22#200408-201312

main58022-26290iKDH211,22#200501-201312

58078BALANCER SUB-ASSY, ENGINE SERVICE HOLE COVER

main58078-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-26200iKDH20#,TRH200200408-201312

main58102-26210iKDH211,22#,TRH21#,22#200408-201312

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-26030iKDH20#,TRH200200408-201312

main58108-26040iKDH211,22#,TRH21#,22#200408-201312

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

58111PAN, FRONT FLOOR

main58111-26A10iKDH20#..4FC200408-200505

main58111-26A11iKDH20#..4FC200505-201312

main58111-26A50iKDH22#200501-200505

main58111-26A51iKDH211,22#200505-201312

main58111-26A90iTRH200;KDH20#..5F200408-200505

main58111-26A91iTRH200;KDH20#..5F200505-201312

main58111-26B10iTRH21#,22#200408-200505

main58111-26B11iTRH21#,22#200505-201312

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

58179CBRACKET, CLAMP FLOOR

main58179-26080iKDH223,TRH223,224,228..IV5200408-201205

58181ARETAINER, SEAT RAIL, FRONT

main58181-26080iKDH20#,211,22#,TRH200,21#,22#200408-201312

58183ARETAINER, SEAT RAIL, REAR RH

main58105-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

58186ABRACKET, BRAKE TUBE SET

main58186-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

58191FOOTREST, FRONT FLOOR

main58191-26050iKDH20#,TRH200200408-201312

main58191-26060iKDH211,22#,TRH21#,22#200408-201312

58217BPLATE, FRONT FLOOR

main58217-26040iKDH20#,211,22#,TRH200,21#,22#200408-201312

58221JPANEL, HEADER

main58221-26720iKDH20#,TRH200..DX..CBU200408-201312

main58221-26730iKDH20#,TRH200..IV5200408-201312

main58221-26740iKDH22#,TRH221,223,226,228..(06S,15S)..CBU200501-201007

main58221-26741iKDH221,TRH221,226..06S201008-201312

main58221-26750iTRH224,229..IV5200512-201007

main58221-26751iKDH223,TRH223,224,228,229..IV5; TRH214,219,224,229..CBU201008-201205

main58221-26760iKDH20#,TRH200..SGL200408-201312

main58221-26770iKDH211,TRH21#,221,224,226,229..(02S,05S,10S)..CBU200408-201007

main58221-26771iKDH223,TRH223,228..CBU201205-201312

main58221-26780iTRH224,229..IV5200501-200512

main58221-26790iKDH223,TRH223,224,228..IV5; TRH214,219,224,229..CBU201205-201312

58226PLATE, FLOOR PANEL FRONT END, LOWER

main58226-26020iKDH223,TRH223,224,228..IV5200408-201205

58271FPLATE, FLOOR SIDE, REAR RH

main58271-26010iKDH223,TRH223,224,228..IV5200408-201205

58272EPLATE, FLOOR SIDE, REAR LH

main58272-26020iKDH223,TRH223,224,228..CBU;KDH20#,211,220,221,222,225,227,TRH200,21#,221,226,229200408-201312

58283EBRACKET, PARKING CABLE CLAMP, NO.5

main58283-95D00iTRH200,21#,22#200408-200504

58283FBRACKET, PARKING CABLE CLAMP, NO.6

main55731-26060iTRH200,21#,22#200607-200608

main58283-95D00iKDH20#,22#,TRH200,21#,22#200408-200606

58322GINSULATOR, HEADER PANEL, NO.1

main58322-26020iKDH20#,TRH200200408-201312

main58322-26030iKDH211,22#,TRH21#,22#200408-201312

58327EINSULATOR, TRANSMISSION SERVICE HOLE COVER

main58327-26070iKDH200,205200408-201312

main58327-26080iTRH221,226..SHRF;KDH220,222,225,227200408-201312

58369KBRACKET, REAR FLOOR BRACE

main58369-26020×3iKDH200..V2200408-200709

58407ACOVER SUB-ASSY, ENGINE SERVICE HOLE SUB

main58407-26140iKDH20#,TRH200200408-200511

main58407-26141iKDH20#,TRH200200512-201312

main58407-26150iKDH211,22#,TRH21#,22#200408-201312

58423CCOVER, ENGINE SERVICE HOLE, NO.2

main58423-26040iKDH211,221,223,TRH21#,22#200408-201008

58434HOOK, ENGINE SERVICE HOLE COVER

main58434-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

58435APACKING, ENGINE MAIN COVER

main58435-26020iKDH20#,TRH200200408-201312

main58435-26030iKDH211,22#,TRH21#,22#200408-201312

58441ECOVER, BATTERY SERVICE HOLE

main58209-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

58444BPACKING, ENGINE SUB COVER

main58444-26010iKDH20#,TRH200200408-201312

main58444-26020iKDH211,22#,TRH21#,22#200408-201312

58445GLOCK, BATTERY SERVICE HOLE COVER

main58445-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

58449DPACKING, BATTERY SERVICE HOLE COVER

main58449-26020iKDH20#,22#,TRH200,21#,22#200408-200605

main58449-26021iKDH20#,211,22#,TRH200,21#,22#200606-201312

58458GKNOB, BATTERY SERVICE HOLE COVER

main58458-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

58465CPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-26040iKDH211,221,223,TRH21#,22#200408-201008

58471CSILENCER, ENGINE MAIN COVER

main58471-26040iKDH20#,TRH200200408-201008

main58471-26041iKDH20#,TRH200201008-201312

main58471-26050iKDH211,22#,TRH21#,22#200408-200912

main58471-26051iKDH211,22#200912-201008

main58471-26060iTRH21#,22#200912-201312

58472ASILENCER, ENGINE SUB COVER

main58472-26040iKDH20#,TRH200200408-201008

main58472-26041iKDH20#,TRH200201008-201312

main58472-26050iKDH211,22#,TRH21#,22#200408-201008

main58472-26051iKDH211,22#,TRH21#,22#201008-201312

58478APACKING, ENGINE SUB COVER, NO.2

main58478-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

58479APACKING, ENGINE SUB COVER, NO.3

main58479-26030iKDH20#,211,22#,TRH200,21#,22#200408-201312

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT

main58936-26010-B1iKDH20#,22#,TRH200,21#,22#200408-200708

MD.GRAY,TRIM1#

main58936-26011-B1iKDH20#,211,22#,TRH200,21#,22#200709-201008

MD.GRAY,TRIM1#

main58936-26011-B2iKDH20#,211,22#,TRH200,21#,22#201008-201312

DK.GRAY,TRIM1#

59208COVER SUB-ASSY, ENGINE SERVIS HOLE MAIN

main59208-26130iKDH20#,TRH200..DX200408-201312

main59208-26140iKDH20#,TRH200..SGL200408-201312

main59208-26190iTRH223,228..DX200501-201205

main59208-26200iKDH222,227..GL200501-201312

main59208-26210supersedes 59208-26190iTRH224,229..IV5200408-200512

main59208-26300iKDH22#..DX200912-201008

main59208-26310iKDH223..GL200912-201008

main59208-26320iKDH211; KDH223..DX200912-201008

6151SIDE MEMBER

→ Go to FIG 61-51

71901ACATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT

main71902-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

76662ABRACE, FRONT MUDGUARD, FRONT LH

main76661-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

88892ZCOVER, COOLER

main88891-26260iKDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU; KDH20#,220,221,225,TRH200,221,226..SG..(03S,06S,09S)..CBU200408

6477926020TRAY, SPARE WHEEL COVER

main64779-26020

9011506144

main90115-06144

9011506243

main90115-06243

9011908C20

main90119-08C20

9014960112

main90149-60112

9017406002

main90174-06002

9017408008

main90174-08008

9017906274

main90179-06274

9017910015

main90179-10015

9046709185

main90467-09185

9054109028

main90541-09028

9054109126

main90541-09126

91511B0614

main91511-B0614

9155380612

main91553-80612

9155410818

main91554-10818

91554A0610

main91554-A0610

68 parts on this diagram · 6 diagrams in section
