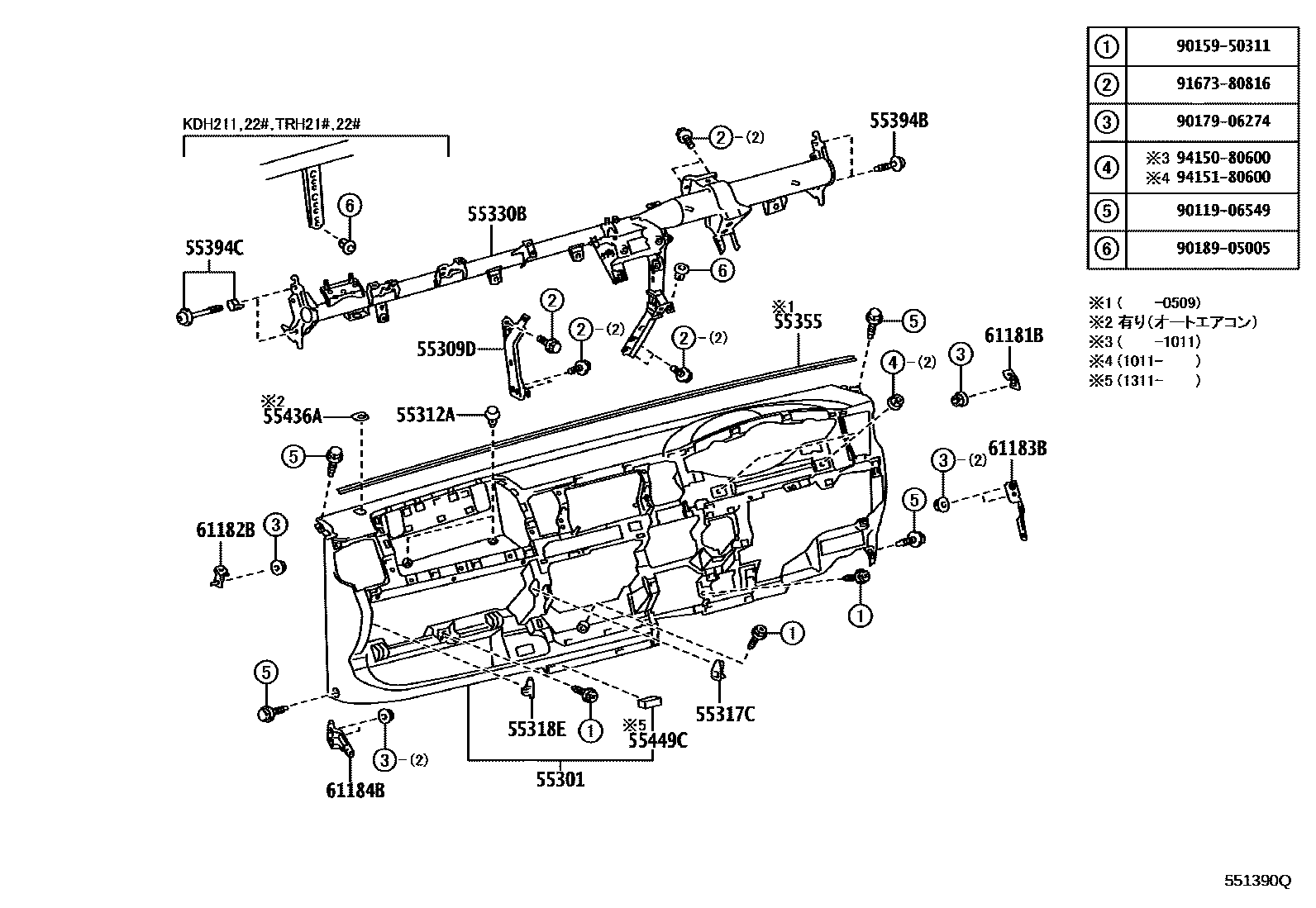

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55301PANEL SUB-ASSY, INSTRUMENT

main55300-26160-B0supersedes 55300-26150-B0iTRH221,226..02S;TRH214,219,224,229..GC,GL200408-201008

DK.GRAY,TRIM1#

main55300-26220-B0supersedes 55300-26210-B0iKDH211,223,TRH211,216,223,228..(GL,SGL)..CBU; TRH221,226..02S;TRH214,219,224,229..GC,GL201008-201312

main55300-26120-B0supersedes 55300-26110-B0iKDH201,206,TRH200..SGL200408-201008

main55300-26150-B0supersedes 55300-26160-B0iTRH214,219..DX200408-201312

main55300-26200-B0supersedes 55300-26190-B0iKDH20#,TRH200..SGL201008-201312

55309DBRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR

main55309-26030iKDH20#,TRH200200408-201312

main55309-26050iKDH211,22#,TRH21#,22#200408-201312

55312ACLIP, INSTRUMENT PANEL

main90467-07164×2iKDH20#,211,22#,TRH200,21#,22#200410-201010

main90467-07201×2iKDH20#,TRH200,21#200408-200410

main90467-07215×2iKDH20#,211,22#,TRH200,21#,22#201011-201312

55317CPATCH, INSTRUMENT SIDE, LOWER RH

main55317-26070-B0iKDH20#,211,22#,TRH200,21#,22#200408-201203

DK.GRAY,TRIM1#

main55317-26071iTRH229..IV5201204-201205

main55317-26071-B0iTRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228201204-201312

DK.GRAY,TRIM1#

55318EPATCH, INSTRUMENT SIDE, LOWER LH

main55318-26060-B0iKDH20#,211,22#,TRH200,21#,22#200408-201203

DK.GRAY,TRIM1#

main55318-26061iTRH229..IV5201204-201205

main55318-26061-B0iTRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228201204-201312

DK.GRAY,TRIM1#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-26270iKDH20#,TRH200200408-201312

main55330-26290iKDH211,22#,TRH21#,22#200408-201312

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-26080iKDH20#,TRH200200408-200509

main55355-26090iKDH22#,TRH21#,22#200408-200509

55394BBOLT, INSTRUMENT PANEL

main55394-26020×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

55394CBOLT, INSTRUMENT PANEL

main55394-26030×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-26060-B0iTRH221,226..02S;KDH223,TRH223,228..GL..CBU;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL201008-201312

DK.GRAY,TRIM1#

55449CCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2

main55448-26020iKDH20#,211,22#,TRH200,21#,22#201311-201312

61181BBRACKET, INSTRUMENT PANEL SIDE, NO.1 RH

main61181-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH

main61182-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

61183BBRACKET, INSTRUMENT PANEL SIDE, NO.2 RH

main61183-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

61184BBRACKET, INSTRUMENT PANEL SIDE, NO.2 LH

main61184-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

9011906549

main90119-06549

9015950311

main90159-50311

9017906274

main90179-06274

9018905005

main90189-05005

9167380816

main91673-80816

9415080600

main94150-80600

9415180600

main94151-80600

22 parts on this diagram · 4 diagrams in section
