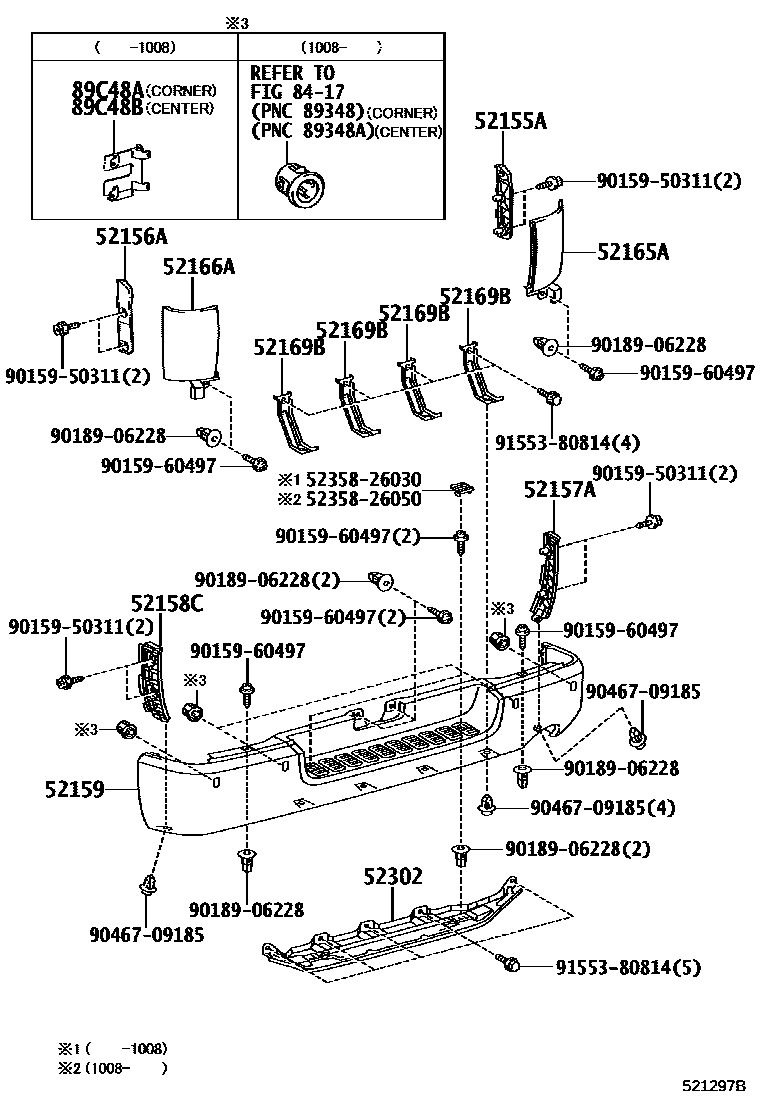

REAR BUMPER & BUMPER STAY

0001 1��(�����) 0002 1��(�����)

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-26150iKDH20#,211,22#,TRH200,21#,22#200408-201312

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

52159COVER, REAR BUMPER

main52159-26410-A0supersedes 52159-26400-A0iKDH211,TRH211,216; KDH221,TRH221,226..06S200709-201008

main52159-26410-B0supersedes 52159-26400-B0iKDH211,TRH211,216; KDH221,TRH221,226..06S200709-201008

main52159-26410-B1iKDH211,TRH211,216200709-201008

GRAY ME.,2JN

main52159-26410-B2iKDH211,TRH211,216200709-201008

GRAY ME.,1G3

main52159-26410-C0iKDH211,TRH211,216200709-201008

BLACK MC.,209

main52159-26410-J0supersedes 52159-26400-J0iKDH211,TRH211,216; KDH221,TRH221,226..06S; TRH223,228..IV5200709-201008

main52159-26600-A0supersedes 52159-26590-A0iKDH211,TRH211,216; KDH221,TRH221,226..06S; KDH223,TRH223,224,228,229..IV5201008-201312

main52159-26600-A1iKDH211,TRH211,216201008-201312

WHITE PEARL CS.,070

main52159-26600-B0supersedes 52159-26590-B0iKDH211,TRH211,216; KDH221,TRH221,226..06S; KDH223,TRH223,224,228,229..IV5201008-201312

main52159-26600-B1iKDH211,TRH211,216201008-201312

GRAY ME.,1G3

main52159-26600-C0iKDH211,TRH211,216201008-201312

BLACK MC.,209

main52159-26600-J0iKDH211,TRH211,216; KDH221,TRH221,226..06S201008-201312

main52159-26310supersedes 52159-26300iKDH20#,TRH200..DX..CBU200408-201008

main52159-26320-A0iKDH20#,TRH200..(06S,09S)..CBU200709-201008

main52159-26320-B2iKDH20#,TRH200..(06S,09S)..CBU200709-201008

main52159-26320-J0iKDH20#,TRH200..(06S,09S)..CBU200709-201008

main52159-26330-A0iKDH20#,TRH200..(06S,09S)..CBU200709-201008

main52159-26330-B0supersedes 52159-26320-B0iKDH20#,TRH200..SGL200408-201008

main52159-26330-B1supersedes 52159-26320-B1iKDH20#,TRH200..SGL200408-200709

main52159-26330-B2iKDH20#,TRH200..(06S,09S)..CBU200709-201008

main52159-26330-B3supersedes 52159-26320-B3iKDH20#,TRH200..SGL200709-201008

main52159-26330-C0supersedes 52159-26320-C0iKDH20#,TRH200..SGL200709-201008

main52159-26330-J0iKDH20#,TRH200..(06S,09S)..CBU200709-201008

main52159-26350supersedes 52159-26340iTRH214,219..DX;KDH222,223,227,TRH223,228..CBU200408-201008

main52159-26360-A0iTRH214,219..DX200602

main52159-26360-B1iTRH214,219..DX200602

main52159-26360-J0iTRH214,219..DX200602

main52159-26370-A0iTRH214,219..DX200602

main52159-26370-B1iTRH214,219..DX200602

main52159-26370-C0supersedes 52159-26360-C0iTRH214,219..GL200709-201008

main52159-26370-F0supersedes 52159-26360-F0iTRH221,226..02S; TRH224,229..CBU200501-201008

main52159-26370-J0iTRH214,219..DX200602

main52159-26390supersedes 52159-26380iKDH220,221,225,TRH221,226..06S200501-201008

main52159-26400-A0iKDH221,TRH221,226..06S200709-201008

main52159-26400-B0iKDH221,TRH221,226..06S200709-201008

main52159-26400-J0iKDH221,TRH221,226..06S; TRH223,228..IV5200709-201008

main52159-26500supersedes 52159-26490iKDH20#,TRH200..DX..CBU201008-201312

main52159-26510-A0iKDH20#,TRH200..(06S,09S)..CBU; KDH20#,TRH200..SGL;KDH20#,TRH200..IV5201008-201312

main52159-26510-B0iKDH20#,TRH200..(06S,09S)..CBU; KDH20#,TRH200..SGL;KDH20#,TRH200..IV5201008-201312

main52159-26510-D0iKDH20#,TRH200..SGL201211-201311

main52159-26510-J0iKDH20#,TRH200..(06S,09S)..CBU; KDH20#,TRH200..SGL201008-201312

main52159-26520-A0iKDH20#,TRH200..(06S,09S)..CBU; KDH20#,TRH200..SGL;KDH20#,TRH200..IV5201008-201312

main52159-26520-A1supersedes 52159-26510-A1iKDH20#,TRH200..SGL201008-201312

main52159-26520-B0supersedes 52159-26510-B0iKDH20#,TRH200..(06S,09S)..CBU; KDH20#,TRH200..SGL;KDH20#,TRH200..IV5201008-201312

main52159-26520-B1supersedes 52159-26510-B1iKDH20#,TRH200..SGL201008-201312

main52159-26520-C0supersedes 52159-26510-C0iKDH20#,TRH200..SGL201008-201312

main52159-26520-D0iKDH20#,TRH200..SGL201211-201311

main52159-26520-J0iKDH20#,TRH200..(06S,09S)..CBU; KDH20#,TRH200..SGL201008-201312

main52159-26540supersedes 52159-26530iTRH214,219..DX;KDH223,TRH223,228..CBU201008-201312

main52159-26560-A0supersedes 52159-26550-A0iTRH221,226..02S;TRH214,219,224,229..(GC,GL)..CBU201008-201312

main52159-26560-A1supersedes 52159-26550-A1iTRH221,226..02S;TRH214,219,224,229..(GC,GL)..CBU201008-201312

main52159-26560-B0supersedes 52159-26550-B0iTRH221,226..02S;TRH214,219,224,229..(GC,GL)..CBU201008-201312

main52159-26560-C0supersedes 52159-26550-C0iTRH214,219..GL201008-201312

main52159-26560-F0supersedes 52159-26550-F0iTRH214,219..GL; TRH221,224,226,229..HRF..(02S,10S)..CBU; TRH221,226..SHRF201008-201312

main52159-26560-J0supersedes 52159-26550-J0iTRH221,226..02S;TRH214,219,224,229..(GC,GL)..CBU201008-201312

main52159-26580supersedes 52159-26570iKDH221,TRH221,226..06S201008-201312

main52159-26590-A0iKDH221,TRH221,226..06S; KDH223,TRH223,224,228,229..IV5201008-201312

main52159-26590-B0iKDH221,TRH221,226..06S; KDH223,TRH223,224,228,229..IV5201008-201312

main52159-26590-J0iKDH221,TRH221,226..06S201008-201312

main52159-26600-D0iKDH211,TRH211,216201211-201311

52165ACOVER, REAR BUMPER, UPR RH

main52165-26020-A1iKDH20#,211,22#,TRH200,21#,22#200408-201008

WHITE,058

main52165-26020-A2iTRH221,226..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU200709-201008

WHITE PEARL CS.,070

main52165-26020-B0iKDH20#,TRH200..SGL200408-200709

DARK GRAY M.M.,1E2

main52165-26020-B1iKDH20#,211,TRH200,211,216..SGL; KDH20#,22#,TRH200,214,219,22#..DX,GC,GL200408-201008

SILVER M.M.,1E7; SILVER M.M.,1E7 ,2JN

main52165-26020-B2iKDH20#,211,TRH200,211,216..SGL200709-201008

GRAY ME.,1G3

main52165-26020-C1iKDH20#,211,TRH200,21#..GL,SGL200709-201008

BLACK MC.,209

main52165-26020-F0iTRH214,219..DX;KDH201,206,223..(DX,GL)..CBU;KDH200,205,220,221,222,225,227,TRH200,221,223,226,228..03S,06S,09S,15S200408-201008

LT.YELLOW,599

main52165-26020-F1iTRH221,226..02S; TRH224,229..CBU200501-201008

GOLD ME.,2JM ,2JZ; GOLD ME.,2JM ,2JZ ,593

main52165-26020-G0iKDH201,206..DX..CBU;KDH222,227,TRH223,228..IV5;KDH200,205,220,221,225,TRH200,221,226..03S,06S,09S200408-201008

DK.GREEN M.M.,6S3

main52165-26020-J0iKDH201,206,223,TRH224,229..CBU;KDH200,205,211,220,221,222,225,227,TRH200,21#,221,223,226,228200408-201008

DK.BLUE M.M.,8P4

main52165-26030-A0iKDH20#,211,22#,TRH200,21#,22#201008-201212

WHITE,058

main52165-26030-A1iTRH221,226..HRF..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU; TRH221,226..SHRF201008-201212

WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2JZ

main52165-26030-B0iKDH20#,211,22#,TRH200,21#,22#201008-201212

SILVER M.M.,1E7

main52165-26030-B1iKDH20#,211,TRH200,211,216..SGL201008-201212

GRAY ME.,1G3

main52165-26030-C0iKDH20#,211,TRH200,21#..GL,SGL201008-201212

BLACK MC.,209

main52165-26030-F0iKDH20#,211,TRH200,21#..GL,SGL; TRH221,224,226,229..HRF..(02S,10S)..CBU201008-201212

GOLD ME.,2JZ ,593; GOLD ME.,593

main52165-26030-F1iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..CBU201008-201212

LT.YELLOW,599

main52165-26030-G0iKDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU201008-201212

DK.GREEN M.M.,6S3

main52165-26030-J0iKDH20#,211,22#,TRH200,21#,22#..CBU201008-201212

DK.BLUE M.M.,8P4

main52165-26040-A0iKDH20#,211,22#,TRH200,21#,22#201212-201312

WHITE,058

main52165-26030-D0iKDH20#,211,TRH200,211,216..SGL201211-201311

52166ACOVER, REAR BUMPER, UPR LH

main52166-26020-A1iKDH20#,211,22#,TRH200,21#,22#200408-201008

WHITE,058

main52166-26020-A2iTRH221,226..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU200709-201008

WHITE PEARL CS.,070

main52166-26020-B0iKDH20#,TRH200..SGL200408-200709

DARK GRAY M.M.,1E2

main52166-26020-B1iKDH20#,211,TRH200,211,216..SGL; KDH20#,22#,TRH200,214,219,22#..DX,GC,GL200408-201008

SILVER M.M.,1E7; SILVER M.M.,1E7 ,2JN

main52166-26020-B2iKDH20#,211,TRH200,211,216..SGL200709-201008

GRAY ME.,1G3

main52166-26020-C1iKDH20#,211,TRH200,21#..GL,SGL200709-201008

BLACK MC.,209

main52166-26020-F0iTRH214,219..DX;KDH201,206,223..(DX,GL)..CBU;KDH200,205,220,221,222,225,227,TRH200,221,223,226,228..03S,06S,09S,15S200408-201008

LT.YELLOW,599

main52166-26020-F1iTRH221,226..02S; TRH224,229..CBU200501-201008

GOLD ME.,2JM ,2JZ; GOLD ME.,2JM ,2JZ ,593

main52166-26020-G0iKDH201,206..DX..CBU;KDH222,227,TRH223,228..IV5;KDH200,205,220,221,225,TRH200,221,226..03S,06S,09S200408-201008

DK.GREEN M.M.,6S3

main52166-26020-J0iKDH201,206,223,TRH224,229..CBU;KDH200,205,211,220,221,222,225,227,TRH200,21#,221,223,226,228200408-201008

DK.BLUE M.M.,8P4

main52166-26030-A0iKDH20#,211,22#,TRH200,21#,22#201008-201212

WHITE,058

main52166-26030-A1iTRH221,226..HRF..02S;KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU; TRH221,226..SHRF201008-201212

WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2JZ

main52166-26030-B0iKDH20#,211,22#,TRH200,21#,22#201008-201212

SILVER M.M.,1E7

main52166-26030-B1iKDH20#,211,TRH200,211,216..SGL201008-201212

GRAY ME.,1G3

main52166-26030-C0iKDH20#,211,TRH200,21#..GL,SGL201008-201212

BLACK MC.,209

main52166-26030-F0iKDH20#,211,TRH200,21#..GL,SGL; TRH221,224,226,229..HRF..(02S,10S)..CBU201008-201212

GOLD ME.,2JZ ,593; GOLD ME.,593

main52166-26030-F1iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..CBU201008-201212

LT.YELLOW,599

main52166-26030-G0iKDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU201212-201312

DK.GREEN M.M.,6S3

main52166-26030-J0iKDH20#,211,22#,TRH200,21#,22#..CBU201212-201312

DK.BLUE M.M.,8P4

main52166-26040-A0iKDH20#,211,22#,TRH200,21#,22#201212-201312

WHITE,058

main52166-26030-D0iKDH20#,211,TRH200,211,216..SGL201211-201311

52169BBRACKET, REAR BUMPER, CENTER

main58385-26070×4iKDH20#,211,22#,TRH200,21#,22#200408-201312

52302STEP SUB-ASSY, BACK

main52302-26010iKDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..03S,05S,06S,09S200408-201312

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-44010×2iKDH222,223,227,TRH214,219,22#..(02S,10S,15S)..CBU200408-201008

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-44010×2iKDH211,TRH211,216200709-201008

5235826030SHUTTER, REAR CROSS TO BUMPER

main52358-26030

5235826050SHUTTER, REAR CROSS TO BUMPER

main52358-26050

9015950311

main90159-50311

9015960497

main90159-60497

9018906228

main90189-06228

9046709185

main90467-09185

9155380814

main91553-80814

19 parts on this diagram · 2 diagrams in section
