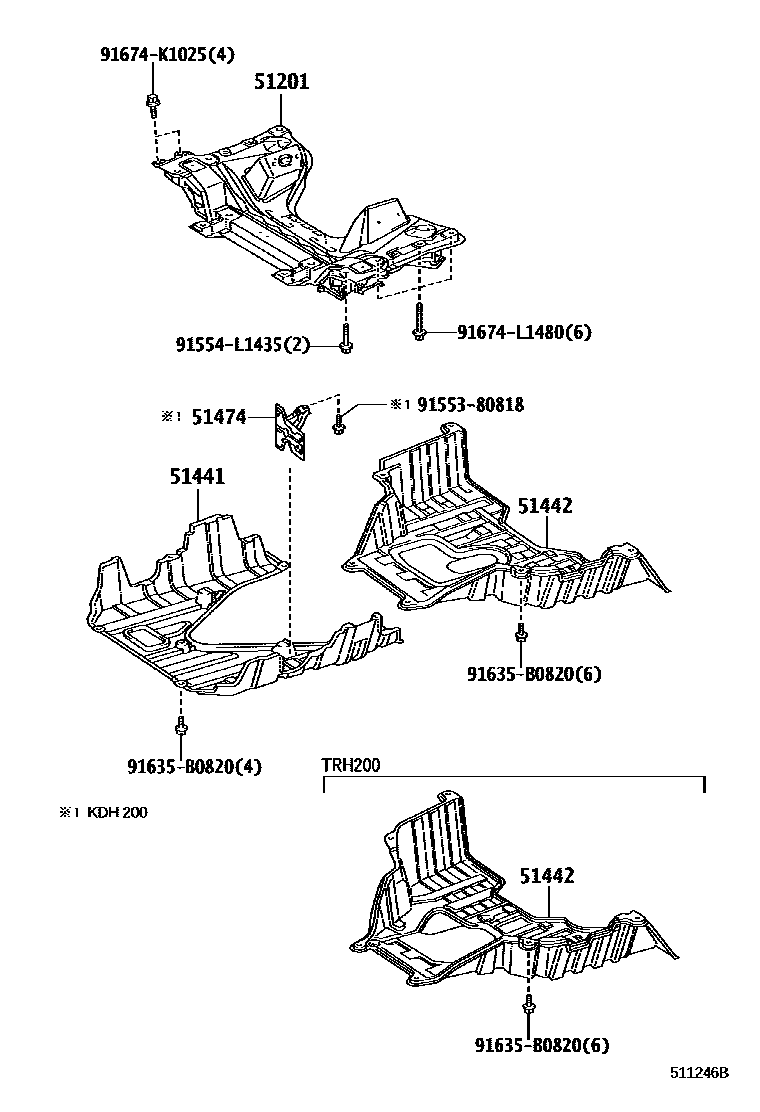

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-26210iKDH200,201,TRH200200408-201312

main51201-26250iKDH211,220,221,222,223,TRH211,214,221,223,224200408-201312

main51201-26290iKDH205,206200408-201312

main51201-26300iKDH225,227,TRH216,219,226,228,229200408-201312

51441COVER, ENGINE UNDER, NO.1

main51405-26140iKDH201200709-201008

main51405-26150iKDH206200709-200710

main51405-26151iKDH206200711-201008

main51405-26160iKDH211,22#200709-201008

main51441-26160iKDH201201008-201312

main51441-26170iKDH205200408-200709

main51441-26171iKDH206201008-201312

main51441-26180iKDH220,222,TRH211,214,221,223,224200408-201312

main51441-26190iKDH225,227,TRH216,219,226,228,229200408-200710

main51441-26191iTRH216,219,226,228,229200711-201312

51442COVER, ENGINE UNDER, NO.2

main51406-26130iKDH200200408-200709

main51406-26140iKDH205,206200408-201008

main51406-26160iKDH225,227,TRH216,219,226,228,229200408-201312

main51406-26180iKDH201..V1;KDH201..V2..5F200709-201007

main51406-26190iKDH201..V2..4FC200709-201008

main51406-26210iKDH201201008-201312

main51442-26140iKDH206201008-201312

main51442-26150iKDH211,220,221,222,223200501-201312

main51442-26180iTRH211,214,221,223,224200408-201312

main51406-26170iTRH200200408-201007

main51406-26200iTRH200201008-201312

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51074-26010iKDH20#,211,22#200408-201312

9155380818

main91553-80818

91554L1435

main91554-L1435

91635B0820

main91635-B0820

91674K1025

main91674-K1025

91674L1480

main91674-L1480

9 parts on this diagram · 5 diagrams in section
