BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1905VACUUM PUMP

→ Go to FIG 19-05

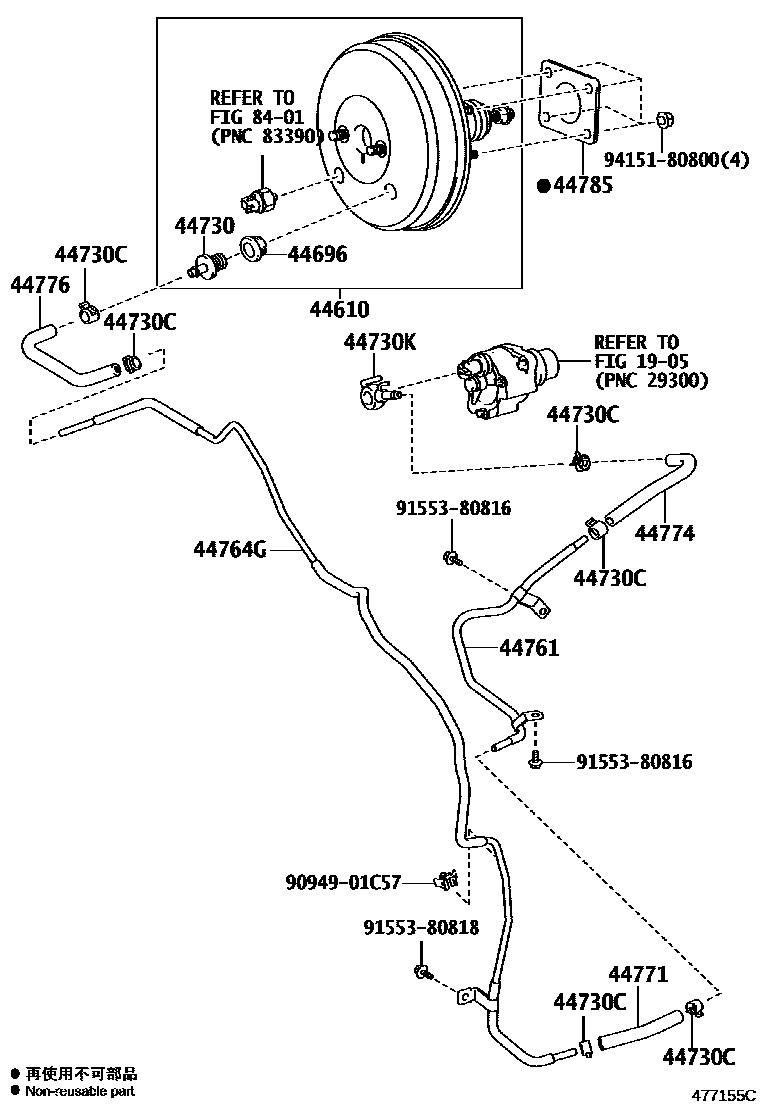

44610BOOSTER ASSY, BRAKE

main44610-26660iTRH200,21#,22#200408-200703

main44610-26661iTRH200,21#,22#200704-201312

main44610-26700iKDH20#,22#200408-200703

main44610-26701iKDH20#,211,22#200704-201312

44696GROMMET, CHECK VALVE

main90480-24015iKDH20#,211,22#,TRH200,21#,22#200408-201312

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iKDH20#,211,22#,TRH200,21#,22#200408-201312

44730CCLIP(FOR VACUUM HOSE)

main96133-41500×6iKDH20#,211,22#,TRH200,21#,22#200408-201312

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-09175iKDH20#,211,22#200408-201312

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-26360iTRH200,21#,22#200408-200608

main44761-26380iKDH20#200408-200501

main44761-26381iKDH20#,22#200501-200608

main44761-26410iTRH200,21#,22#200608-201312

main44761-26420iKDH20#,211,22#200608-201312

44764GTUBE, CONNECTOR TO BRAKE BOOSTER

main44764-26090iKDH20#,TRH200200408-200608

main44764-26110iKDH22#,TRH21#,22#200408-200608

main44764-26150iKDH20#,TRH200200608-200708

main44764-26151iKDH20#,TRH200200709-201312

main44764-26160iKDH22#,TRH21#,22#200608-200708

main44764-26161iKDH211,22#,TRH21#,22#200709-201312

44771HOSE, VACUUM TUBE CONNECTOR

main44770-26010iKDH20#,211,22#,TRH200,21#,22#200608-201312

main44771-26150iKDH20#,22#,TRH200,21#,22#200408-200604

main95446-09160iKDH20#,22#,TRH200,21#,22#200605-200608

44774HOSE, UNION TO CONNECTOR TUBE

main44774-26380iTRH200200408-201312

main44774-26390iKDH20#200408-200501

main44774-26391iKDH20#200501-201312

main44774-26410iTRH21#,22#200408-201312

main44774-26421iKDH211,22#200501-201312

44776HOSE, BRAKE BOOSTER

main44776-26040iKDH20#,211,22#,TRH200,21#,22#200408-201312

44785GASKET, BRAKE BOOSTER

main44785-32010iKDH20#,211,22#,TRH200,21#,22#200408-201312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9094901C57

main90949-01C57

9155380816

main91553-80816

9155380818

main91553-80818

9415180800

main94151-80800

17 parts on this diagram · 4 diagrams in section
