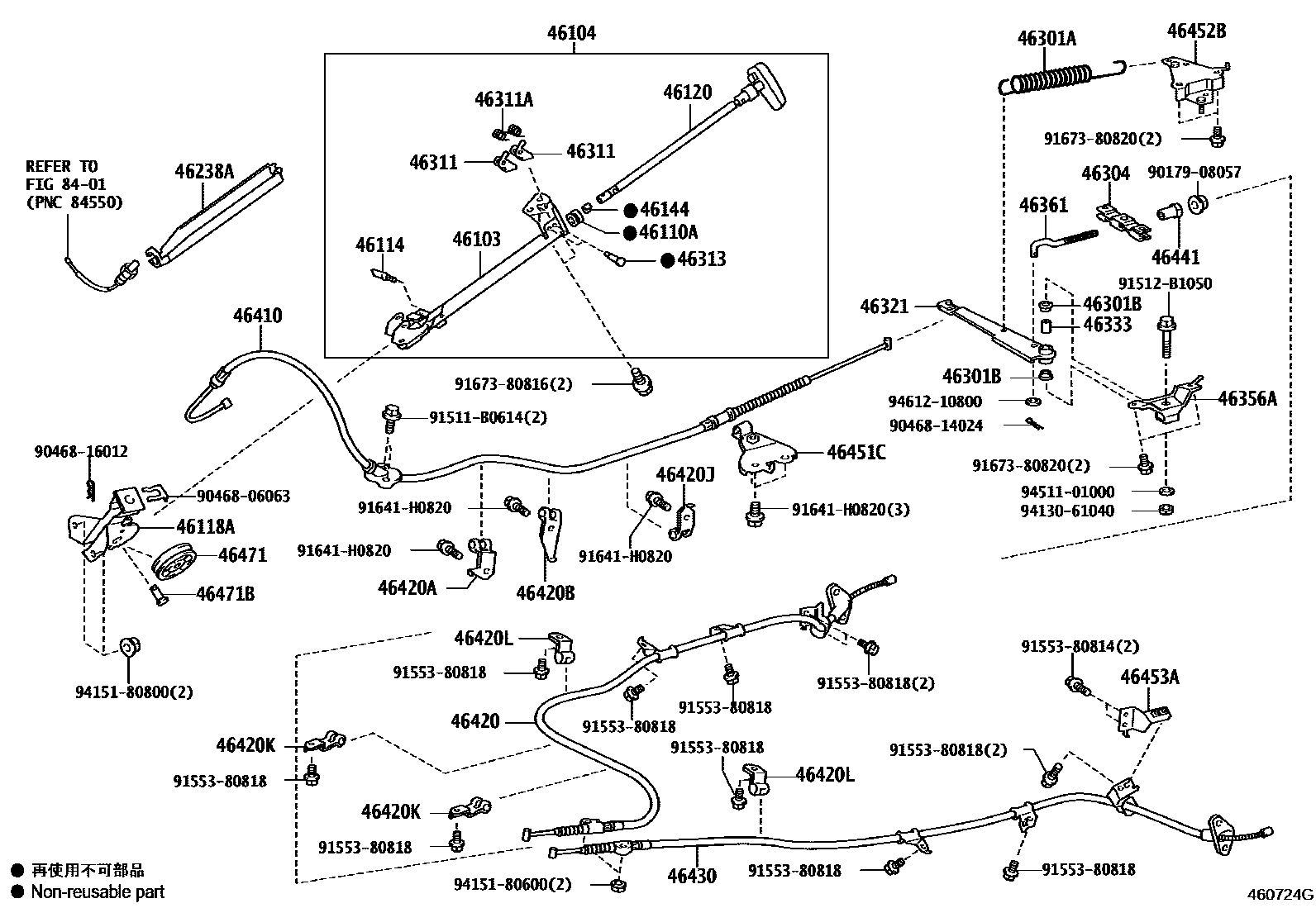

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-26200iKDH20#,TRH200200408-200910

main46103-26201iKDH20#,TRH200200911-201312

main46103-26220iKDH211,22#,TRH21#,22#200408-200910

main46103-26221iKDH211,22#,TRH21#,22#200911-201312

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-26190iKDH20#,TRH200200408-200910

main46104-26191iKDH20#,TRH200200911-201312

main46104-26230iKDH211,22#,TRH21#,22#200408-200910

main46104-26231iKDH211,22#,TRH21#,22#200911-201312

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iKDH20#,211,22#,TRH200,21#,22#200408-201312

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iKDH20#,211,22#,TRH200,21#,22#200408-201312

46118ABRACKET, PLUNGER GUIDE SUPPORT

main46118-26110iKDH20#,211,22#,TRH200,21#,22#200408-201312

46120PLUNGER ASSY, PARKING BRAKE

main46120-26170iKDH20#,211,22#,TRH200,21#,22#200408-201312

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iKDH20#,211,22#,TRH200,21#,22#200408-201312

46238PROTECTOR, PLUNGER LOCK PIN

main4623A-26010iKDH20#,211,22#,TRH200,21#,22#200911-201312

46238APROTECTOR, PARKING BRAKE PLUNGER

main46238-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main46295-26011iKDH20#,211,22#,TRH200,21#,22#200408-201312

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-16009×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-28010iKDH20#,211,22#,TRH200,21#,22#200408-201312

46311PAWL, PARKING BRAKE

main46311-26010×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08106iKDH20#,211,22#,TRH200,21#,22#200408-201312

46313PIN, PARKING BRAKE PAWL

main46313-40010×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-26200iKDH20#,211,22#,TRH200,21#,22#200408-201312

46333PIPE, INTERMEDIATE LEVER

main46333-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46356-26170iKDH20#,211,22#,TRH200,21#,22#200408-201312

46361ROD, PARKING BRAKE PULL

main46361-26070iKDH20#,211,22#,TRH200,21#,22#200408-201312

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26480iKDH20#,TRH200200408-201312

main46410-26490iKDH211,22#,TRH21#,22#200408-201312

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26610iTRH200200408-200709

main46420-26611iKDH20#,TRH200200709-201312

main46420-26620iTRH21#200408-200709

main46420-26621iKDH211,TRH21#200709-201312

main46420-26630iTRH22#200501-200709

main46420-26631iKDH22#,TRH22#200709-201312

main46420-26640iKDH20#200408-200709

main46420-26650iKDH22#200501-200709

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-26010iKDH20#,22#,TRH200,21#,22#200408-200606

main46411-26011iKDH20#,211,22#,TRH200,21#,22#200607-201312

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-26020iKDH20#,22#,TRH200,21#,22#200408-200606

main46411-26021iKDH20#,211,22#,TRH200,21#,22#200607-201312

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46411-26030iKDH20#,22#,TRH200,21#,22#200408-200606

main46411-26031iKDH20#,211,22#,TRH200,21#,22#200607-201312

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46421-26010×2iKDH20#,22#,TRH200,21#,22#200408-200606

main46421-26011×2iKDH20#,211,22#,TRH200,21#,22#200607-201312

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46421-26020×2iKDH20#,TRH200,21#200408-200709

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26440iKDH20#,211,TRH200,21#200408-201312

main46430-26450iKDH22#,TRH22#200501-201312

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iKDH20#,211,22#,TRH200,21#,22#200408-201312

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-26230iKDH20#,211,22#,TRH200,21#,22#200408-201312

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-26210iKDH20#,211,22#,TRH200,21#,22#200408-201312

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-26080iKDH20#,211,22#,TRH200,21#,22#200408-201312

46471PULLEY, WIRE

main46471-30010iKDH20#,211,22#,TRH200,21#,22#200408-201312

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08156iKDH20#,211,22#,TRH200,21#,22#200408-201312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908057

main90179-08057

9046806063

main90468-06063

9046814024

main90468-14024

9046816012

main90468-16012

91511B0614

main91511-B0614

91512B1050

main91512-B1050

9155380814

main91553-80814

9155380818

main91553-80818

91641H0820

main91641-H0820

9167380816

main91673-80816

9167380820

main91673-80820

9413061040

main94130-61040

9415180600

main94151-80600

9415180800

main94151-80800

9451101000

main94511-01000

9461210800

main94612-10800

50 parts on this diagram · 4 diagrams in section
