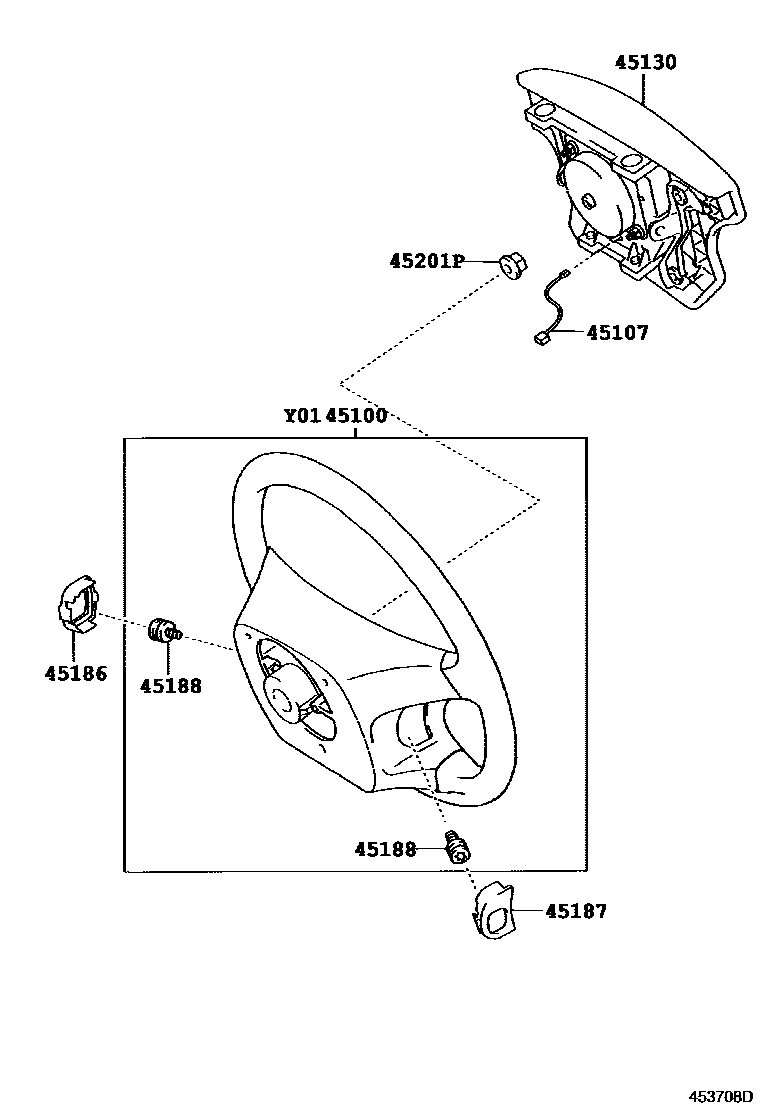

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-58010-B0iKDH20#,211,22#,TRH200,21#,22#200408-201312

main45100-26340-B0iKDH20#,211,TRH200,211,216..SGL201211-201311

45107WIRE SUB-ASSY, HORN BUTTON

main45107-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

45130BUTTON ASSY, HORN

main45130-26360-B0iKDH20#,22#,TRH200,21#,221,223,226,228..DX200408-200709

DK.GRAY,TRIM1#

main45130-58011-B0iTRH221,226..SHRF;KDH201,206,221,223;TRH200..V1..HRF..5D;KDH200,205,211,222,227,TRH200,21#,223,224,228,229..GC,GL,SGL200408-201312

DK.GRAY,TRIM1#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-58010-B0iKDH20#,211,22#,TRH200,21#,22#200408-201312

DK.GRAY,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-58010-B0iKDH20#,211,22#,TRH200,21#,22#200408-201312

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

45201PNUT, STEERING WHEEL SET

main90179-12071iKDH20#,211,22#,TRH200,21#,22#200408-201312

7 parts on this diagram · 1 diagram in section
