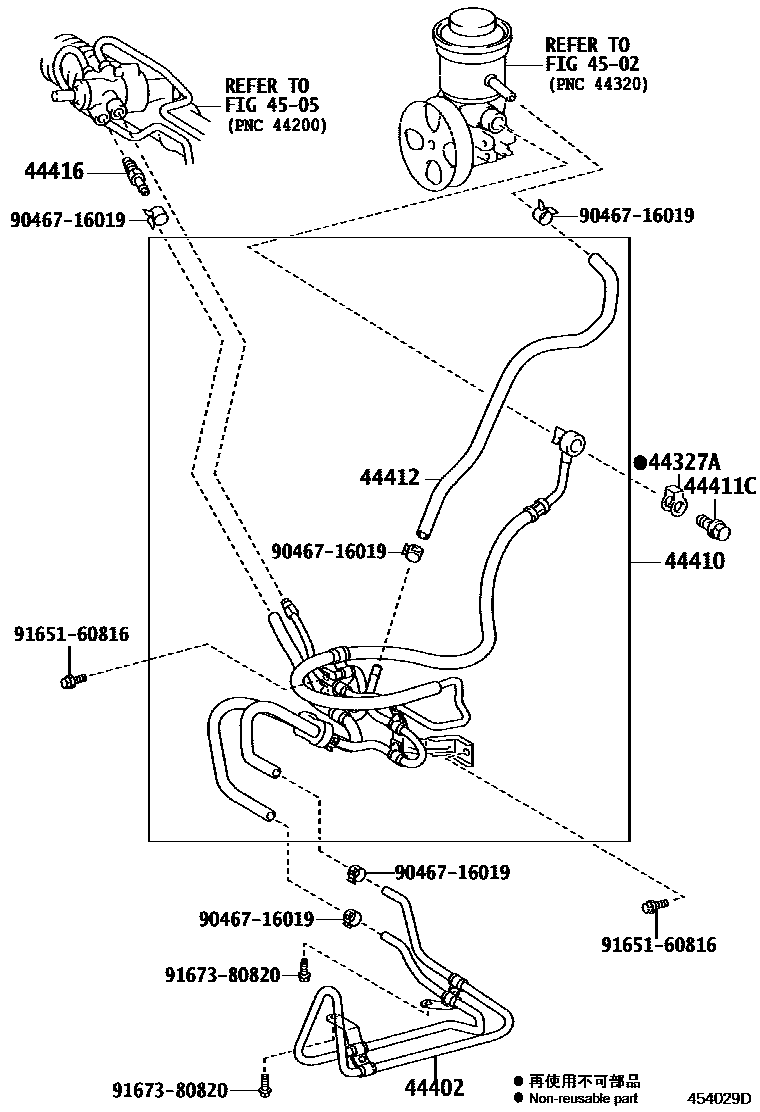

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30040iKDH20#,211,22#,TRH200,21#,22#200408-201312

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-26010iTRH200200408-201312

44410TUBE ASSY, PRESSURE FEED

main44410-26A30iTRH211,214,221,223,224200408-201312

main44410-26A50iTRH216,219,226,228,229200408-201312

main44410-26A60iKDH211,220,221,222,223200501-201312

main44410-26A70iKDH225,227200501-200709

main44410-26A80iTRH200200408-201312

main44410-26B10iKDH200,201200408-201312

main44410-26B20iKDH205,206200408-201312

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16014iKDH20#,211,22#,TRH200,21#,22#200408-201103

main90401-16034iKDH20#,211,22#,TRH200,21#,22#201104-201312

44412HOSE, RETURN

main44412-26410iKDH211,22#200501-201312

main44412-26430iKDH20#200408-201312

main44412-26450iTRH200,211,214,221,223,224200408-201312

main44412-26460iTRH216,219,226,228,229200408-201312

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iKDH20#,22#,TRH200,21#,22#200408-200511

main44416-60370iKDH20#,211,22#,TRH200,21#,22#200512-201312

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9046716019

main90467-16019

9165160816

main91651-60816

9167380820

main91673-80820

11 parts on this diagram · 5 diagrams in section
