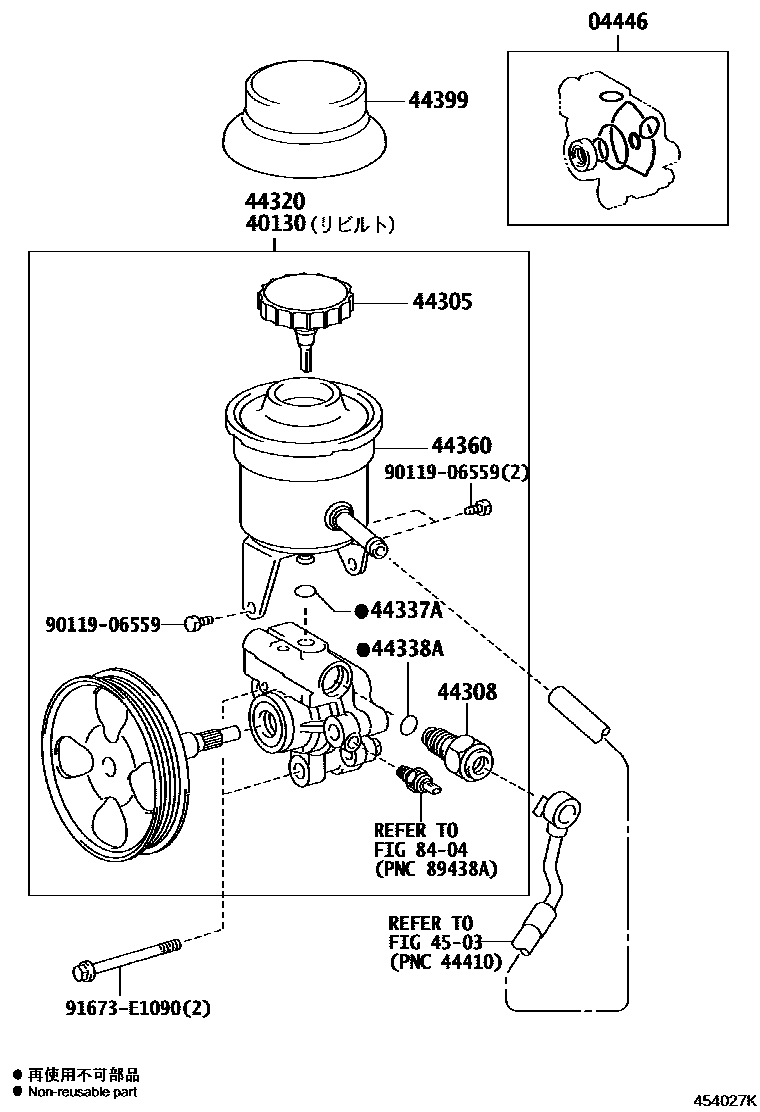

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iTRH200,21#,22#200408-201312

main04446-35070iKDH20#,211,22#200408-201312

40130PUMP ASSY,VANE REBUILT

main40130-26370iTRH200,21#,22#200408-201205

main40130-26371iTRH200,21#,22#201205-201312

main40130-26380iKDH20#,211,22#200408-201312

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iTRH200,21#,22#200408-200801

main44305-22060iTRH200,21#,22#200802-201204

main44305-22061iTRH200,21#,22#201205-201312

main44305-28020iKDH20#,211,22#200408-200802

main44305-28050iKDH20#,211,22#200803-201204

main44305-28051iKDH20#,211,22#201205-201312

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26120iKDH20#,211,22#200408-201312

main44308-42010iTRH200,21#,22#200408-201312

44320PUMP ASSY, VANE

main44310-26370iTRH200,21#,22#200408-201204

main44310-26371iTRH200,21#,22#201205-201312

main44310-26380iKDH20#,211,22#200408-201312

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iKDH20#,211,22#,TRH200,21#,22#200408-201312

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iKDH20#,211,22#,TRH200,21#,22#200408-201312

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-25060iTRH200,21#,22#200408-201312

main44360-26140iKDH20#,211,22#200408-201204

main44360-26141iKDH20#,211,22#201205-201312

44399COVER, VANE PUMP OIL RESERVOIR

main44399-26010iTRH200,21#,22#200408-200712

main44399-26011iTRH200,21#,22#200712-201204

main44399-26012iTRH200,21#,22#201205-201312

4503

8404

9011906559

main90119-06559

91673E1090

main91673-E1090

13 parts on this diagram · 2 diagrams in section
