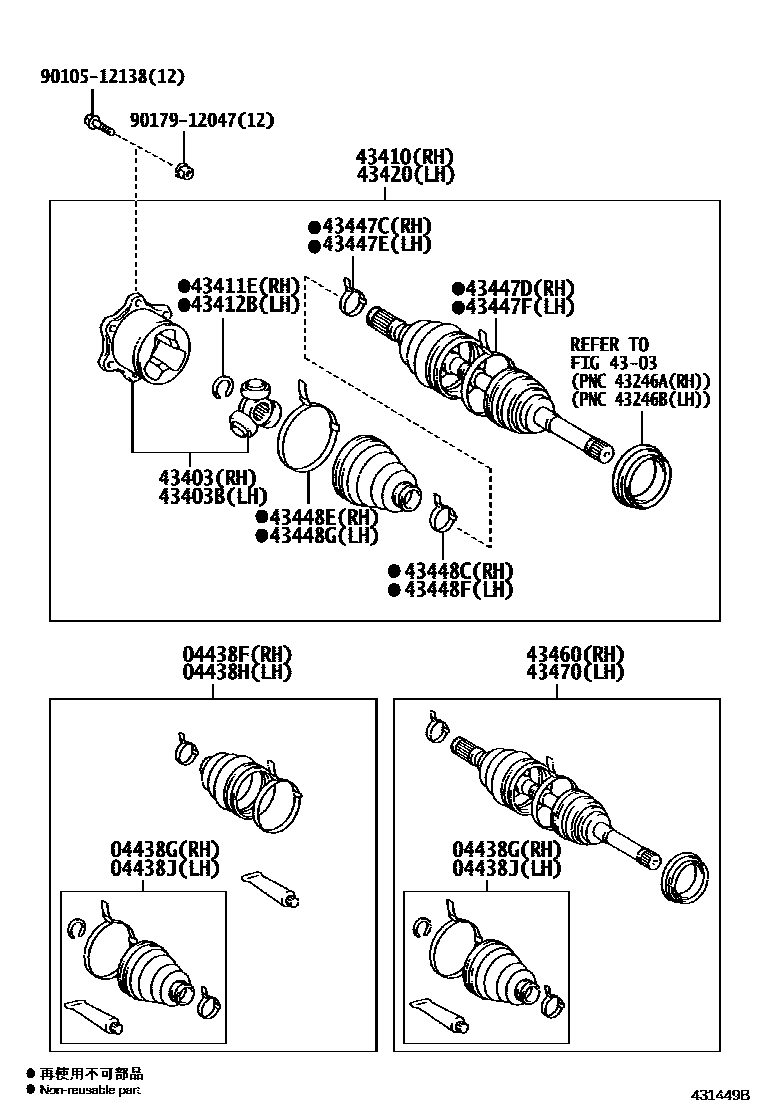

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-25021iKDH206,TRH216,219,226,228,229201306-201312

sub04427-25022

main04428-25020iKDH205,206,225,227,TRH216,219,226,228,229200508-201306

main04438-25020iKDH205,225,227,TRH219,226,228,229200408-200508

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-25011iKDH206,TRH216,219,226,228,229201306-201312

sub04437-25012

main04438-25010iKDH205,206,225,227,TRH216,219,226,228,229200408-201306

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-25021iKDH206,TRH216,219,226,228,229201306-201312

sub04427-25022

main04428-25020iKDH205,206,225,227,TRH216,219,226,228,229200508-201306

main04438-25020iKDH205,225,227,TRH219,226,228,229200408-200508

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-25011iKDH206,TRH216,219,226,228,229201306-201312

sub04437-25012

main04438-25010iKDH205,206,225,227,TRH216,219,226,228,229200408-201306

4303

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-26010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43403BJOINT SET, FRONT AXLE INBOARD, LH

main43403-26010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-26080iKDH205,206200408-200712

main43430-26081iKDH206200801-201305

main43430-26082iKDH206201306-201312

main43430-26090iKDH225,227,TRH216,219,226,228,229200408-200712

main43430-26091iTRH216,219,226,228,229200801-201305

main43430-26092iTRH216,219,226,228,229201306-201312

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-29028iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main90520-29028iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-26080iKDH205,206200408-200712

main43430-26081iKDH206200801-201305

main43430-26082iKDH206201306-201312

main43430-26090iKDH225,227,TRH216,219,226,228,229200408-200712

main43430-26091iTRH216,219,226,228,229200801-201305

main43430-26092iTRH216,219,226,228,229201306-201312

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-60110iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01A50iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-60110iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main90949-01A50iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01221iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01222iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main90949-01221iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main90949-01222iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29505iKDH206200709-200801

main43460-29515iTRH216,219..GL,SGL200709-200801

main43460-29555iKDH205200408-200709

main43460-29565iTRH219..DX;KDH225,227,TRH226,228,229200408-200801

main43460-29715iKDH206200801-201306

main43460-29716iKDH206201306-201312

sub43460-29717

main43460-29725iTRH216,219,226,228,229200801-201306

main43460-29726iTRH216,219,226,228,229201306-201312

sub43460-29727

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-29505iKDH206200709-200801

main43460-29515iTRH216,219..GL,SGL200709-200801

main43460-29555iKDH205200408-200709

main43460-29565iTRH219..DX;KDH225,227,TRH226,228,229200408-200801

main43460-29715iKDH206200801-201306

main43460-29716iKDH206201306-201312

sub43460-29717

main43460-29725iTRH216,219,226,228,229200801-201306

main43460-29726iTRH216,219,226,228,229201306-201312

sub43460-29727

9010512138

main90105-12138

9017912047

main90179-12047

23 parts on this diagram · 1 diagram in section
