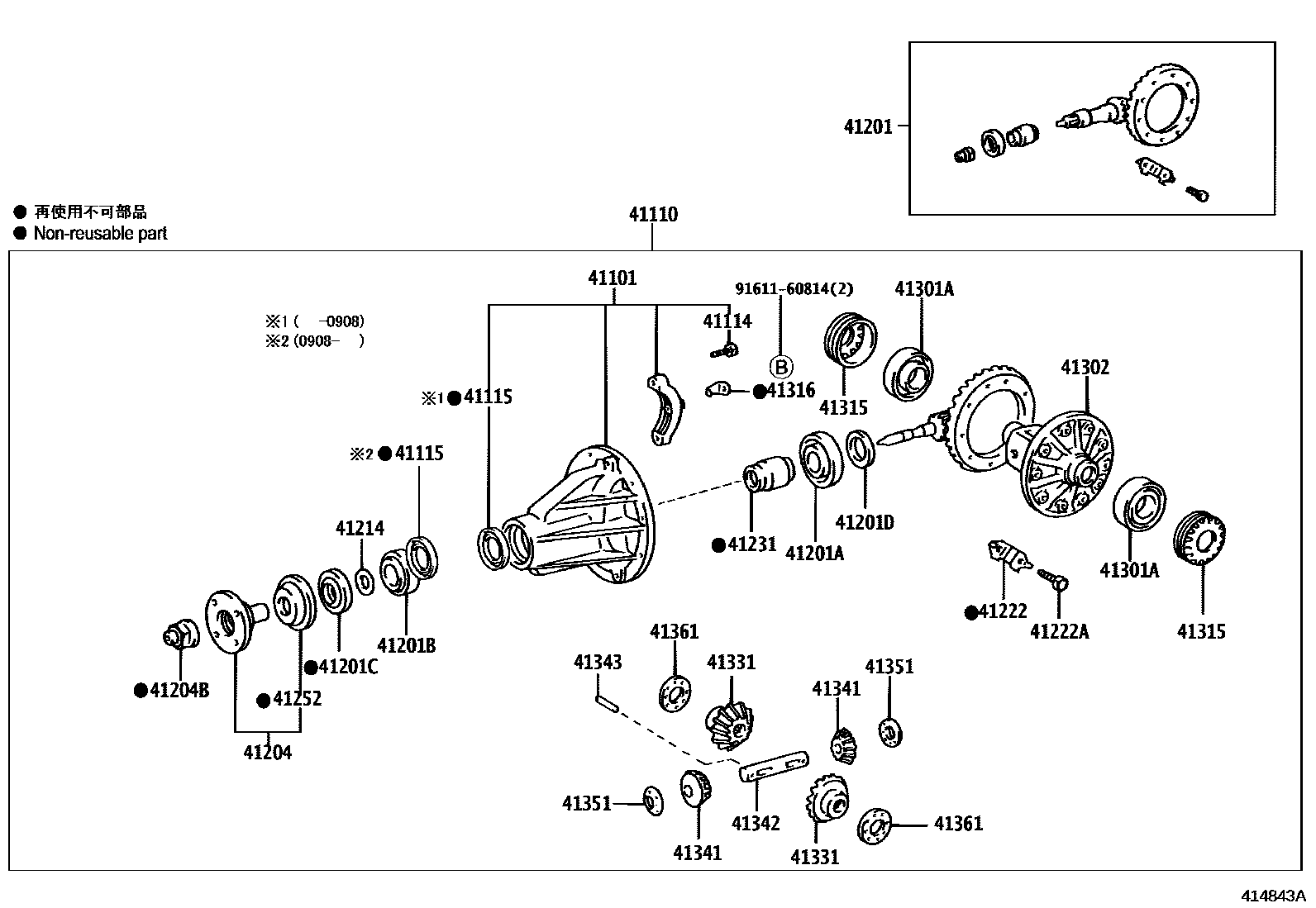

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1W(LSD) 0004 1 0005 1 0006 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35170iTRH200..5F;KDH20#,211,22#,TRH21#,22#200408-200908

main41101-35171iTRH200..5F;KDH20#,211,22#,TRH21#,22#200908-201312

main41101-60160iTRH200..4FC200408-200908

main41101-60161iTRH200..4FC200908-201312

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-25450iKDH201..V2..5F200709-201312

main41110-26430iKDH200..V2..4FC;KDH200,205..V1..5F;KDH201,206,211,221,223..(COM,V1)..4FC200408-201101

main41110-26431iKDH20#,211,22#..(COM,V1)..4FC201101-201312

main41110-26440iTRH200..V2..5F;KDH200,205,220,222,225,227,TRH21#,22#..(COM,V1,WG)..4FC200408-201104

main41110-26441iTRH21#,22#;TRH200..V2..5F201104-201312

main41110-26620iKDH206..5F;KDH200..V2..5F;KDH201..V2..4FC200408-201101

main41110-26621iKDH206..5F;KDH201..V2..4FC201101-201312

main41110-26650iTRH200..V1..4FC200408-201312

main41110-26660iTRH200..V2..4FC200408-201312

main41110-35870iKDH201..V1..5F200709-201312

main41110-3D260iTRH200..V1..5F200408-201101

main41110-3D261iTRH200..V1..5F201101-201312

main41110-3D040iKDH205,225,227,TRH216,219,226,228,229..4FC200408-201104

main41110-3D041iTRH216,219,226,228,229201104-201312

main41110-3D050iKDH206..5F200709-201101

main41110-3D051iKDH206..5F201101-201312

main41110-3D060iKDH205..5F;KDH206..4FC200408-201101

main41110-3D061iKDH206..4FC201101-201312

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053×4iKDH20#,211,22#,TRH200,21#,22#200408-201312

41115RING, DIFFERENTIAL OIL STORAGE

main41115-35010iKDH20#,211,22#,TRH200,21#,22#200408-201312

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80177iKDH206..5F;KDH200..V2..5F;KDH201..V2..4FC200408-201101

main41201-80179iKDH200..V2..4FC;KDH200,205..V1..5F;KDH201,206,211,221,223..(COM,V1)..4FC200408-201101

main41201-80181iTRH200..V2..5F;KDH200,205,220,222,225,227,TRH21#,22#..(COM,V1,WG)..4FC200408-201104

main41201-80182iTRH200..V1..5F200408-201101

main41201-80183iTRH200..V2..4FC200408-201312

main41201-80189iKDH201..V1..5F200709-200712

main41201-80300iTRH200..V1..4FC200408-201312

main41201-80557iKDH201..V2..5F200709-201312

main41201-80564iKDH201..V1..5F200712-201312

main41201-80723iKDH206..5F;KDH201..V2..4FC201101-201312

main41201-80724iKDH20#,211,22#..(COM,V1)..4FC201101-201312

main41201-80732iTRH200..V1..5F201101-201312

main41201-80747iTRH21#,22#;TRH200..V2..5F201104-201312

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35087iKDH20#,211,22#,TRH200,21#,22#200408-201312

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30067iTRH21#,22#;TRH200..V2..5F200408-201104

main90366-30105iTRH21#,22#;TRH200..V2..5F201104-201312

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-41009iKDH20#,211,22#,TRH200,21#,22#200408-201312

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35498iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35499iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35500iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35501iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35502iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35503iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35504iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35505iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35506iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35507iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35508iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35509iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35510iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35511iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35512iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35513iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35514iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35515iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35516iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35517iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90201-35518iKDH20#,211,22#,TRH200,21#,22#200408-201312

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35082iKDH20#,211,22#,TRH200,21#,22#200408-201312

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iKDH20#,211,22#,TRH200,21#,22#200408-201312

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26011iKDH20#,211,22#,TRH200,21#,22#200408-201312

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020×5iKDH20#,211,22#,TRH200,21#,22#200408-201312

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10iKDH20#,211,22#,TRH200,21#,22#200408-201312

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iKDH20#,211,22#,TRH200,21#,22#200408-201312

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35041iKDH20#,211,22#,TRH200,21#,22#200408-201312

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35020iKDH201..5F200709-201312

main41311-60060iKDH201..4FC;KDH200,205,206,211,22#,TRH200,21#,22#200408-201312

main41302-35040iKDH205,225,227,TRH216,219,226,228,229..4FC; KDH205..5F;KDH206..4FC200408-201312

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35020×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

41331GEAR, REAR DIFFERENTIAL SIDE

main41039-34080×2iKDH201..5F200709-201312

main41331-35011×2iKDH201..4FC;KDH200,205,206,211,22#,TRH200,21#,22#200408-201312

41341PINION, REAR DIFFERENTIAL

main41341-35020×2iKDH201..4FC;KDH200,205,206,211,22#,TRH200,21#,22#200408-201312

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iKDH201..4FC;KDH200,205,206,211,22#,TRH200,21#,22#200408-201312

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iKDH201..4FC;KDH200,205,206,211,22#,TRH200,21#,22#200408-201312

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052×2iKDH201..4FC;KDH200,205,206,211,22#,TRH200,21#,22#200408-201312

main41351-30060×4iKDH201..5F; KDH206..5F200709-201312

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-35310×2iKDH201..5F200709-201312

main41361-35320×2iKDH201..5F200709-201312

main41361-35330×2iKDH201..5F200709-201312

main41361-35340×2iKDH201..5F200709-201312

main41361-35350×2iKDH201..5F200709-201312

main41361-40021×2iKDH201..4FC;KDH200,205,206,211,22#,TRH200,21#,22#200408-201312

main41362-40021×2iKDH201..4FC;KDH200,205,206,211,22#,TRH200,21#,22#200408-201312

main41363-40021×2iKDH201..4FC;KDH200,205,206,211,22#,TRH200,21#,22#200408-201312

main41361-14201×6iKDH206..5F200709-201312

main41361-35161×6iKDH205,225,227,TRH216,219,226,228,229..4FC; KDH205..5F;KDH206..4FC200408-201312

main41361-35291×2iKDH206..5F200709-201312

9161160814

main91611-60814
