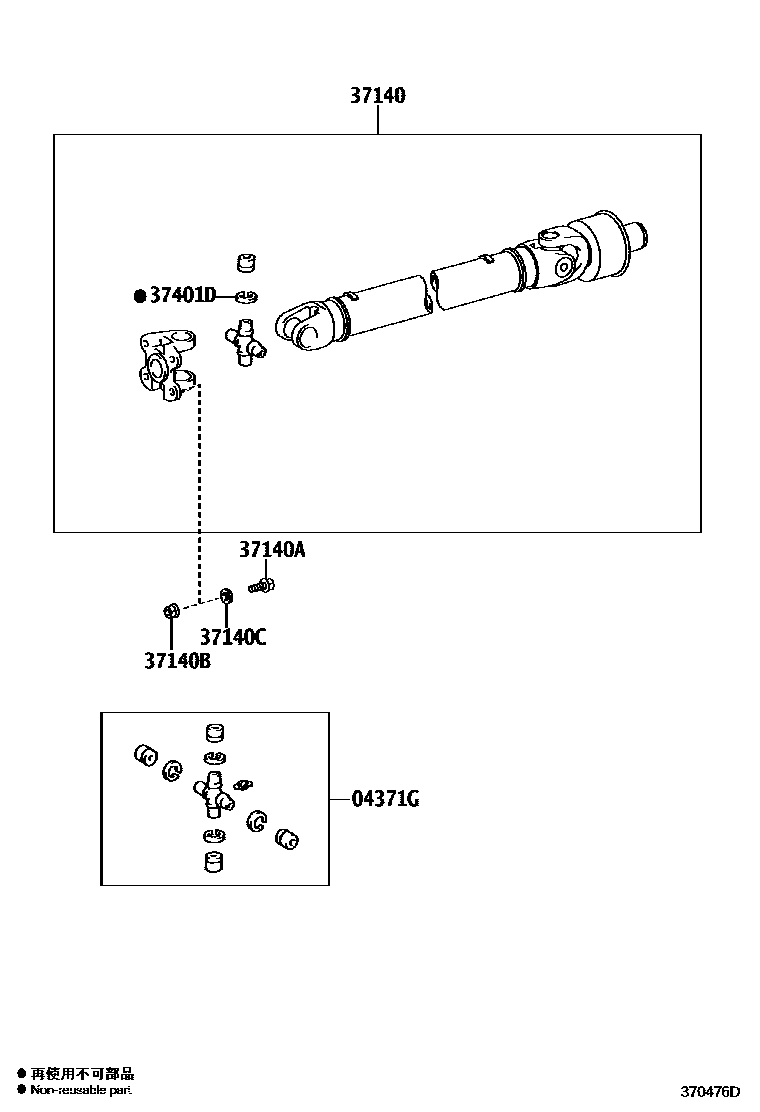

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1���� 0002 1�� 0003 1��

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-27011×2iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

37140SHAFT ASSY, PROPELLER, FRONT

main37140-26150iKDH205,206..5F200408-201312

main37140-26160iKDH205,206,225,227,TRH216,219,226,228,229..4FC200408-201312

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-10466×4iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90178-10007×4iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90560-10102×4iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-25039×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25040×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25041×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25042×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25043×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25044×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25045×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25046×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25047×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25048×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25049×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25050×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25051×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25052×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25053×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25054×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25055×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25056×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25057×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90520-25058×8iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

6 parts on this diagram · 3 diagrams in section
