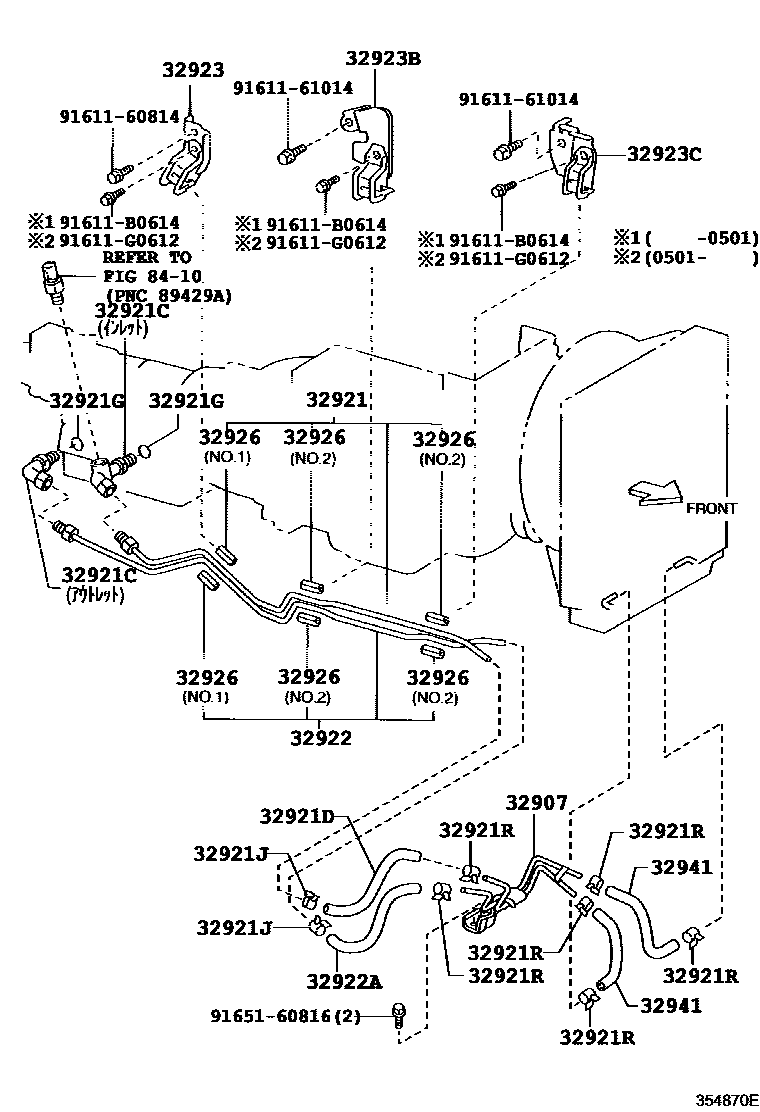

OIL COOLER & TUBE (ATM)

0001 1A45DE 0002 1A343E,A343F 0003 1A340,A340F

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-26050iKDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224..4FC200408-201312

main32907-26060iKDH205,206,225,227,TRH216,219,226,228,229..4FC200408-201312

32921TUBE, OIL COOLER INLET, NO.1

main32921-26360iTRH200..4FC200408-201312

main32921-26370iTRH21#,22#200408-201312

main32921-26380iKDH20#,22#..4FC200408-200709

main32921-26390iKDH20#,211,22#..4FC200709-201008

main32921-26400iKDH20#,211,22#..4FC201008-201312

32921CUNION(FOR OIL COOLER TUBE)

main32918-26010iTRH200..4FC200408-201312

main90407-14024iKDH20#,22#..4FC200408-200709

main90407-16009iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90407-16010iTRH200..4FC200408-201312

main90407-16012iKDH201,206,211,221,223,TRH21#,22#..4FC200408-201312

32921DHOSE(FOR OIL COOLER INLET)

main32941-26200iTRH200,21#,22#..4FC200408-201312

main32941-26210iKDH20#,211,22#..4FC201008-201312

main90445-17178iKDH20#,211,22#..4FC200408-201008

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iTRH200..4FC200408-201312

main90301-11006×2iKDH20#,22#..4FC200408-200709

main90301-11030×2iKDH201,206,211,221,223,TRH21#,22#..4FC200408-201312

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×2iKDH20#,211,22#,TRH200,21#,22#..4FC200805-201312

main90467-16022×2iKDH20#,211,22#,TRH200,21#,22#..4FC200408-200804

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×6iKDH20#,211,22#,TRH200,21#,22#..4FC200709-201312

main90467-16022×6iKDH20#,22#,TRH200,21#,22#..4FC200408-200709

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-26350iTRH200..4FC200408-201312

main32922-26360iTRH21#,22#200408-201312

main32922-26370iKDH20#,22#..4FC200408-200709

main32922-26380iKDH20#,211,22#..4FC200709-201008

main32922-26390iKDH20#,211,22#..4FC201008-201312

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-26140iKDH20#,211,22#..4FC200408-201008

main32942-26150iKDH20#,211,22#..4FC201008-201312

main90445-17073iTRH200,21#,22#..4FC200408-201312

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32909-25080iTRH200..4FC200408-201312

main32929-24060iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32909-26180iTRH200,21#,22#..4FC200408-201312

main32909-35190iKDH200,201,211,220,221,222,223..4FC200408-201312

main32909-35220iKDH205,206,225,227..4FC200408-201312

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32909-26190iKDH20#,22#..4FC200408-200609

main32909-26200iKDH20#,211,22#..4FC200610-201312

main32909-34040iTRH200,21#,22#..4FC200408-201312

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×4iTRH200,21#,22#..4FC200408-200909

main32926-30030×2iTRH200,21#,22#..4FC200408-200909

32941HOSE, OIL COOLER INLET, NO.1

main32941-26180×2iKDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224..4FC200408-201312

main32941-26190×2iKDH205,206,225,227,TRH216,219,226,228,229..4FC200408-201312

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9161160814

main91611-60814

9161161014

main91611-61014

91611B0614

main91611-B0614

91611G0612

main91611-G0612

9165160816

main91651-60816

20 parts on this diagram · 3 diagrams in section
