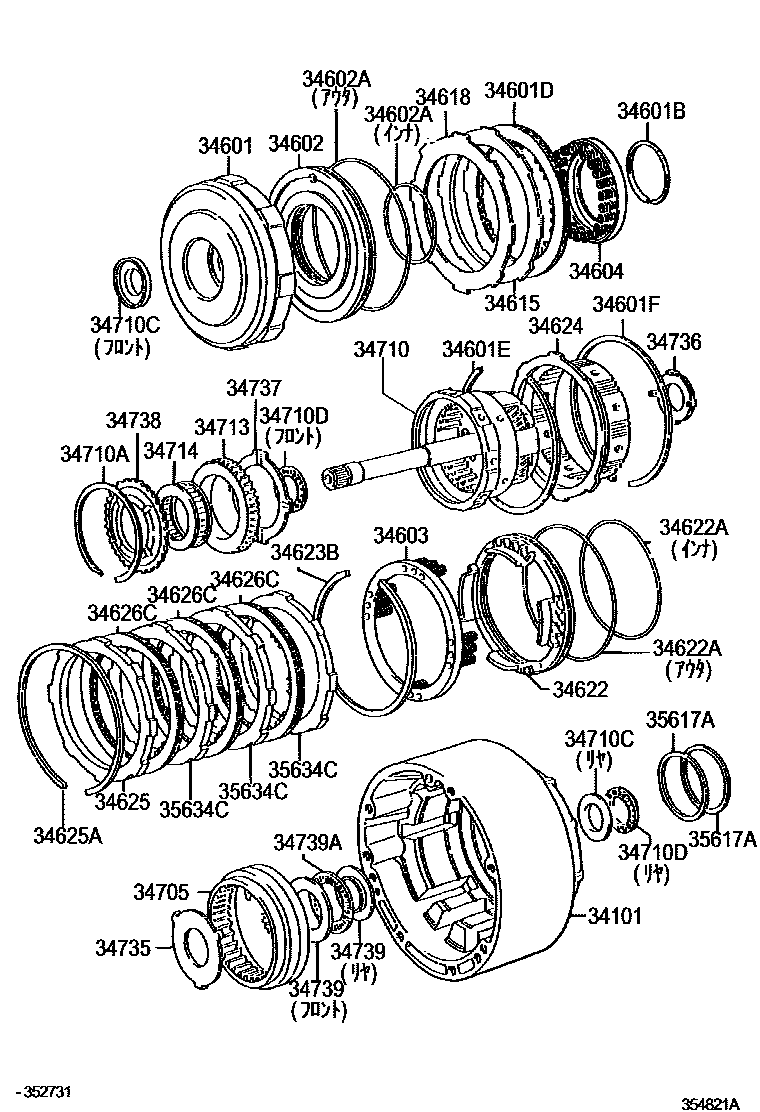

OVERDRIVE GEAR (ATM)

0001 1A45DE 0002 1A340,A340F,A343E,A343F

34101CASE SUB-ASSY, OVERDRIVE

main34101-22020iTRH200..4FC200408

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-26020iKDH20#,211,22#..4FC200408-201312

main34601-28010iTRH200..4FC200408-201312

main34601-50020iTRH21#,22#200408-201312

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iTRH200..4FC200408

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-30140iTRH200..4FC200408

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iTRH200..4FC200408-201312

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iTRH200..4FC200408-201312

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-22010iTRH200..4FC200408-201312

main34602-30020iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-56007iTRH200..4FC200408-201312

main90301-65006iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90301-99058iTRH200..4FC200408-201312

main90301-99086iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-22010iTRH200..4FC200408-201312

main34603-30030iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iTRH200..4FC200408-201312

main34604-30010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

34615FLANGE, OVERDRIVE CLUTCH

main34615-22010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34615-22020iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34615-22030iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34615-50030iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34615-50040iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34615-50050iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35634-30070iTRH200..4FC200408-201312

34618PLATE, OVERDRIVE DIRECT CLUTCH CUSHION

main34618-30010iTRH200..4FC200408

34622PISTON, OVERDRIVE BRAKE

main34622-22020iTRH200..4FC200408-201312

main34622-30090iKDH20#,22#..4FC200408-200709

main34622-30100iKDH201,206,211,221,223,TRH21#,22#..4FC200408-201312

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99088iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90301-99090iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90301-99103iTRH200..4FC200408-201312

main90301-99111iTRH200..4FC200408-201312

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iTRH200..4FC200408-201312

34624HUB, OVERDRIVE BRAKE

main34624-26010iTRH200..4FC200408

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-22020iTRH200..4FC200408-201312

main34625-22030iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34625-22040iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34625-22050iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34625-22060iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34625-50020iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34625-50030iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34625-50040iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99004iTRH200..4FC200408-201312

main90521-99027iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

34626CDISC, CLUTCH (FOR OVERDRIVE)

main35677-43010×3iTRH200..4FC200408

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30021iTRH200..4FC200408

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-22031iKDH20#,211,22#..4FC200408-201312

main34710-28030iTRH200..4FC200408-201312

main34710-60021iTRH21#,22#200408-201312

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iTRH200..4FC200408-201312

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30041iTRH200..4FC200408-201312

main35789-22010iTRH200..4FC200408-201312

main35789-30052iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iTRH200..4FC200408-201312

main90374-31005iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90374-31008iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90374-37003iTRH200..4FC200408-201312

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-28010iTRH200..4FC200408-201312

main34713-32010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-28010iTRH200..4FC200408-201312

main35791-30060iKDH200,205,220,222,225,227,TRH21#,22#..4FC200408-200908

main35791-30130iTRH21#,22#200908-201312

main35791-50010iKDH20#,211,22#..4FC200709-201312

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iTRH200..4FC200408

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iTRH200..4FC200408

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-28010iTRH200..4FC200408-201312

main34737-30030iKDH20#,211,22#..4FC200408-201312

main34737-50010iTRH21#,22#200408-201312

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-28010iTRH200..4FC200408

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iTRH200..4FC200408

main35789-22030iTRH200..4FC200408

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iTRH200..4FC200408

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-30020×2iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35617-43010×2iTRH200..4FC200408-201312

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010×2iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main34634-30010iTRH200..4FC200408-201312

main35634-30080iTRH200..4FC200408-201312

34 parts on this diagram · 2 diagrams in section
