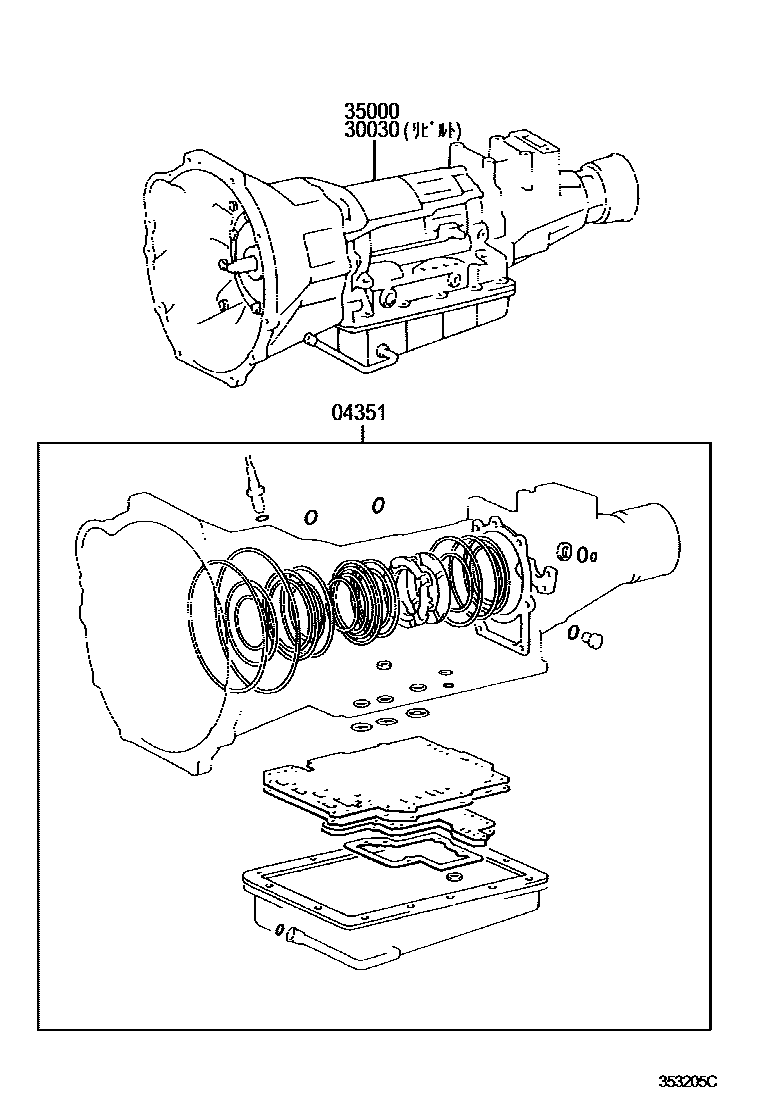

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A45DE 0002 1A340E,A343E 0003 1A340F,A343F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-25200iKDH206..4FC200709-201312

main04351-30610iTRH200..4FC200408-201312

main04351-30620iKDH200,220,222..4FC200408-200709

main04351-30630iKDH201,211,22#..4FC200709-201312

main04351-30640iKDH205,225,227..4FC200408-200709

main04351-30660iTRH211,214,221,223,224200408-201312

main04351-30670iTRH216,219,226,228,229200408-201312

30030TRANSMISSION ASSY, REBUILT

main30030-26A10iTRH216,219,226,228,229200408-201312

main30030-26A20iKDH200,220,222..4FC200408-200709

main30030-26A30iKDH205,225,227..4FC200408-200709

main30030-26A90iKDH201,211,22#..4FC200709-201008

main30030-26B00iKDH206..4FC200709-201008

main30030-26B30iKDH201,211,22#..4FC201008-201312

main30030-26B40iKDH206..4FC201008-201312

main30030-2F640iTRH200..4FC200408-201312

main30030-2F650iTRH211,214,221,223,224200408-201312

35000TRANSMISSION ASSY, AUTOMATIC

main35000-26A10iTRH216,219,226,228,229200408-201312

main35000-26A20iKDH200,220,222..4FC200408-200709

main35000-26A30iKDH205,225,227..4FC200408-200709

main35000-26A90iKDH201,211,22#..4FC200709-201008

main35000-26B00iKDH206..4FC200709-201008

main35000-26B30iKDH201,211,22#..4FC201008-201312

main35000-26B40iKDH206..4FC201008-201312

main35000-2F640iTRH200..4FC200408-201312

main35000-2F650iTRH211,214,221,223,224200408-201312

3 parts on this diagram · 3 diagrams in section
