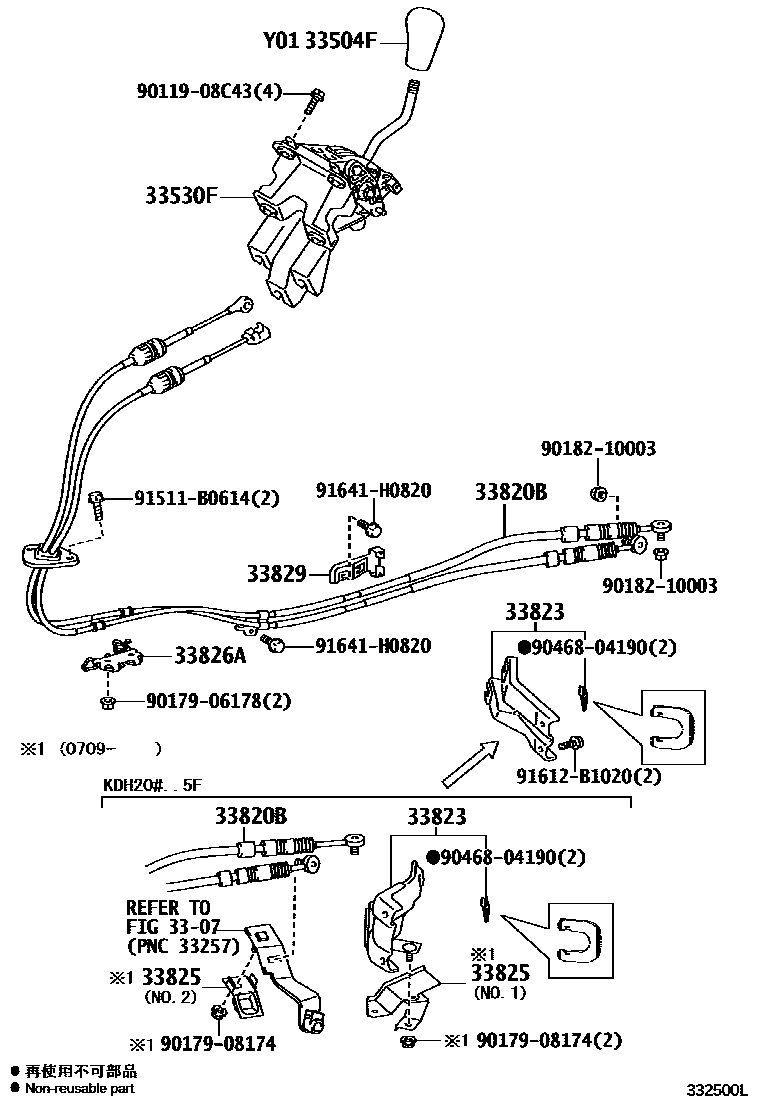

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B7iKDH20#,TRH200..5F200408-201312

DK.GRAY,TRIM1#

main33504-26020-C0iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

BLACK,TRIM1#

main33504-30310-P3iKDH20#,211,TRH200,211,216..SGL201211-201311

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-26210iTRH200..5F200408-201312

main33530-26220iKDH20#..5F200408-201312

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-26180iTRH200..4FC200408-201312

main33820-26190iKDH20#..4FC200408-201312

main33820-26200iKDH211,22#,TRH21#,22#200408-201312

main33820-26300iKDH20#..5F200408-200612

main33820-26301iKDH20#..5F200701-200708

main33820-26302iKDH20#..5F200709-201205

main33820-26303iKDH20#..5F201206-201312

main33820-26420iTRH200..5F200408-200612

main33820-26421iTRH200..5F200701-200708

main33820-26422iTRH200..5F200709-201205

main33820-26423iTRH200..5F201206-201312

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33804-26010iKDH20#..5F200408-200709

main33804-26030iTRH200..5F200408-201312

main33804-26040iKDH20#..5F200709-201312

main33823-26060iTRH200..4FC200408-201312

main33823-26070iTRH21#,22#200408-201312

main33823-26080iKDH20#,211,22#..4FC200408-201312

33825INSULATOR, TRANSMISSION CONTROL CABLE

main33825-26030iKDH20#..5F200709-201305

main33825-26031iKDH20#..5F201306

main33825-26040iKDH20#..5F200709-201106

main33825-26041iKDH20#..5F201107

33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-26010iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

main33826-26050iKDH20#,TRH200..5F200408-201312

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-26090iKDH20#,TRH200..5F200408-200609

main33829-26091iKDH20#,TRH200..5F200610

9011908C43

main90119-08C43

9017906178

main90179-06178

9017908174

main90179-08174

9018210003

main90182-10003

9046804190

main90468-04190

91511B0614

main91511-B0614

91612B1020

main91612-B1020

91641H0820

main91641-H0820

16 parts on this diagram · 3 diagrams in section
