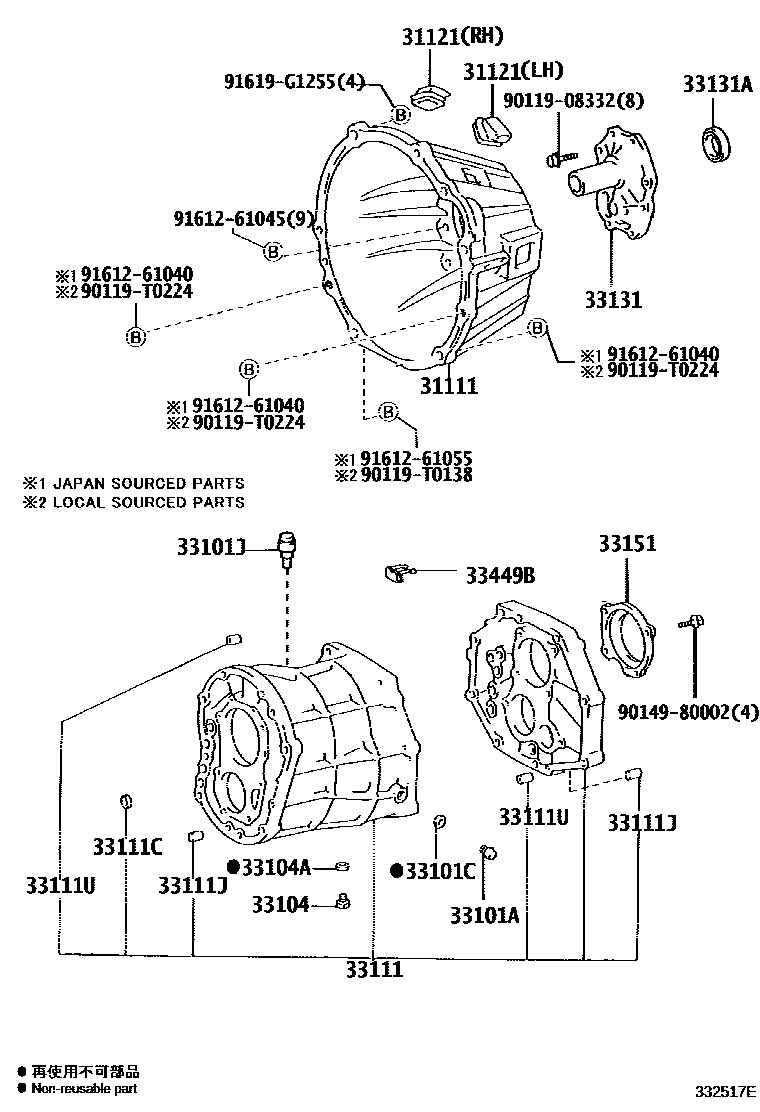

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G55 0002 1R351,R351F

31111HOUSING, CLUTCH

main31111-0K030iTRH200..5F200408-201312

main31111-26080iKDH205..5F200408-200709

main31111-26090iKDH200..5F200408-200709

main31111-26110iKDH201..5F200709-201312

main31111-26120iKDH206..5F200709-201312

31121COVER, CLUTCH HOUSING, NO.1

main31121-0K030iTRH200..5F200803

main31121-0K040iTRH200..5F200803

main31121-26020iTRH200..5F200408-200803

main31121-35020iTRH200..5F200408-200803

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006×2iKDH20#..5F; TRH200..5F200408-201312

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKDH20#..5F; TRH200..5F200408-201312

33101JPLUG, BREATHER

main90930-03085iKDH20#,TRH200..5F200408-201312

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iTRH200..5F200408

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iTRH200..5F200408

33111CASE, MANUAL TRANSMISSION

main33101-0L010iTRH200..5F200408-201312

main33101-26040iKDH201..5F200408-201006

main33101-26041iKDH201..5F201006-201312

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iKDH201..5F200408-201006

main96411-41200iKDH200,201..5F200408-201312

main96411-41800×3iKDH20#..5F200408-201312

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×2iKDH20#..5F; TRH200..5F200408-201312

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iKDH20#,TRH200..5F200408-201312

main90253-15001×4iKDH20#..5F; TRH200..5F200408-201312

33131RETAINER, BEARING, FRONT(MTM)

main33131-0K030iTRH200..5F200408-201312

main33131-35031iKDH20#..5F200408-201312

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iKDH20#..5F200408-200709

main90311-32022iKDH20#..5F200709-201312

main90311-T0021iTRH200..5F200408-201312

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K020iTRH200..5F200408-201312

main33151-35020iKDH20#..5F200408-201312

33449BMAGNET, TRANSMISSION

main33449-26010iTRH200..5F200408-201312

main33449-35030iKDH20#..5F200408-201312

9011908332

main90119-08332

90119T0138

main90119-T0138

90119T0224

main90119-T0224

9014980002

main90149-80002

9161261040

main91612-61040

9161261045

main91612-61045

9161261055

main91612-61055

91619G1255

main91619-G1255

23 parts on this diagram · 2 diagrams in section
