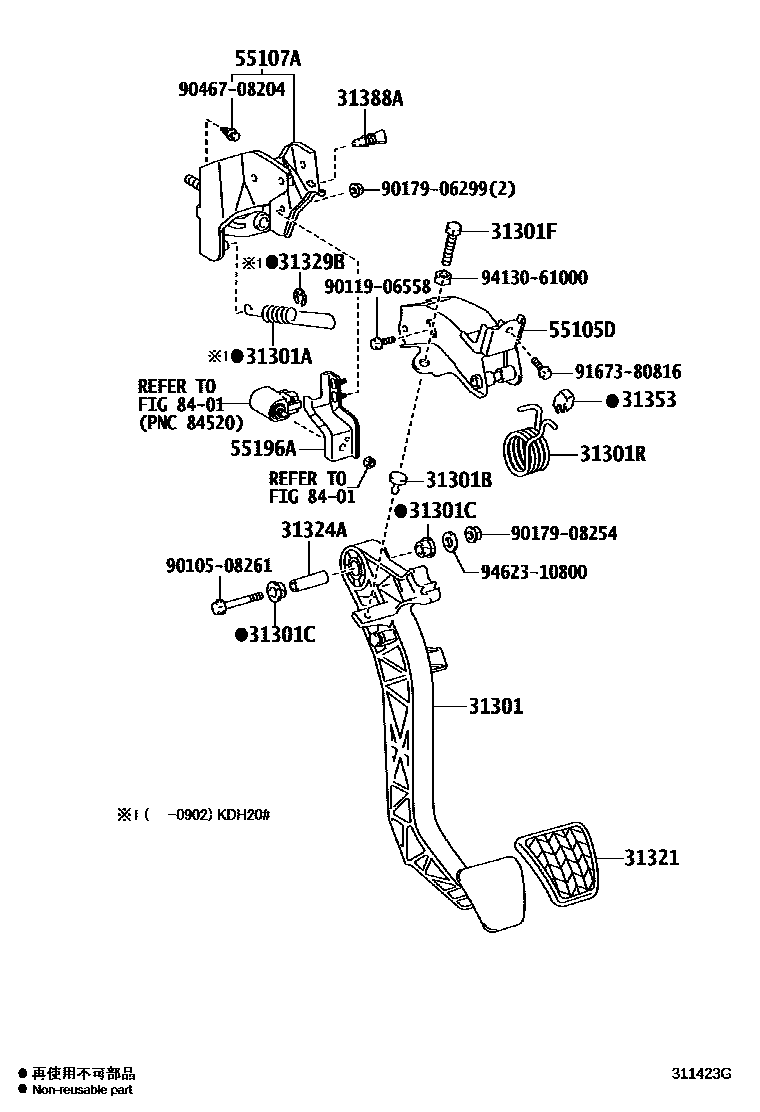

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31311-26150iKDH20#,TRH200..5F200408-201002

main31311-26151iKDH20#,TRH200..5F201003

31301ASPRING(FOR CLUTCH PEDAL)

main90507-23024iKDH20#..5F200408-200902

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06071iKDH20#,TRH200..5F200408-201312

31301CBUSH(FOR CLUTCH PEDAL)

main90386-14015×2iKDH20#,TRH200..5F200408

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKDH201,206..5F200408-201008

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03127iTRH200..5F200408

main90949-03131iKDH20#..5F200408-200902

31321PAD, CLUTCH PEDAL

main31321-52010iKDH20#,TRH200..5F200408

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-08160iKDH20#,TRH200..5F200408

31329BRING, E(FOR CLUTCH PEDAL PAWL)

main96160-00600iKDH20#..5F200408-200902

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iKDH20#,TRH200..5F200408

31388ASTOPPER, CLUTCH RELEASE SECTOR

main31388-26010iKDH20#,TRH200..5F200408

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-26010iKDH20#,TRH200..5F200408-201007

main55105-26020iKDH20#,TRH200..5F201008-201312

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-26040iKDH20#,TRH200..5F200408-201312

55196ABRACKET, CLUTCH START SWITCH MOUNTING

main55196-26020iKDH20#,TRH200..5F200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508261

main90105-08261

9011906558

main90119-06558

9017906299

main90179-06299

9017908254

main90179-08254

9046708204

main90467-08204

9167380816

main91673-80816

9413061000

main94130-61000

9462310800

main94623-10800

23 parts on this diagram · 2 diagrams in section
